RM3,350.00 RM2,847.50
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA- Please select shipping option 'Own... Read more

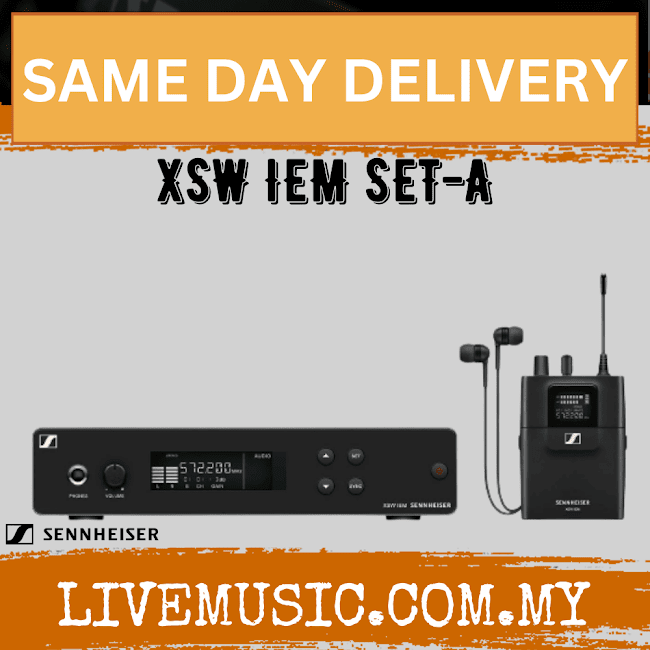

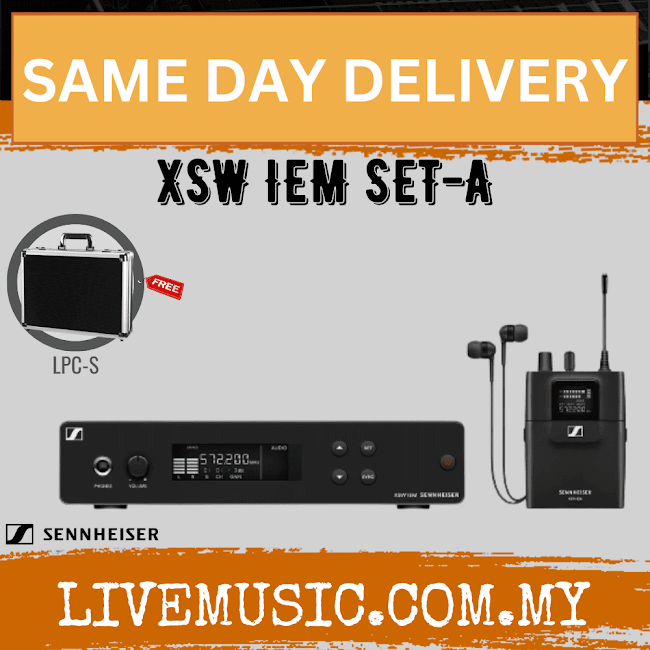

SKU: XSW IEM SET-A-A
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA
- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)
EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time
FOR STANDARD DELIVERY
Please select shipping option 'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days
Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor
Contact : 0-1-6-5-2-0-1-0-6-6
| Frequency Band | A: 476 to 500 MHz |
| Wireless Technology | Analog, UHF |
| Modulation | FM Stereo |
| Transmitting RF Power | 30 mW |
| Number of RF Channels | 960 |
| Switching Bandwidth | 24 MHz |
| Frequency Step Size | 25 kHz |
| Frequency Banks | 8 Banks with 12 Aligned and Precalculated Frequencies Each |
| Frequency Scanning | Manual |
| Max Transmitters per Band | 12 |
| Max Operating Range | 330' / 100 m (Line of Sight) |
| Nominal/Peak Deviation | ±15 kHz / ±24 kHz |
| Antenna Output | BNC Socket, 50 Ohms |
| Frequency Response | 45 Hz to 15 kHz |
| Inputs | L + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced |
| Output | 1/4" / 6.3 mm TRS, Headphones Out |
| Total Harmonic Distortion (THD) | <0.9% |
| Signal-to-Noise Ratio | ≥88 dB, at Nominal Load and Peak Deviation |
| Power Input Rating | +12 VDC |
| Current Consumption | Approximately 400 mA |
| Housing | Metal |
| Temperature Range | 32 to 104°F / 0 to 40°C |
| Dimensions | Approximately 7.9 x 5 x 1.7" / 200 x 128 x 42 mm |
| Weight | Approximately 24.7 oz / 700 g |
Receiver
| Modulation | Wideband, Stereo FM |
| Frequency Band | A: 476 to 500 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Sync Method | IR |
| Nominal/Peak Deviation | ±15 kHz / ±24 kHz |
| Squelch | 10 µV, Fixed |
| Signal-to-Noise Ratio | ≥88 dB, 1 mV, Peak Deviation |
| Total Harmonic Distortion (THD) | ≤ 1% |
| Output Level | 2 x 1.25 Veff at 16 Ohms |
| Equalization | High Boost EQ: +10 dB at 13 kHz |
| Limiter | -10 dB |
| Frequency Response | 45 Hz to 15 kHz |
| Crosstalk | Typically 45 dB (50 Hz to 10 kHz) |
| Power Supply | 2 x AA Batteries, 1.5 V |
| Nominal Voltage | 3 V |
| Housing | Plastic |
| Operating Time | Approximately 6 Hours, Depending on Volume Level |
| Temperature Range | 32 to 104°F / 0 to 40°C |
| Dimensions | 3.7 x 2.8 x 1" / 95 x 70 x 26 mm |
| Weight | 3.9 oz / 110 g, Including Batteries |
Earphones
| Transducer | Dynamic |
| Frequency Response | 40 Hz to 20 kHz |
| SPL | 106 dB, (1 kHz, 1 mW) |
| Nominal Impedance | 6 Ohms |
| Cable Length | 4.6' / 1.4 m |
| Connector | 1/8" / 3.5 mm TRS, Stereo, Gold-Plated |
| Temperature Range | 23 to 122°F / -5 to 50°C |
Packaging Info
| Package Weight | 4.61 lb |
| Box Dimensions (LxWxH) | 14.5 x 13 x 2.38" |
