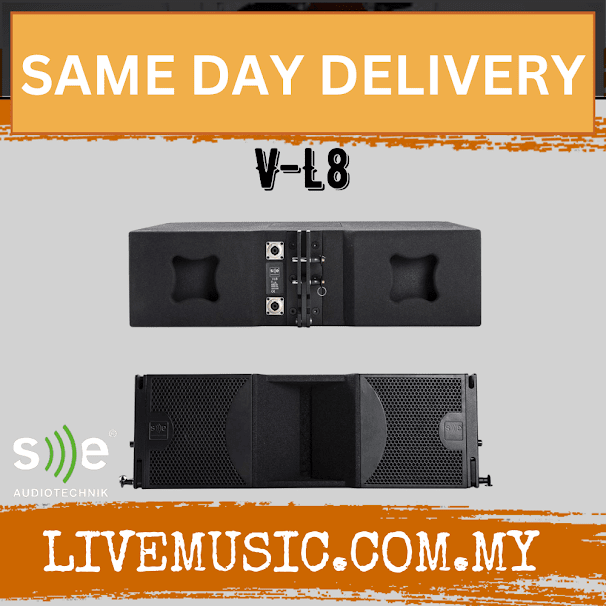

SE Audiotechnik V-L8 8" 2 Way Passive Line Array Loudspeaker (VL8 V L8)

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



The V-L8 is dual 8" vertical line source concert system with variable curvature, primarily designed for live performances from small to large indoor and outdoor venuse. The power handling is 650W RMS each top.





SPECIFICATIONS







Model:



V-L8



Type:

Dual 8" two way line array speaker

Acoustical Specifications



Frequency Range(-6dB):

70 - 19 kHz

Max. SPL(1m):

136 dB

Max Qty of rigging (12 : 1 Safety Factor, using s)))e original accessories) :

24 pcs

Vertical Dispersion(-6dB):

LF: RMS / Peak (AES): 500 W / 2000 W

HF: RMS / Peak (AES): 150 W / 600 W

Transducer



LF:

LF: 2 x 8", neodymium magnet, 2" voice coil

1× 16 Ω (2 pcs of 8Ω in series connection)

2× 250 W RMS (AES / 2 hrs)

Sensitivity(1W / 1M):

103 dB

Max. SPL(AES):

136 dB

HF:

2× 1", neodymium magnet, titanium diaphragm, 1.35" voice coil

1× 16 Ω (2 pcs of 8 Ω in series connection)

2× 75 W RMS (AES / 2 hrs)

Sensitivity(1W / 1M):

108 dB

Max. SPL(AES):

136 dB

Recommended Amplifier:

4 pcs of  V-L8 as a set

LF:

2× 1200 W / 8 Ω, Dual channel

HF:

2× 800 W / 8 Ω, Dual channel

Recommended Crossover Frequency



LF / HF:

1.6 kHz

Enclosure

18 mm birch plywood, polyurethane coating

Rigging System

6061 Aluminium, SUS 630 sainless steel safety pin, 12:1 safety factor

Input Interface

Neutrik®Speakon 2×NL-4

pins+1/-1 LF

pins+2/-2 HF

Dimensions (W×H×D):

740 x 247 x 467 mm

Net Weight:

27.5 kg

SE Audiotechnik V-L8 8" 2 Way Passive Line Array Loudspeaker (VL8 V L8)

Product form

RM6,710.00  RM6,039.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: V-L8

    Same Day Delivery via Lalamove
    Joe

    Can't decide? Chat With Us.

    Our sales team is ready to help you find the right fit.

    Joe · Sales & Support

    +60 16-215 2653

    Why Choose Us!
    Shipping Delivery details and timelines. Inspected Before Delivery Every item is checked before it ships. Price Match Found it cheaper? Let us know. Warranty Warranty coverage and how to claim. Installment Flexible ways to pay over time. Our Background Supporting Local musicians, supported by the local community.

    Description

    SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

    - Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
    - Third party pickup charges to be beared by buyer
    - Kindly put a remark for self collection / Lalamove in your order
    - installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

    EAST MALAYSIA ORDERS
    - Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

    FOR STANDARD DELIVERY
    Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
    *Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

    Waze: Live Music Centre
    No 20 & 20-1 & 22 & 22A,
    Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

    Contact : 0-1-6-5-2-0-1-0-6-6



    The V-L8 is dual 8" vertical line source concert system with variable curvature, primarily designed for live performances from small to large indoor and outdoor venuse. The power handling is 650W RMS each top.





    SPECIFICATIONS







    Model:



    V-L8



    Type:

    Dual 8" two way line array speaker

    Acoustical Specifications



    Frequency Range(-6dB):

    70 - 19 kHz

    Max. SPL(1m):

    136 dB

    Max Qty of rigging (12 : 1 Safety Factor, using s)))e original accessories) :

    24 pcs

    Vertical Dispersion(-6dB):

    LF: RMS / Peak (AES): 500 W / 2000 W

    HF: RMS / Peak (AES): 150 W / 600 W

    Transducer



    LF:

    LF: 2 x 8", neodymium magnet, 2" voice coil

    1× 16 Ω (2 pcs of 8Ω in series connection)

    2× 250 W RMS (AES / 2 hrs)

    Sensitivity(1W / 1M):

    103 dB

    Max. SPL(AES):

    136 dB

    HF:

    2× 1", neodymium magnet, titanium diaphragm, 1.35" voice coil

    1× 16 Ω (2 pcs of 8 Ω in series connection)

    2× 75 W RMS (AES / 2 hrs)

    Sensitivity(1W / 1M):

    108 dB

    Max. SPL(AES):

    136 dB

    Recommended Amplifier:

    4 pcs of  V-L8 as a set

    LF:

    2× 1200 W / 8 Ω, Dual channel

    HF:

    2× 800 W / 8 Ω, Dual channel

    Recommended Crossover Frequency



    LF / HF:

    1.6 kHz

    Enclosure

    18 mm birch plywood, polyurethane coating

    Rigging System

    6061 Aluminium, SUS 630 sainless steel safety pin, 12:1 safety factor

    Input Interface

    Neutrik®Speakon 2×NL-4

    pins+1/-1 LF

    pins+2/-2 HF

    Dimensions (W×H×D):

    740 x 247 x 467 mm

    Net Weight:

    27.5 kg
