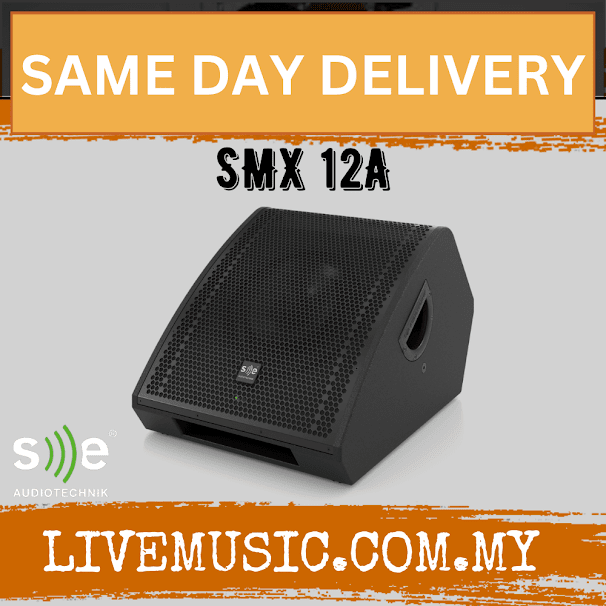

Model: |
SMX 12A |
ACOUSTICAL |
|
Frequency range (-3 dB)*: |
65 Hz – 17 kHz |
Frequency range (-10 dB)*: |
60 Hz – 20 kHz |
Coverage angles (-6dB) [H x V]: |
80° x 80° |
Maximum Peak SPL *: |
129 dB |
System type: |
2-way coaxial system |
Transducers: |
Coaxial driver with: LF: 1 x 12″ driver (3″ voice coil) HF: 1″ compression driver (1.7″ voice coil) |
Enclosure type: |
Vented box |
AMPLIFICATION |
|
Type: |
2 channel, class-D with SMPS |
Total power **: |
484 W |
Output power (per channel): |
LF: 416 W @ 6.5 Ω
HF: 68 W @ 14 Ω
|
Protection: |
Short circuit, overheating, overcurrent, 2-band limiter |
Connectors: |
Input Signal: balanced XLR 3-pin female or balanced 6.5 mm TS jack
Link output: balanced XLR 3-pin male
Power input: powerCON® 20A
Power link output: powerCON® 20A
|
Operating Voltage: |
100 VAC – 240 VAC, 50 – 60 Hz |
Wiring: |
Pin N: Neutral
Pin L: Conductor
Pin E: Ground
|
Input sensitivity: |
0 dBu |
DSP: |
48 kHz/24-bit with extended dynamics
Processing latency: 1.1 ms
|
Processing: |
Level, factory EQ presets |
User controls: |
Power: ON/OFF switch
Level: 8-position rotary knob (-50, -20, -10, -4, -2, 0, +2, +4)
DSP presets: 8-position rotary knob
|
MECHANICAL |
|
Product dimensions [H x W x D] (Including rigging): |
368 x 450 x 575 mm |
Net weight: |
22 kg |
Packaging dimensions [H x W x D]: |
447 x 535 x 660 mm |
Total weight: |
25 kg |
Cabinet: |
15 mm plywood |
Cabinet finishing: |
Black polyurea coating |
Grille: |
Powder coated perforated steel |
Hardware: |
1 top and 2 side handles embedded in cabinet
Rubber feet
2 x M10 for U-bracket mounting
|
ACCESSORIES |
|
U-bracket: |
SMX 12UB |
M10 screw to 35mm pole socket: |
PS35 |
Transport cover: |
SMX 12TC |
All product specifications are subject to change without prior notice. |
* Measured with 12 dB Crest factor Pink Noise, Whole space
** Total power value is the sum of all individual channel output power
|
