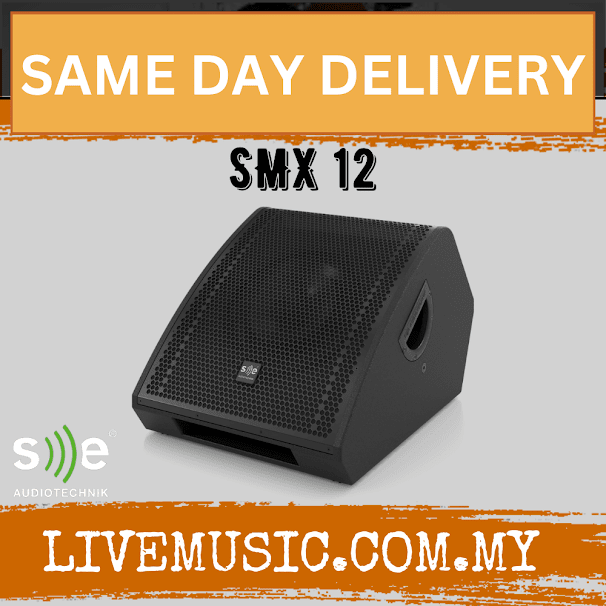

The SMX 12 is a compact, extremely versatile 2-way passive coaxial monitor in bass reflex design. Thanks to the built-in 12″-LF with powerful 3″ voice coil and a 1″-HF with 1.7″ voice coil, the SMX 12 monitor is powerful and assertive in any mix and has a harmonious, neutral sound character. This allows any musician to hear themselves better and bring out every nuance of their performance. The clearly audible signal in the 80° x 80° coverage angle is easy on any singer’s voice – the more precise they hear themselves, the less effort is required for their performance. At the same time, the SMX 12 monitor remains uncomplicated and feedback-proof.



Specifications



Model:                                                                         SMX 12
ACOUSTICAL
Frequency range (-3 dB)*: 125 Hz – 16 kHz
Frequency range (-10 dB)*: 60 Hz – 20 kHz
Coverage angles (-6dB) [H x V]: 80° x 80°
Nominal impedance: LF: 8 Ω HF: 16 Ω
Sensitivity *: 99 dB
Peak power: 1600 W
Continuous power **: 400 W
Maximum Peak SPL ***: 136 dB
System type: 2-way coaxial system
Crossover type: LPF: Butterworth 2nd Order
HPF: Butterworth 3th Order
Crossover frequency: 1.3 kHz
Transducers: Coaxial driver with:
LF: 1 x 12″ driver (3″ voice coil)
HF: 1″ compression driver (1.7″ voice coil)
Enclosure type: Vented box
Connectors: Input signal: 1 x Neutrik speakON® NL4
Link output: 1 x Neutrik speakON® NL4
Wiring: Pins 1+ / 1- : driver
MECHANICAL
Product dimensions [H x W x D] (Including rigging): 368 x 450 x 575 mm
Net weight: 19 kg
Packaging dimensions [H x W x D]: 447 x 535 x 660 mm
Total weight: 23 kg
Cabinet: 15 mm plywood
Cabinet finishing: Black polyurea coating
Grille: Powder coated perforated steel
Hardware: 1 top and 2 side handles embedded in cabinet
Rubber feet
2 x M10 for U-bracket mounting
ACCESSORIES
U-bracket: SMX 12UB
M10 screw to 35mm pole socket: PS35
Transport cover: SMX 12TC
All product specifications are subject to change without prior notice.

* 1 Whole space, 1W / 1m, on-axis
** According to EIA-426B Standard
*** Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor
