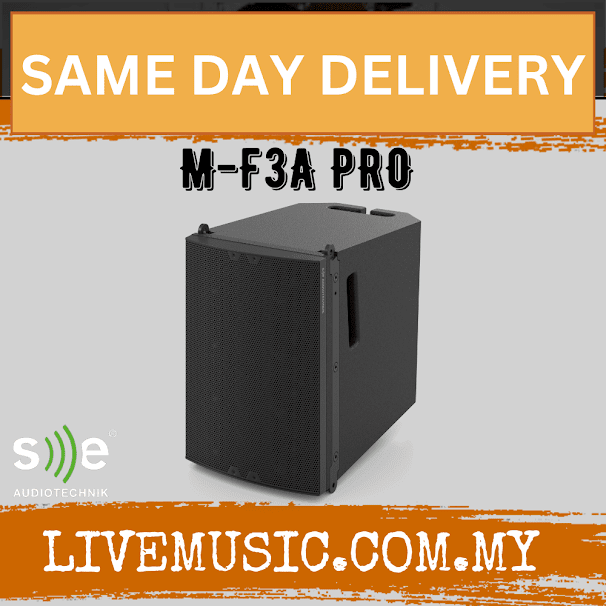

SE Audiotechnik M-Line M-F3A PRO Active Line Array Element - Black (MF3APRO M F3A PRO)

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6

Features

Dome Tweeters

Each M-F3A PRO is equipped with eight 2.8" woofers and seven 1" dome tweeters. To reduce the dimensions of the cabinet and ensure high-fidelity sound, the dome tweeters form the centerpiece of its unique sound. It allows you to deliver hi-fi sound to your audience in a compact size with plenty of power.



Integrated DSP

Each M-F3A PRO is equipped with a 600W (300W HF and 300W MF) Class-D power amplifier with switching power supply for minimum weight and maximum flexibility anywhere in the world. In addition, our built-in 24-bit/48 kHz DSP processor provides signal filtering and ensures maximum driver protection with minimum error rate.



EASE® Ready

AFMG® EASE® and EASE® Focus 3 GLL files are available for the entire M-F3A PRO family. This allows users to simulate and calculate various parameters such as range, sound pressure level, frequency response, spread angle, delay times and more. The corresponding files are available in the Downloads section.

EASE® and AFMG® are registered trademarks of AFMG Technologies GmbH.



Specifications

Model:                                                                                                         M-F3A PRO

ACOUSTICAL
Frequency range (-3 dB): 140 Hz – 20 kHz
Frequency range (-10 dB): 100 Hz – 20 kHz
Coverage angles (-6dB) [H x V]: 120° x 16°
Maximum Peak SPL *: 129 dB
System type: 2-way active
Crossover frequency: 1.9 kHz
Transducers: MF: 8 x 2.8″ drivers
HF: 7 x 1″ dome tweeters
Enclosure type: Vented box
AMPLIFICATION
Type: 2 channel, class-D with SMPS
Total Power **: 600 W
Output power per channel: MF: 300 W
HF: 300 W
Protection: Short circuit, overheating, overcurrent
Connectors: Input signal: balanced XLR 3-pin female
Link output: balanced XLR 3-pin male
Power input: powerCON® 20A
Power link output: powerCON® 20A
Wiring: Pin N: Neutral
Pin L: Conductor
Pin E: Ground
Input sensitivity: 0 dBu
DSP: 48 kHz/24 bit with extended dynamics
Processing latency: 1.1 ms
Processing: Level, factory EQ presets
User controls: Power: On/Off switch
Level: 8-position rotary knob (-50, -20, -10, -6, -3, -2, -1, 0)
Line units: 8-position rotary knob (1 – 8+)
MECHANICAL
Product dimensions [H x W x D] (Including rigging): 317 x 265 x 359 mm
Net weight: 8.3 kg
Packaging dimensions [H x W x D]: 388 x 290 x 440 mm
Total weight: 9.5 kg
Cabinet: 12 mm plywood
Cabinet finishing: Black or white polyurea coating
Grille: Powder coated perforated steel
Hardware: Rear handle in 12 mm plywood
plus side grips embedded in cabinet
Rigging: Three-point rigging system, 3 x SE Audiotechnik® 6 mm locking pins
Splay angles: 0º, 1º, 2º, 3º, 4º, 6º, 8º
ACCESSORIES
Bumper frame: M-F3A BF
U-bracket: M-F3A UB
Flight case (4 units): M-F3A FC
Carry-on bag (1 unit): M-F3A CTB
Transport kart (up to 4×4 units): M-F3A PRO TK44
Line rain cover (8, 12 or 18 units): M-F3A PRO FRC 8 / 12 / 18
All product specifications are subject to change without prior notice. * Measured with 12 dB Crest factor Pink Noise, whole space
** Total power value is the sum of all individual channel output power
