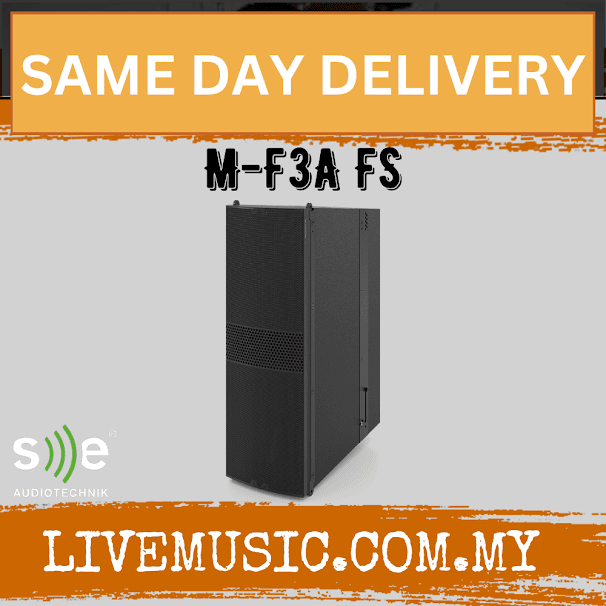

SE Audiotechnik M-Line M-F3A FS 9" elipsoid woofer, active flysub with DSP - Black (MF3AFS M F3A FS)

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6

Features

Compact woofers

Each M-F3A FS delivers a powerful, deep bass foundation. Two 6×9″ oval woofers are fitted in order to keep the cabinet as small as possible and at the same time to accommodate as much diaphragm area as possible on the narrow front. True to our motto “Ultra compact, high performance“.

Integrated DSP

Each M-F3A FS is equipped with an 800W Class-D power amplifier with switching power supply for minimum weight and maximum flexibility anywhere in the world. In addition, our built-in 24bit/48kHz DSP processor provides signal filtering and ensures maximum driver protection with minimal error rate.

Ease®

AFMG® and EASE® Focus 3 GLL files are available for the entire M-F3A PRO family. This allows users to simulate and calculate various parameters such as range, sound pressure level, frequency response, spread angle, delay times and more.

EASE® and AFMG® are registered trademarks of AFMG Technologies GmbH.

Specifications

Model: M-F3A FS
ACOUSTICAL
Frequency range (-3 dB): 60 Hz – 103 Hz
Frequency range (-10 dB): 52 Hz – 143 Hz
Coverage angles (-6dB) [H x V]: Omnidirectional
Maximum Peak SPL *: 127 dB
System type: 1-way active system
Crossover frequency: –
Transducers: 2 x 6″ by 9″ drivers
Enclosure type: Vented box
AMPLIFICATION
Type: Single channel, class-D with SMPS
Total Power **: 800 W
Output power per channel: MF: 300 W
HF: 300 W
Protection: Short circuit, overheating, overcurrent
Connectors: Input signal: balanced XLR 3-pin female
Link output: balanced XLR 3-pin male
Power input: powerCON® 20A
Power link output: powerCON® 20A
Wiring: Pin N: Neutral
Pin L: Conductor
Pin E: Ground
Input sensitivity: 0 dBu
DSP: 48 kHz/24 bit with extended dynamics
Processing latency: 1.1 ms
Processing: Factory and user presets, EQ, delay, phase inversion
User controls: Power: ON/OFF switch DSP: display with digital encoder
MECHANICAL
Product dimensions [H x W x D] (Including rigging): 651 x 265 x 430 mm
Net weight: 23 kg
Packaging dimensions [H x W x D]: 743 x 310 x 530 mm
Total weight: 25 kg
Cabinet: 15 mm plywood
Cabinet finishing: Black or white polyurea coating
Grille: Powder coated perforated steel
Hardware: Top handle embedded in cabinet
Rigging: Four-point rigging system
4 x SE Audiotechnik® 6 mm locking pins
Splay angles: 0º, 1º, 2º, 3º, 4º, 5º, 6º, 7º, 8º
ACCESSORIES
Bumper frame: M-F3A FS BF
4 to 3 point adapter: M-F3A FA34
Amplifier rain cover P801DL RC
All product specifications are subject to change without prior notice. * Measured with MF3AP preset ** Measured with 12 dB Crest factor Pink Noise, whole space
