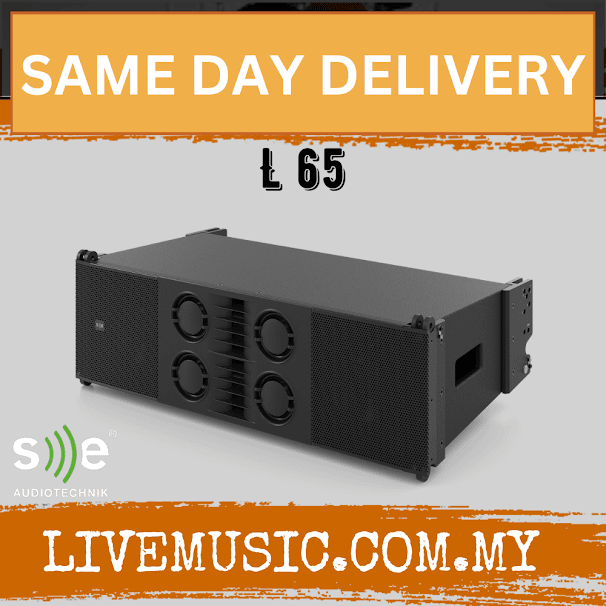

SE Audiotechnik L-line L 65 3-Way Passive Line Array Loudspeaker - Black (L65 L-65)

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



The L 65 performs great in every application! This passive 3-way line array is a reliable, scalable all-rounder for install and mobile applications. With an SPL of 139 dB at a weight of less than 23 kg, the sound is massive and sounds in every frequency range homogeneous and great. Rigging is easy ‒ the integrated four-point rigging system allows for safe and uncomplicated suspension.

The L 65 features a passive 3-way system ensuring linear transmission in the crossover frequency range and optimized power performance.

The drivers (LF: 2 x 6.5″, MF: 4 x 3.5″ HF: 2 x 1″) provide an assertive, neutral sound across the entire frequency range. Thanks to the passive construction, you can use up to four L 65 on a single power amplifier channel. This makes the combination of L 65 and LA 10.4 D a cost-effective system.

We developed the L 65 in Germany and matched all components to one another precisely to deliver a wide frequency range and high maximum sound pressure with minimal distortion. With their tough outer skin, low weight and fast array assembly and disassembly, the L 65 is ideal for fixed and mobile installations and also a great tour companion.

Its homogeneous sound characteristics as well as mechanical and acoustical design can perfectly combine with other elements of the L-Line. The super smart inline concept holds the opportunity to add L 35 as downfills by using a simple under frame bumper. Adding the L-Line flyable subwoofers guarantee for rich and powerful lows



Features

Great performance

The symmetrical layout generates a homogeneous horizontal coverage. Equipped with two 6.5” low frequency drivers, four 3.5” mid-frequency drivers and two 1” high-frequency drivers the L 65 can reach up to 139 dB of sound pressure. The acoustical and electrical design ensures optimized performance throughout the entire frequency range from 60 Hz to 18 kHz.

Fast assembly

Save valuable time! The integrated four-point rigging system enables you to build suspended line arrays fast with very low effort.

Lightweight

22.7 kg of weight the L 65 line array cabinet is easy to handle and supports the lightweight system approach of the complete L-Line.

Versatile and flexible

With the L 65‘s passive crossovers, fewer amplifier channels are required to setup a full line array system. L 65 is half as tall as the L 65 FS and twice as tall as our compact L 35. With the four-point rigging system and accessories, it is easy to integrate L 65 into existing systems.



Specifications

Model: L 65
ELECTRO-ACOUSTICAL
Frequency range (-3 dB)*: 95 Hz – 17.5 kHz
Frequency range (-10 dB)*: 60 Hz – 18 kHz
Coverage angles (-6dB) [H x V]: 100° x 20°
Nominal impedance: 12 Ω
Sensitivity *: 103 dB
Peak power: 1000 W
Continuous power **: 250 W
Maximum Peak SPL ***: 139 dB
System type: 3-way passive system
Crossover frequency: MF: 400 Hz
HF: 1.8 kHz
Transducers: LF: 2 x 6.5″ woofers (2″ voice coil)
MF: 4 x 3.5″ drivers (1″ voice coil)
HF: 2 x 1″ compression drivers (1.4″ voice coil)
Enclosure type: Vented box
Connectors: 1x Input signal
1x Link output
Neutrik speakON® NL4
Wiring: Pins 1+/1- (both NL4): drivers
Pins 2+/2- (both NL4): link signal
MECHANICAL
Product dimensions [H x W x D] (Including rigging): 237 x 766 x 383 mm
Net weight: 22.7 kg
Packaging dimensions [H x W x D]: 363 x 810 x 480 mm
Total weight: 25 kg
Cabinet: 12 mm plywood with die-cast aluminum front
Cabinet finishing ****: Black or white polyurea coating
Grille: Powder coated perforated steel
Hardware Two side handles in plywood embedded in cabinet
Two rear heatsink panels
Rigging: Four-point rigging system: two front and two rear 8 mm SE Audiotechnik® locking pins
Splay angles: 0º, 1º, 2º, 3º, 4º, 6º, 8º
Stacking: Two-point SE Audiotechnik® stacking system
ACCESSORIES
Bumper frame: L 65 BF
Under frame adapter: L 65 UFB
All product specifications are subject to change without prior notice. * Whole space, 1W / 1m, on axis (depending on amplifier preset)
 ** According to EIA-426B Standard (based on RMS Voltage)
 *** Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor
 **** White cabinet finish on request
 ***** Hardware and technical data of outdoor versions can be different

Read more
