RM3,520.00 RM3,168.00
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA - Please select shipping option 'Own... Read more

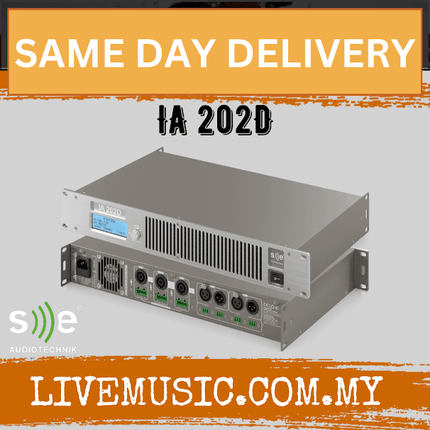

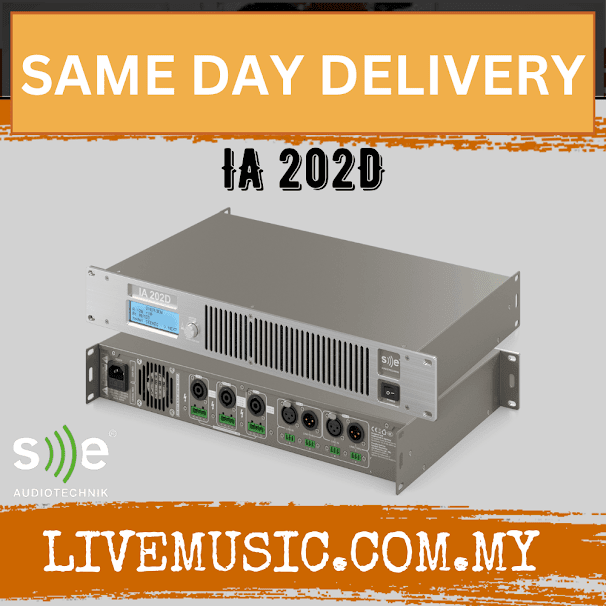

SKU: IA 202D
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA
- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)
EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time
FOR STANDARD DELIVERY
Please select shipping option 'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days
Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor
Contact : 0-1-6-5-2-0-1-0-6-6
The necessary power is provided by two 2-channel Class D power amplifiers optimally tuned to the I-Line column speakers – the IA 202D with 2x 250 W at 8 O and the IA 402D with either 2x 200 W at 8 O or 2x 400 W at 4 O. The built-in 24bit/48kHz DSP processor supplies all I-Line speakers with customised and precise filter, EQ and limiter settings. A rotary push-button on the front panel conveniently controls preset speaker presets, delay and other functions. This ensures fast, uncomplicated and carefree system setup and tuning. Both amplifiers operate the speakers remarkably quietly – made possible by a sensor-controlled fan, an aerodynamically optimised front to back airflow, and a very low idle power. Ideal for quiet environments! The I-Line amplifiers are equipped with the three most common analogue input and output connectors. 2-channel XLR inputs with link outputs in conjunction with Phoenix MSTB 3-pin inputs cover the majority of all input requirements. Maximum flexibility at the outputs is provided by 3x Neutrik speakON® connectors in parallel to 4-pin Phoenix MSTB connectors.
IA 202D power amplifier is equipped with 3 most widely used analog input and output connections in professional audio. 2 channel XLR inputs with link outputs together with Phoenix MSTB 3-pin inputs will cover most of the input needs. Outputs are equipped with 3x Neutrik speakON® connectors in parallel with 4-pin Phoenix MSTB connectors for maximum flexibility.
24bit/48kHz DSP processor provides all I-Line speakers with correct and precise filter, EQ and limiter settings. As always – good sounding and well protected speaker systems are the ultimate aim of the SE AUDIOTECHNIK engineering team. Built-in speaker presets, EQ control, delay and other features allow for an easy, cost-effective and quick system setup and tuning.
Specifications
| Model: | IA 202D |
|---|---|
| ELECTRICAL | |
| Type: | Class-D, Switched Mode Power Supply |
| Channels: | Two |
| Rated Output Power (1kHz, THD: <1%) *: | 2 x 250 W @ 8 O 2 x 150 W @ 16 O |
| Minimum load impedance: | 8 O |
| Damping factor: | > 200 |
| Input impedance: | 10 kO balanced/unbalanced |
| Maximum input level: | +20 dBu |
| SNR Line In to Spk out: | 90 dB |
| Noise Floor: | -52 dBu (A-weighted) @4 dBu sensitivity, 0 dB master attenuation |
| Channel crosstalk: | 64 dB |
| THD+N: | < 0.1% @ 1 W,1 KHz; < 0.3% @ 1 dB below rated power |
| DSP | 48 kHz/24 bit DSP processor Processing latency: 1.1 ms |
| Protection: | Short circuit, overheating, overcurrent |
| Cooling: | Sensor controlled fan Front-to-Back air flow |
| Power efficiency: | Up to 76% |
| Power consumption (both PowerCON® summed): | Idle: 29 W Full Power: 600 W |
| Operating voltage range | 100 – 240 VAC 50/60 Hz |
| HARDWARE | |
| Screen: | LCD, 4×20 symbol alpha-numeric |
| User controls: | Control encoder with push-button, Power On |
| Input signal connectors: | XLR-3 female line-level inputs XLR-3 male link outputs Phoenix MSTP 3-pin inputs and link outputs |
| Output signal connectors: | Neutrik SpeakON® NL4 outputs Phoenix Contact MSTB 4-Pin outputs |
| Power connector: | IEC C14 |
| DSP Features: | Level, Parametric EQ, Channel Delay up to 700 Samples ˜ 14,6 ms ˜ 5 m/16,4 ft (Ch. A+B mode: up to 1400 Samples ˜ 29,2 ms ˜ 10 m/32,8 ft), Phase, Input Sensitivity, RMS Limiter, Peak Limiter, IIR/FIR Filtering |
| Configuration handling: | Loading of factory presets provided by SE Saving and recalling of user presets |
| Monitoring: | Temperatures |
| MECHANICAL | |
| Product Dimensions [H x W x D]: | 66 x 483 x 256 / 1.5 RU |
| Net weight: | 4.7 kg |
| Packaging dimensions [H x W x D]: | 143 x 588 x 380 mm |
| Total weight: | 7.25 kg |
| Cabinet: | Aluminum front panel, steel housing |
| Rack mounting:Rack mounting: | Four frontal 6 mm holes at sides |
| Operating ambient temperature range: | [0°C ; 40°C] |
| Storage temperature range: | [-40°C ; 70°C] |
