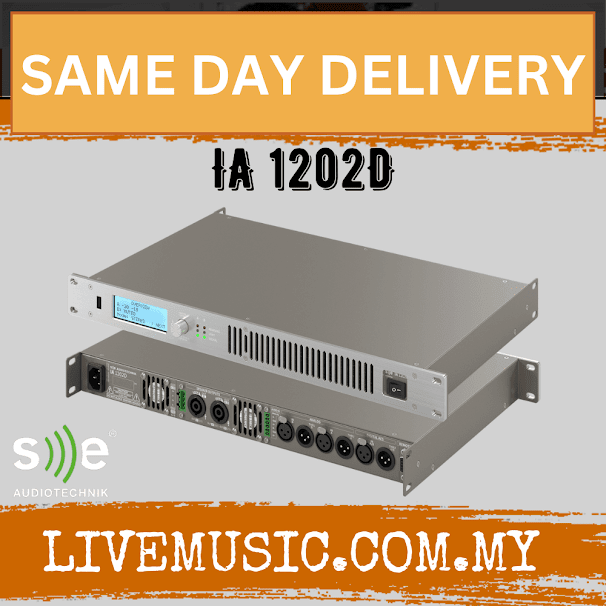

The IA 1202D is a powerful 2-channel installation amplifier with a high level of efficiency. It delivers up to 2x 1,800 watts into 2 ohms or up to 1x 3,600 watts into 4 ohms in bridged mode. Thanks to the SE AUDIOTECHNIK amplifier architecture, the IA 1202D can be used in demanding installations with high power requirements as well as in live sound applications. The integrated DSP and preset library enable simple integration and system configuration. This allows to create perfect sound reinforcement solutions flexibly and modularly with little effort.
Every parameter of the IA 1202D can be set using a touch dial and an LCD display. Factory device and speaker presets help to set up the system. Updates and backups can be made via the USB port.
Audio signals can be connected via the digital AES/EBU and analogue inputs and outputs. Speakers are connected via speakON® or Phoenix. The Phoenix analogue input is also particularly practical for installation applications.
The IA 1202D features the proven SE AUDIOTECHNIK DSP platform and offers the option of adjusting the level, EQ, and delay settings for system tuning. The integrated presets already take over a large part of the basic settings for various setups.
Thanks to the extensive dynamic range, the linear frequency response and the high signal-to-noise ratio, the IA 1202D pro audio amplifier impresses with an authentic and powerful sound projection with up to 2x 1,800 watts at 2 O or 1x 3,600 W (BTL) at 4 O.
SPECIFICATIONS
| Model: | IA 1202D |
|---|---|
| ELECTRICAL | |
| Type: | Class-D, Switched Mode Power Supply |
| Channels: | Two |
| Rated Output Power (1kHz, THD: <1%)*: | 2x 1,800 W @ 2 O 2 x 1,200 W | 1 x 3,600 W (BTL) @ 4 O 2 x 800 W | 1 x 2,400 W (BTL) @ 8 O |
| Minimum load impedance: | 2 O (Stereo) | 4 O (BTL) |
| Frequency response (±1 dB)**: | 20 Hz to 20 kHz |
| Damping factor: | > 500 |
| Input impedance: | 10 kO balanced/unbalanced |
| Maximum input level: | +22 dBu |
| SNR Line In to Spk out: | 97 dB |
| Noise Floor: | -57 dBu (A-weighted @4 dBu sensitivity) |
| Channel crosstalk: | 76 dB |
| THD+N: | < 0.1% @ 1 W,1 KHz; < 0.3% @ 1 dB below rated power |
| DSP | 48 kHz/24 bit DSP processor Processing latency: 1.1 ms |
| Protection: | Short circuit, overheating, overcurrent |
| Power efficiency: | Up to 84% |
| Cooling: | Sensor controlled fan Front-to-Back air flow |
| Power consumption (both PowerCON® summed): | Idle: 35 W Full power: 1200 W |
| Operating voltage range | 100 – 240 VAC 50/60 Hz |
| HARDWARE | |
| Screen: | LCD, 4×20 symbol alpha-numeric |
| User controls: | Control encoder with push-button, Power On |
| Input signal connectors: | XLR-line-level inputs and link outputs XLR AES/EBU input and output Phoenix MSTP inputs |
| Output signal connectors: | Neutrik SpeakON® NL4 outputs Phoenix Contact MSTB 4-Pin outputs |
| Power connector: | IEC-60320 C14 |
| SOFTWARE | |
| DSP Features: |
Levels, Param. EQ, Delay, Phase, Input Sensitivity, RMS & Peak Limiter, Power Limiter (IA 1202D), IIR/FIR Filtering |
| Configuration handling: | Loading of factory presets provided by SE Saving and recalling of user presets |
| Monitoring: | Temperatures |
| MECHANICAL | |
| Product Dimensions [H x W x D]: | 44 x 483 x 256 mm / 1 RU |
| Net weight: | 5 kg |
| Packaging dimensions [H x W x D]: | 143 x 588 x 380 mm |
| Total weight: | 7.6 kg |
| Cabinet: | Aluminium front panel, steel body |
| Rack mounting: | Four frontal 6 mm holes |
| Operating ambient temperature range: | [0°C ; 40°C] |
| Storage temperature range: | [-40°C ; 70°C] |
