RM9,030.00 RM8,127.00
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA - Please select shipping option 'Own... Read more

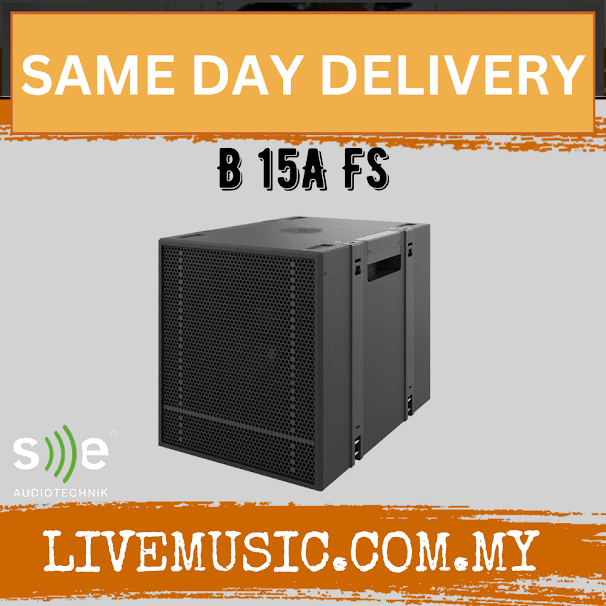

SKU: B15A FS
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA
- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)
EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time
FOR STANDARD DELIVERY
Please select shipping option 'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days
Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor
Contact : 0-1-6-5-2-0-1-0-6-6
SPECIFICATIONS
Model |
B 15A FS |
ACOUSTICAL |
|
Frequency range (-3dB) * |
42 Hz – 220 Hz |
Frequency range (-6dB) *: |
33 Hz – 260 Hz |
Coverage angles (-6dB) [H x V]: |
Omnidirectional |
Nominal impedance: |
8 O |
Sensitivity **: |
+14 dBu (3.88 V) +4 dBu (1.23 V) 0 dBu (0.775 V) 0 dBV (1 V) -10 dBV (0.316 V) |
Peak power: |
800 W |
Continuous power ***: |
|
Maximum Peak SPL ****: |
136 dB |
System type: |
1-way self-powered system |
Transducers: |
1 x 15 driver |
Enclosure type: |
Vented box |
Connectors: |
Input signal: balanced XLR 3-pin female Link output: balanced XLR 3-pin male Power input: powerCON® 20A Power link output: powerCON® 20A |
Wiring: |
Pin N: Neutral Pin L: Conductor Pin E: Ground |
MECHANICAL |
|
Product dimensions [H x W x D] (Including rigging): |
520 x 495 x 654 mm |
Net weight: |
37.1 kg |
Packaging dimensions [H x W x D]: |
613 x 550 x 733 mm |
Total weight: |
37.1 kg |
Cabinet: |
15 – 18 mm plywood |
Cabinet finishing: |
Black or white polyurea coating |
Grille: |
Powder coated perforated steel |
Hardware |
– 4 rubber feet and top recesses for stacking – M20 pole thread – 2 SE Audiotechnik® ergonomic handles |
Stacking: |
Four-point SE Audiotechnik® rigging system |
ACCESSORIES |
|
Stacking frame for M-F3A PRO: |
B15 SFi M |
Stacking frame for L35: |
B15 SFi L35 |
Transport dolly: |
B15 TD |
Transport cover: |
B15 TC |
Amplifier rain cover: |
P801DL RC |
All product specifications are subject to change without prior notice. |
**** Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor |
