Description

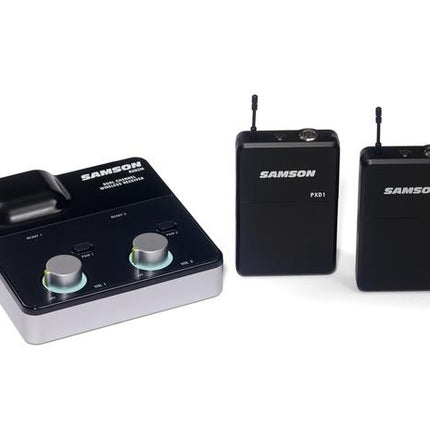

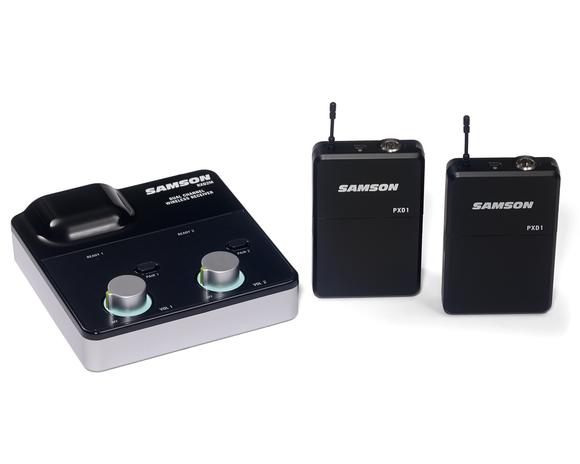

XPD2m Presentation Dual-Channel Digital Wireless System delivers two channels of high-quality, uncompressed wireless audio ideal for group presentations, educators, worship leaders and more. Operating on the 2.4GHz license-free frequency band, XPD2m offers simple setup and rock-solid wireless operation in a portable package.
Double Time
The PXD1 handheld transmitters allow for a completely cordless performance and capture vocals with absolute clarity. Offering 20 hours of continuous use from two AA batteries, and 100’ of wireless operation, the PXD1 delivers reliable performance in any application.
Lavalier and Headset

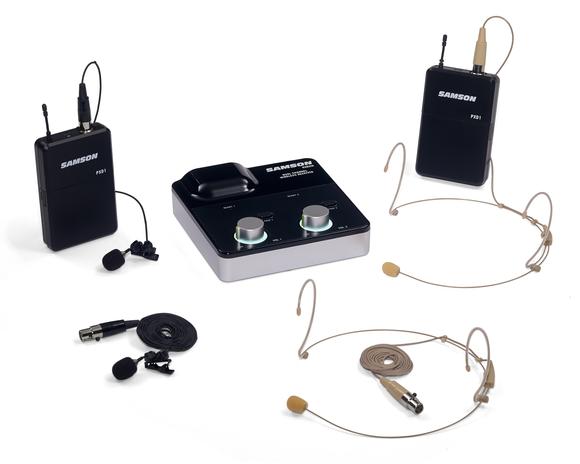

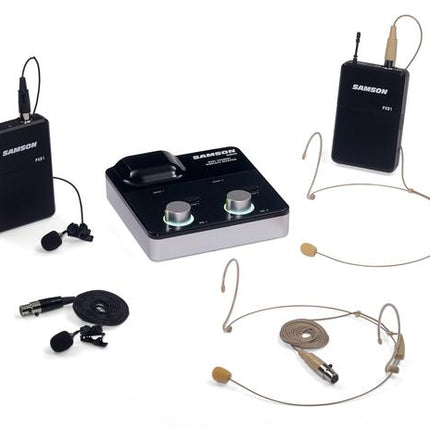

The XPD2m Presentation system comes with two LM7 unidirectional lavalier microphones and two DE5 low-profile headset microphones. This gives you the choice to use whatever microphone best fits your situation. Each microphone features locking connectors for a secure and stable connection and are engineered to capture every detail of your performance with stunning professional-quality audio.
Set up is extremely easy and you can start performing with one-touch pairing that syncs the transmitter and receiver channel. Simply connect the RXD2M to your mixer or sound system, set the levels and enjoy wireless audio that sounds as good as a wired microphone.
Easy Integration

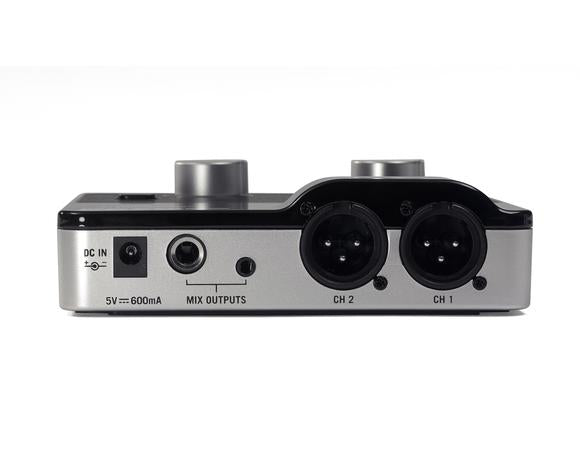

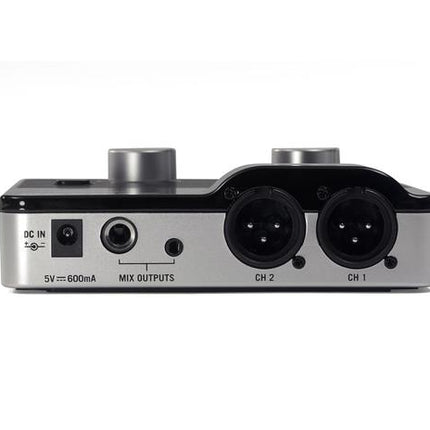

Connect the XPD2m dual channel tabletop receiver easily to any audio system. Two balanced XLR outputs allow each wireless channel to be routed independently, or send one mix of both channels via the 1/4” and 1/8” mix outputs.
FEATURES
- High performance dual channel digital wireless system
- Operates on 2.4GHz License-free frequency
- 100’ (30m) line-of-sight operating range
- Includes two LM7 unidirectional lavalier microphones and two DE5 low-profile omnidirectional headset microphones

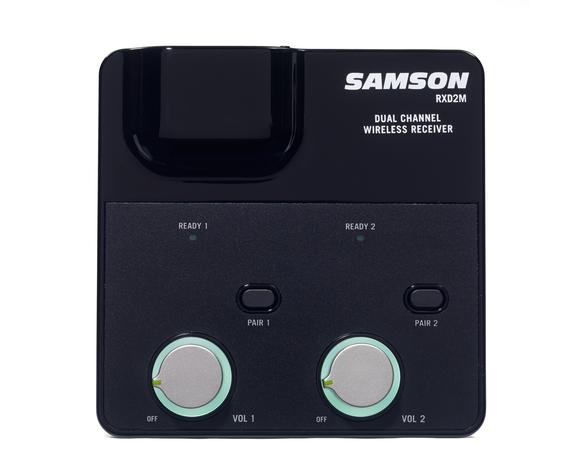

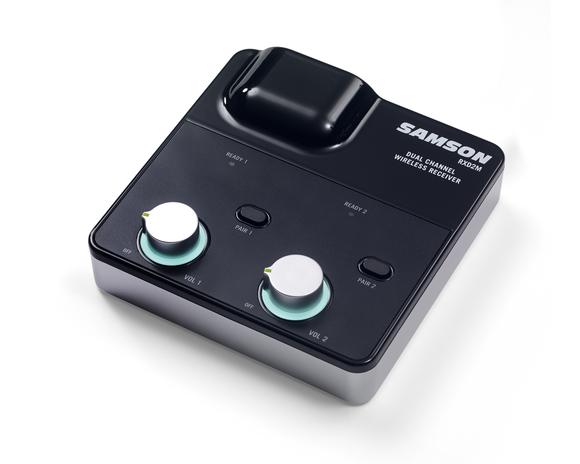

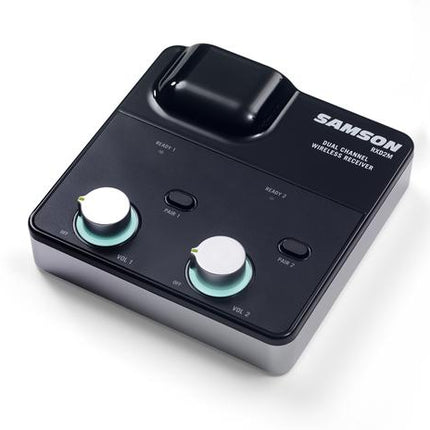

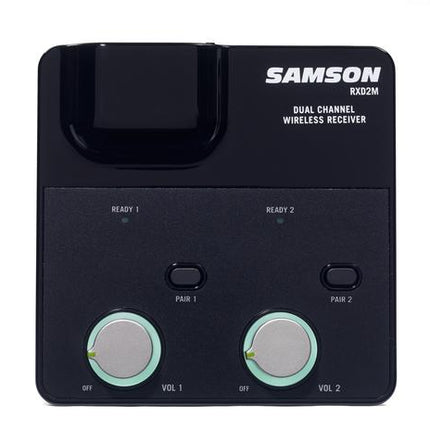

RXD2M Tabletop Receiver
- Dual balanced XLR outputs for routing signals to two separate mixer channels
- 1/4" and 1/8" unbalanced mix outputs combine signals to one output channel
- One-touch pairing button
- Separate Volume controls for each channel
PXD1 Beltpack Transmitters
- Mini XLR connector
- Offers up to 20 hours of battery life using two AA batteries
SPECIFICATIONS
- Working Range: 100' (30m) line of sight
- Working Frequency: 2.404~2.476GHz
- Modulation type: GFSK
- Audio Frequency Response: 20Hz–16KHz
- T.H.D.: <0.1% (@ 1KHz, -10dBu)
- Signal to Noise: >85dB
- Audio Output Level
- 1/8" (3.5mm) & 1/4" Jack (unbalanced): 5dBu
- XLR Jack (balanced): 5dBu
- Audio Output Impedance
- 1/8" (3.5mm) & 1/4" Jack (unbalanced): 2KΩ
- XLR output jack (balanced): 4.5KΩ
- RF Sensitivity: -78dBm/20dB SINAD
- Operating Voltage: 5V/500mA
- Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
- Product Weight: 0.33lb (152g)
