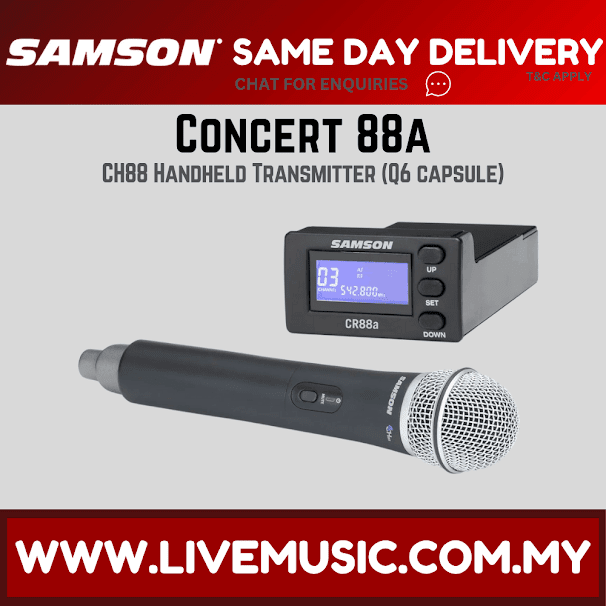

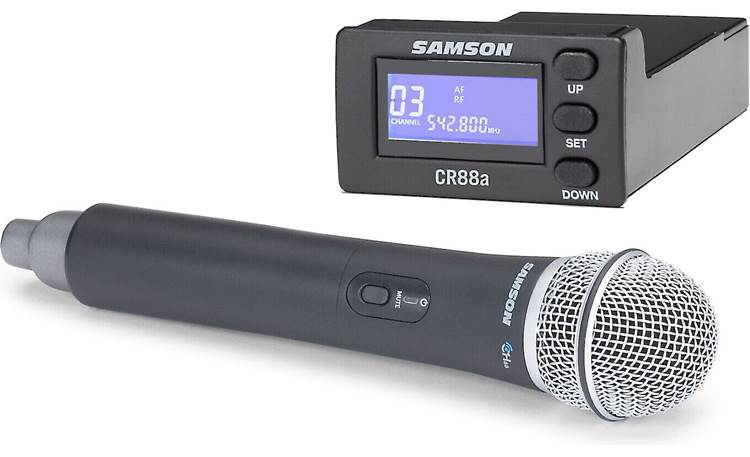

Samson Concert 88a - Module UHF Wireless System CH88A Transmitter w/Q6 Capsule (CR88a/ CR 88a/ CR-88a)

Description



Looking to add another frequency-agile UHF wireless system to your Expedition XP310w or XP312w Rechargeable Portable PA? The Concert 88a Series features Concert 88 Series wireless transmitters and the unique CR88a Receiver Module, which is specifically designed to slide/lock into the back panel of your XP310w or XP312w. Concert 88a Series wireless system is available in Handheld, Lavalier and Headset microphone configurations.





FEATURES



  • Frequency-agile UHF wireless system
  • CR88a Receiver Module designed specifically for use with Samson Expedition XP310w and XP312w Rechargeable Portable PAs
  • Up to 100 available operating channels
  • IR sync wirelessly matches receiver and transmitter frequency
  • Tone key prevents unwanted noise when transmitter is off/out of range
  • Handheld: CH88 Handheld Transmitter with Q6 Dynamic Microphone capsule
  • Headset: CB88 Beltpack Transmitter with LM8 Lavalier Microphone
  • Lavalier: CB88 Beltpack Transmitter with DE5 Headset Microphone
  • Multifunctional backlit LCD
  • Transmitter offers up to eight hours of battery life using two AA batteries
  • 100' operating range (line-of-sight)





SPECIFICATIONS



  • Frequency Band Type: UHF
  • Available Frequency Bands: D, G and K
  • Channels: Up to 100 frequency presets per frequency band
  • Receiver Type: Receiver and PLL UHF Synthesized
  • Frequency Response: 50Hz–15KHz (±3dB)
  • Frequency Stability: ±0.005%
  • T.H.D.: <1%(@AF 1KHz, RF 46dBu
  • Tone Key Frequency: 35KHz
  • Dynamic: >100dB A-weighted
  • Modulation Mode: FM (F3E)
  • Max. Output: 0dBu
  • Signal to Noise: >90dB
  • RF Sensitivity: -100dBm/30dB sinad
  • Power Supply: 10~12VDC 170mA
  • Display: LCD
  • Receiver Dimensions: 1.26" (32mm) x 2.24" (57mm) x 4.41" (112mm)
  • Receiver Weight: 1.59lb (0.72kg)

Samson Concert 88a - Module UHF Wireless System CH88A Transmitter w/Q6 Capsule (CR88a/ CR 88a/ CR-88a)

Product form

RM975.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: Concert 88a

    Same Day Delivery via Lalamove

    Description



    Looking to add another frequency-agile UHF wireless system to your Expedition XP310w or XP312w Rechargeable Portable PA? The Concert 88a Series features Concert 88 Series wireless transmitters and the unique CR88a Receiver Module, which is specifically designed to slide/lock into the back panel of your XP310w or XP312w. Concert 88a Series wireless system is available in Handheld, Lavalier and Headset microphone configurations.





    FEATURES



    • Frequency-agile UHF wireless system
    • CR88a Receiver Module designed specifically for use with Samson Expedition XP310w and XP312w Rechargeable Portable PAs
    • Up to 100 available operating channels
    • IR sync wirelessly matches receiver and transmitter frequency
    • Tone key prevents unwanted noise when transmitter is off/out of range
    • Handheld: CH88 Handheld Transmitter with Q6 Dynamic Microphone capsule
    • Headset: CB88 Beltpack Transmitter with LM8 Lavalier Microphone
    • Lavalier: CB88 Beltpack Transmitter with DE5 Headset Microphone
    • Multifunctional backlit LCD
    • Transmitter offers up to eight hours of battery life using two AA batteries
    • 100' operating range (line-of-sight)





    SPECIFICATIONS



    • Frequency Band Type: UHF
    • Available Frequency Bands: D, G and K
    • Channels: Up to 100 frequency presets per frequency band
    • Receiver Type: Receiver and PLL UHF Synthesized
    • Frequency Response: 50Hz–15KHz (±3dB)
    • Frequency Stability: ±0.005%
    • T.H.D.: <1%(@AF 1KHz, RF 46dBu
    • Tone Key Frequency: 35KHz
    • Dynamic: >100dB A-weighted
    • Modulation Mode: FM (F3E)
    • Max. Output: 0dBu
    • Signal to Noise: >90dB
    • RF Sensitivity: -100dBm/30dB sinad
    • Power Supply: 10~12VDC 170mA
    • Display: LCD
    • Receiver Dimensions: 1.26" (32mm) x 2.24" (57mm) x 4.41" (112mm)
    • Receiver Weight: 1.59lb (0.72kg)
