RM629.00
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA- Please select shipping option 'Own... Read more
SKU: W07-RBO-BMOD-4-U2
SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA
- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)
EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time
FOR STANDARD DELIVERY
Please select shipping option 'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days
Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor
Contact : 0-1-6-5-2-0-1-0-6-6
Features:

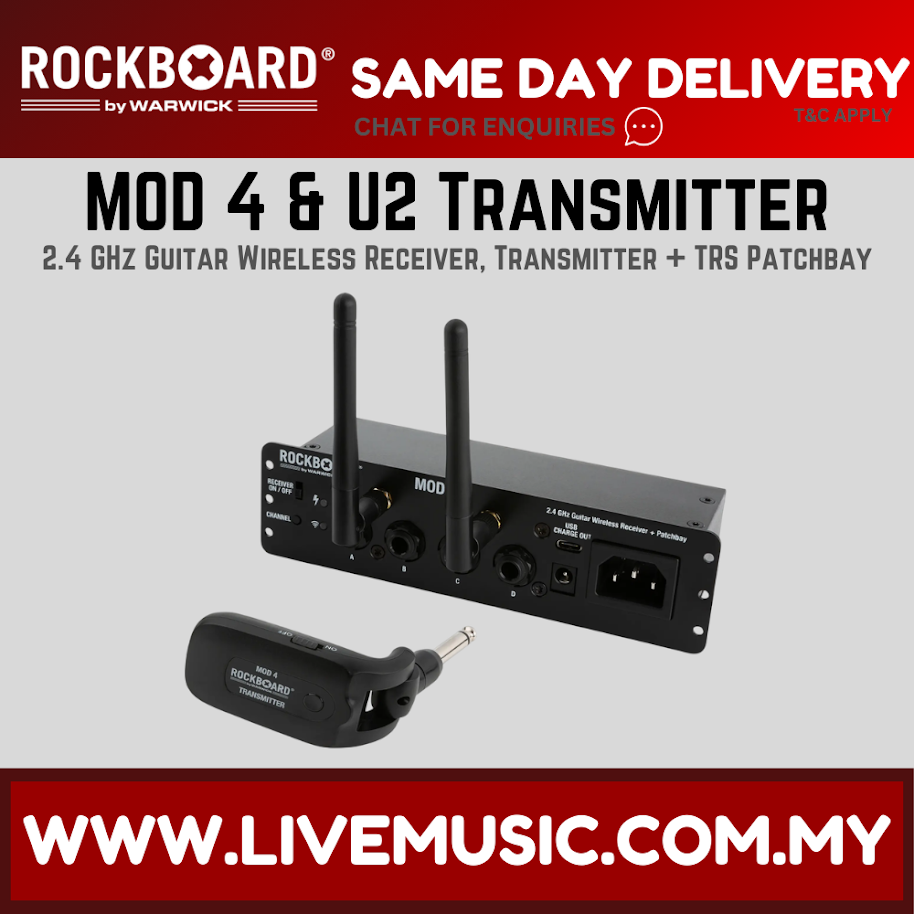

Wireless system receiver + Patchbay for pedalboards, incl. wireless transmitter
2.4 GHz ISM band for worldwide use
30 m / 100 ft. approx. range (without obstacles)
24-bit / 48 kHz uncompressed digital transmission
20 Hz - 20 kHz frequency range
5 ms latency
> 103 dB dynamic range
- 85 dBm RF sensitivity
0.2% total harmonic distortion
4 selectable channels
Fits MOD slots in RockBoard pedalboards
Compatible with a wide variety of other pedalboards
Acts as the central access point to your effects setup
Detachable front plate for mounting on top or underneath pedalboards
4x 6.3 mm / 1/4" stereo thru (TRS)
1x 6.3 mm / 1/4" mono receiver audio output (TS)
1x DC 2.1 x 5.5 mm barrel thru
1x AC IEC thru
1x USB Type C charge output
Power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
Battery operation not supported
Current draw 500 mA
Passive operation possible (patchbay only, without wireless system)
Includes: Wireless Transmitter, Two Antennas, USB Charging Cable, Mounting Screws, and Counter Nuts
Dimensions with Front Plate: 6 57/64" (W) x 3 11/32" (D) x 1 27/32" (H) / 175mm (W) x 85mm (D) x 47mm (D) /
Dimensions without Front Plate: 6 19/64" (W) x 3 11/32" (D) x 1 19/64" (H) / 160mm (W) x 85mm (D) x 33mm (H)
Weight: 500 g / 1.1 lbs
