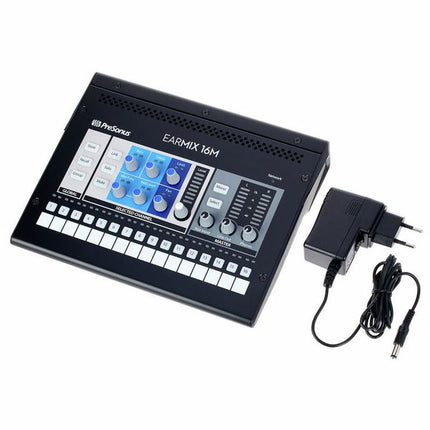

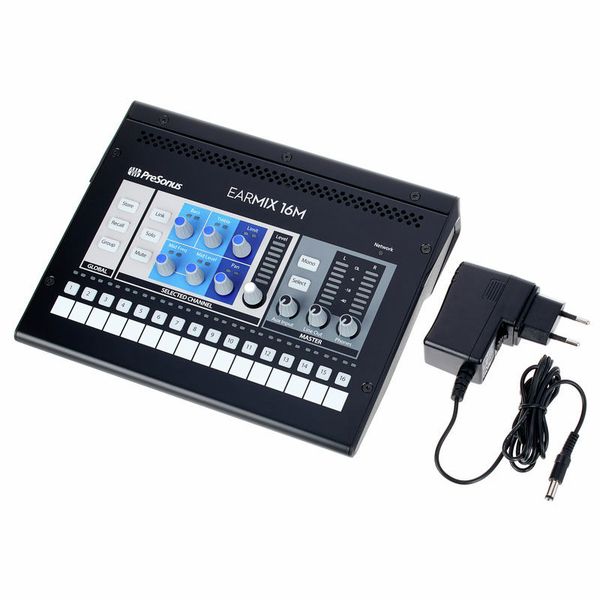

The simple layout of the PreSonus EarMix 16M AVB-networked personal mixer makes it easy for any performer to intuitively dial in a great-sounding monitor mix quickly. It only takes seconds to select any of the 16 channels, optimize its volume, and place it in the stereo field. Once you've crafted your perfect mix you can sweeten the sound with EQ and limiting — available on every channel as well as the stereo mix bus. Best of all you can save up to 16 preset mix scenes on the EarMix 16M so they're ready for instant recall, making regularly-occurring events painless to set up.

FEATURES

• 16x2 AVB-networked personal monitor mixer
• Powerful headphone amp can drive low-impedance in-ear monitors
• 3-band EQ and limiter on all channels plus main mix
• Stereo channel linking and channel grouping
• May be powered via PoE
• 2 AVB Ethernet ports; network up to 24 units with a StudioLive Series III mixer
• 2 Balanced 1/4" TRS line outputs
• 1/8" stereo aux input
• Store up to 16 mix scenes for instant recall
• Signal present and clipping LED for each input
• 8-segment stereo output meter
• 24 bit, up to 48kHz operation
• Routing setup from StudioLive Series III consoles and UC Surface
• Mic-stand mounting option (available separately)

SPECIFICATIONS

• Type:Personal Monitor Mixer
• Compatibility:StudioLive Series III

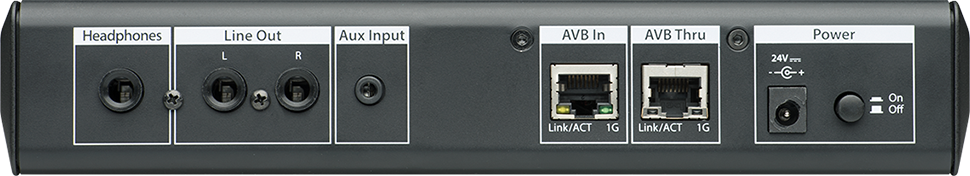

• Number of Ports:1 x AVB In, 1 x AVB Thru
• Connection Type:Ethernet AVB network
• Input Channels:16
• Output Channels:2
• Analog Inputs:1 x 1/8" (stereo aux in)
• Analog Outputs:2 x 1/4" TRS (line out)
• Headphones:1 x 1/4"
• Form Factor:Desktop
• Power Source:24V DC power supply / PoE support
• Height:1.8"
• Width:9.4"
• Depth:7.6"
• Weight:1.2 lbs.

Dimension Packaging Weight : 2.4 kg
