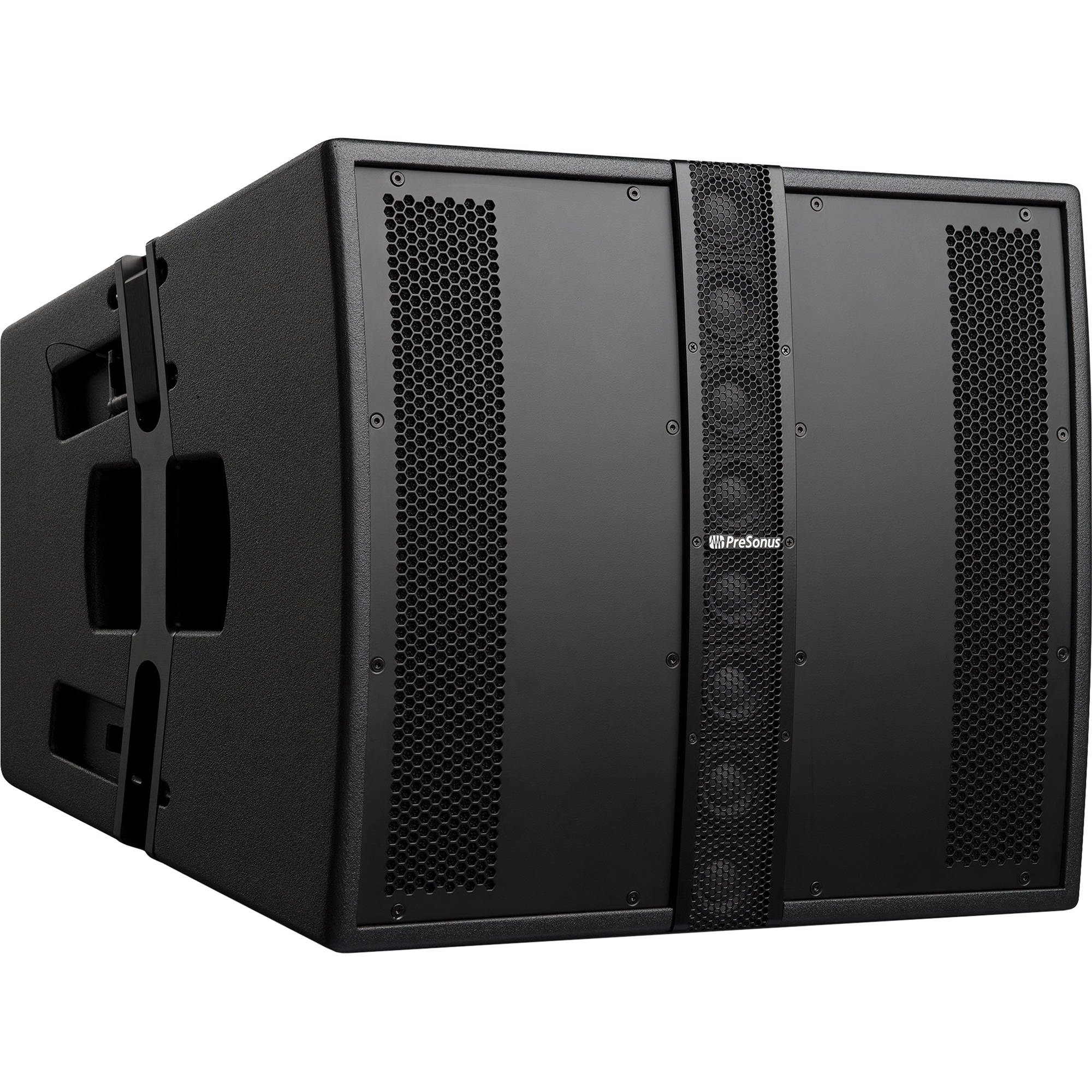

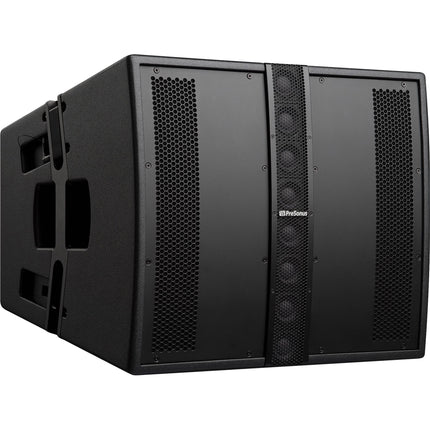

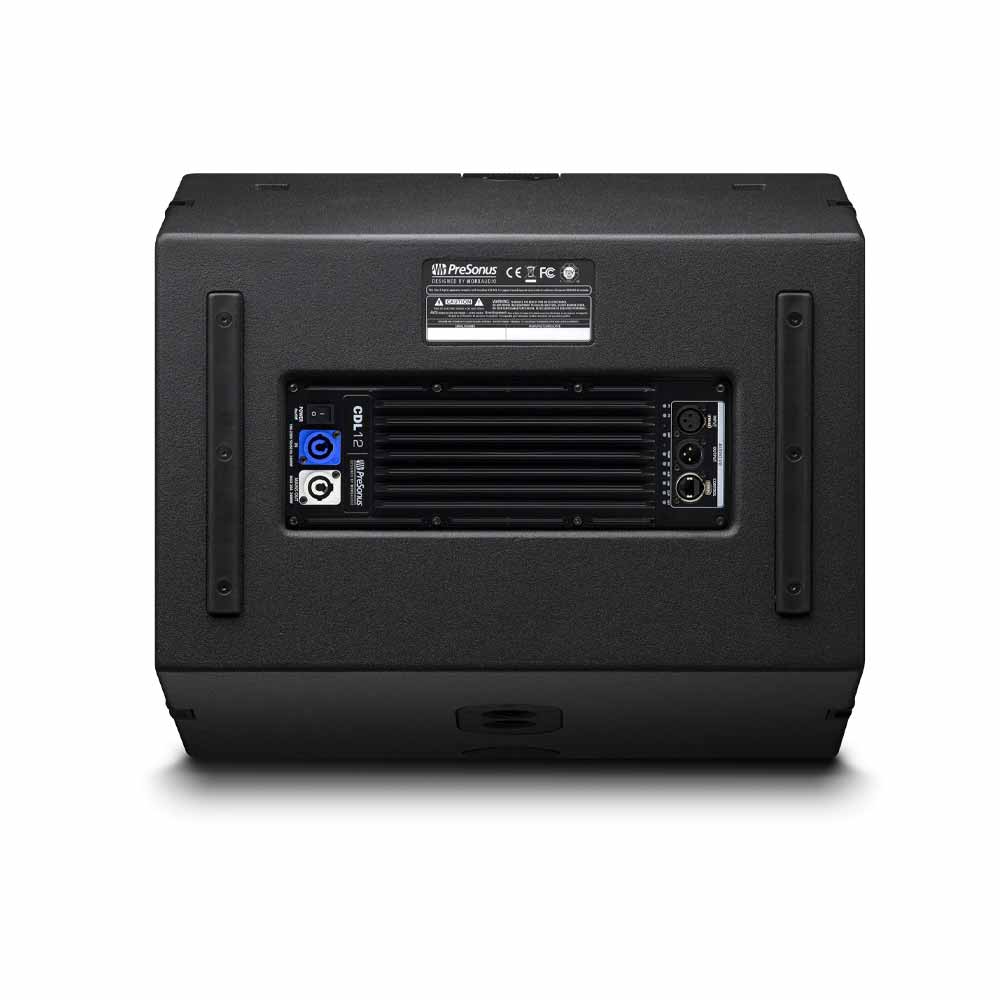

PreSonus CDL12 Hybrid Point Source/Line Array Constant Directivity Loudspeaker - Each (CDL-12/CDL 12)

Description



Combining the best attributes of point source and line array technologies, the PreSonus CDL12 is a constant directivity loudspeaker well suited for fixed installations and mobile sound reinforcement for live bands, DJs, clubs, event halls, bars, speaking engagements, and more. The CDL12 offers consistent, coherent sound with focused pattern control and consistent SPL throughout the frequency response range.

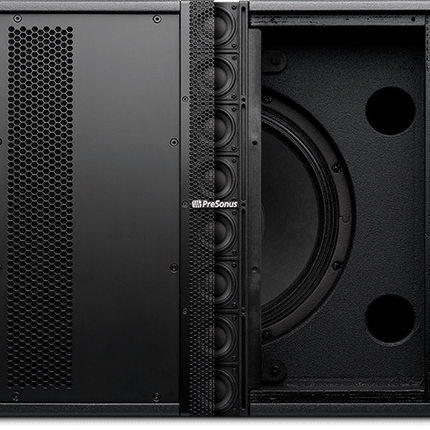

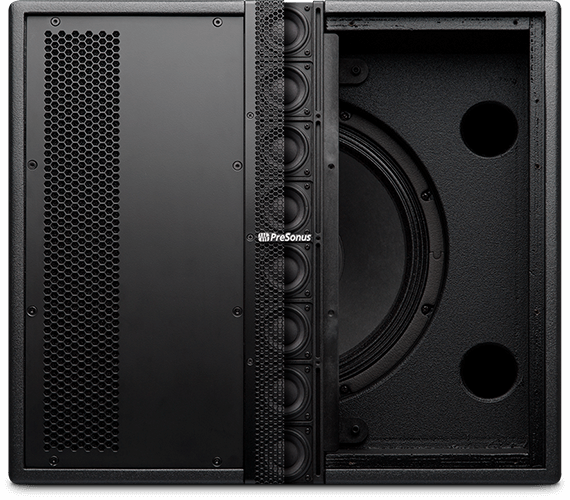

The 15mm eucalyptus plywood enclosure houses a 2000W Class-D amplifier that powers the single 12" (1000W) woofer and eight 2" hi-mid frequency drivers (1000W), which combine to offer a frequency range (±3 dB) of 48 Hz to 18 kHz with a maximum SPL of 131 dB. With a 420 Hz crossover, the CDL12 minimizes comb filtering between the high-mid drivers and the 12" driver.




FEATURES

  • 8 x 2" drivers disperse high frequencies at an astonishing 120° horizontally
  • 6 speakers can be arrayed for symmetrical 120° x 120° dispersion
  • 12" woofer yields a thunderous low-end thump
  • 1,000 watts of Class D power exhibit remarkable headroom, explosive SPLs, and incredible dynamics
  • Onboard array presets for easy deployment
  • Take command of large arrays with Worx Control software
  • Speaker-management tools include compression, limiting, 800ms of delay, an 8-band EQ, and more
  • Built-in Dante connectivity gives you near-zero latency and synchronization
  • Boasts an impressive range of mounting options




SPECIFICATIONS

  • Powered:    Yes
  • Power Configuration:    Bi-amped
  • Channels:    Single
  • LF Driver Size:    12" Woofer, 2.5" Voice Coil
  • HF Driver Size:    8 x 2" Drivers, Speaker Array
  • LF Driver Power Amp:    1000W Peak, 500W Program
  • HF Driver Power Amp:    1000W Peak, 500W Program
  • Total Power:    2000W Peak, 1000W Program, 500W RMS
  • Inputs:    1 x XLR (line)
  • Outputs:    1 x XLR (direct out)
  • Data I/O:    Locking Ethernet (Dante)
  • Frequency Range:    42Hz-19kHz
  • Frequency Response:    48Hz-18kHz (-3dB)
  • Crossover Frequency:    420Hz
  • Maximum Peak SPL:    131 dB SPL
  • Horizontal Coverage Angle:    120 Degrees
  • Vertical Coverage Angle:    20 Degrees
  • Signal Processing:    DSP Presets, Compression, Limiting, Delay, 8-band EQ
  • Software:    Worx Control Software
  • Enclosure Material:    15mm Eucalyptus Plywood, Chemline Polyurea Finish

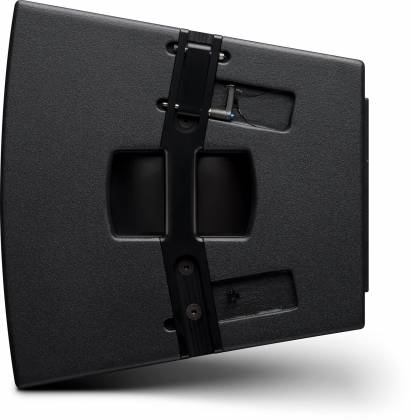

  • Mounting Options:    Dual-position Pole Mount, Integrated Pin-loaded Hardware
