Description
Main Features
Accessories
Platter
Platter fixing screws
Screwdriver

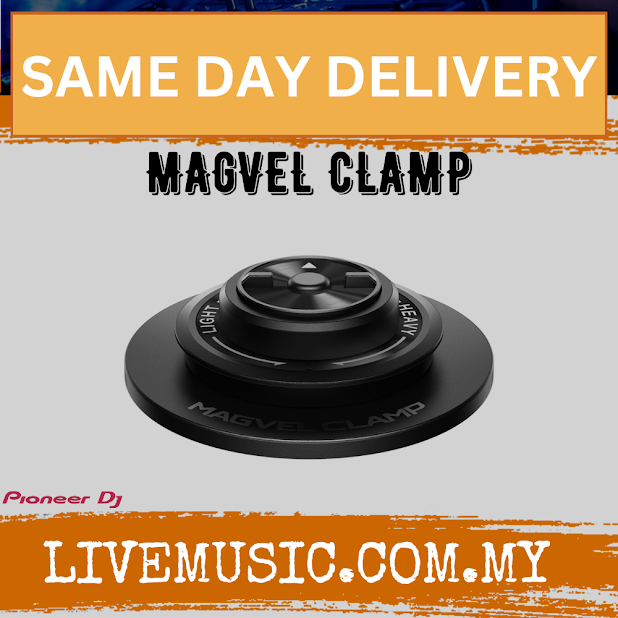

MAGVEL CLAMP
Slip mat
Slip Sheet
Dust cover
Balance Weights
Sub Weights
Head Shells
Shell Weight
Power cord
Audio cable (ground wire integrated)
USB cable
Quick Start Guide
Precautions for use
?Main Specifications
Width: 453 mm
Height: 159 mm
Depth: 353 mm
Main unit weight: 12.2 kg
Turntable
Drive System: Servo Direct Drive
Turntable: Aluminum die-cast, Diameter: 332 mm
Motor: 3-phase brushless DC motor
Brake system: Electronic brake
Rotation speed: 33 1/3 rpm, 45 rpm
Speed adjustment range: ±8, ±16, ±50
Wah flutter: 0.15 % or less WRMS (JIS WTD)
S/N Ratio: 65 dB (DIN-B)
Starting torque: High: 0.45 N?m (4.5 kgf?cm) or more Mid: 0.32 N?m (3.2 kgf?cm) Low: 0.2 N?m (2.0 kgf?cm)
Startup time: 0.3 sec (at 33 1/3 rpm)
Tone Arm Type
Tone arm type: Universal S-shaped tone arm
Gimbal support type bearing structure: Statically balanced
Overhang: 15 mm
Overhang: 15 mm ?Effective length: 230 mm
Tracking error: 3° or less
Arm height adjustment range: 6 mm
Adjustable needle pressure range: 0-4 g (0.1 g per graduation)
Appropriate cartridge weight: 2.5-12 g (including mounting screw and nut)
