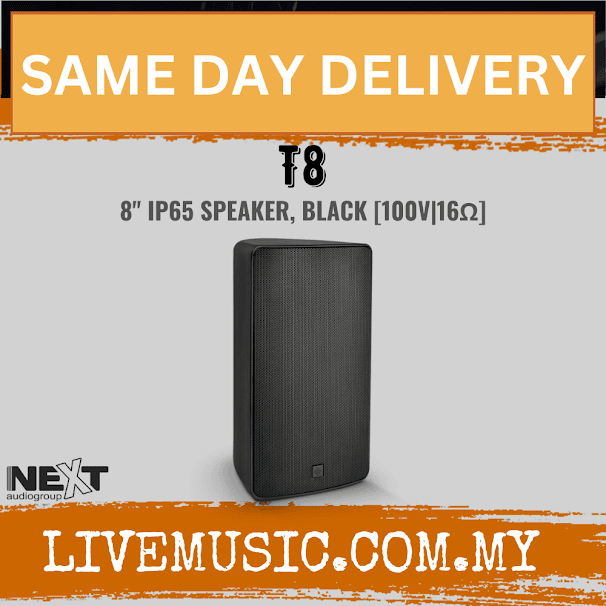

The T8 two-way IP65 loudspeakers with built-in 100V transformer and 16? power tap are perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bar terrace, churches, malls or conferences. The speakers are housed in a stylish weatherproof plastic cabinet (IP65 - using the back cover) providing an excellent architectural integration, both indoor and outdoor. The very accurate speaker’s coverage allows the people, among the audience, to perceive the sound in the same way. The low frequencies are reproduced by a 8” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. A U-bracket is included and will support your installation on the wall or ceiling.
SPECIFICATIONS
Product Type
2-Way Outdoor Passive Speaker (16?/100V)
Frequency Response (-6dB)
60Hz - 18kHz
Nominal Coverage (-6dB)
90° H x 50º V
RMS Power
150W
Program Power
300W
Nominal Impedance
16? (low impedance mode)
Sensitivity (1W, 1m)
94dB
Maximum SPL (calculated)
119dB
Transformer Taps 100V
37.5W | 75W | 150W
Low Frequency Driver
8" Woofer
High Frequency Driver
1" Driver
Input Connectors
4 Pins Screw Connector (IN/OUT)
Recommended Amplifier
MX120 | MX350
Grille
Aluminum Acoustically Invisible
Construction
Weatherproof Plastic Cabinet
IP Rating
IP65
Dimensions (WxHxD)
240 x 450 x 287mm (9.4 x 17.7 x 11.3 in)
Fixation
Wall U-Bracket (included)
Net Weight
10.7kg (23.6lb)
Shipping Weight
12.2kg (26.9lb)
Accessories
Hinged Wall Bracket for T6/T8 (not included)
