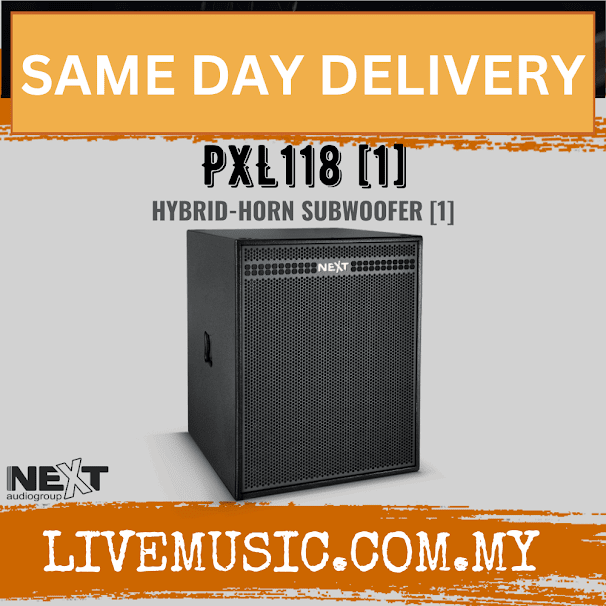

Next Audio PXL118 [1] Hybrid-horn Subwoofer [1] ( PXL1181 / PXL-118 / PXL 118 )

Description

The PXL118 makes use of a Hybrid-horn design to achieve high maximum sound pressure while producing deep low bass well below 50 Hz. Even under maximum load the impulse response accuracy is striking.





The PXL118 is a subwoofer with a rich, punchy sound, specifically designed to match the PXH64 mid/high speaker extending its frequency response down to 50 Hz. This subwoofer can also be used with any other NEXT-proaudio speakers.





SPECIFICATIONS

Product Type

Hybrid Horn-Loaded Bass Speaker

Frequency Response (-6dB)

42Hz – 180Hz

Low Frequency Extension (-10dB)

34Hz

Program Power

2400W

Peak Power

4800W (10ms)

Nominal Impedance

8?

Sensitivity (1W, 1m)

104dB (Half-Space)

Maximum SPL (calculated)

137.8dB / 143.8dB (Half-Space)

Subwoofer Driver

1 x 18? (460mm) / 4? (100mm) VC, high excursion, B&C custom speaker

Input Connectors

2 x Neutrik NL8 parallel wired

Recommended Amplifier

PXA8001 (Dedicated power rack)

Fittings

16 x M8 threaded inserts for optional wheel kit, 12 x M8 threaded inserts for optional rigging system

Handles

1 on each side

Grille

Black Perforated Steel

Construction

Braced 15mm multi-laminate birch ply

Finish

Semi-Matte Black Textured Coating

Dimensions (WxHxD)

600 x 766 x 641 mm

Net Weight

49.5kg

Next Audio PXL118 [1] Hybrid-horn Subwoofer [1] ( PXL1181 / PXL-118 / PXL 118 )

Product form

RM9,500.00

Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: PXL118[1]

    Description

    The PXL118 makes use of a Hybrid-horn design to achieve high maximum sound pressure while producing deep low bass well below 50 Hz. Even under maximum load the impulse response accuracy is striking.





    The PXL118 is a subwoofer with a rich, punchy sound, specifically designed to match the PXH64 mid/high speaker extending its frequency response down to 50 Hz. This subwoofer can also be used with any other NEXT-proaudio speakers.





    SPECIFICATIONS

    Product Type

    Hybrid Horn-Loaded Bass Speaker

    Frequency Response (-6dB)

    42Hz – 180Hz

    Low Frequency Extension (-10dB)

    34Hz

    Program Power

    2400W

    Peak Power

    4800W (10ms)

    Nominal Impedance

    8?

    Sensitivity (1W, 1m)

    104dB (Half-Space)

    Maximum SPL (calculated)

    137.8dB / 143.8dB (Half-Space)

    Subwoofer Driver

    1 x 18? (460mm) / 4? (100mm) VC, high excursion, B&C custom speaker

    Input Connectors

    2 x Neutrik NL8 parallel wired

    Recommended Amplifier

    PXA8001 (Dedicated power rack)

    Fittings

    16 x M8 threaded inserts for optional wheel kit, 12 x M8 threaded inserts for optional rigging system

    Handles

    1 on each side

    Grille

    Black Perforated Steel

    Construction

    Braced 15mm multi-laminate birch ply

    Finish

    Semi-Matte Black Textured Coating

    Dimensions (WxHxD)

    600 x 766 x 641 mm

    Net Weight

    49.5kg
