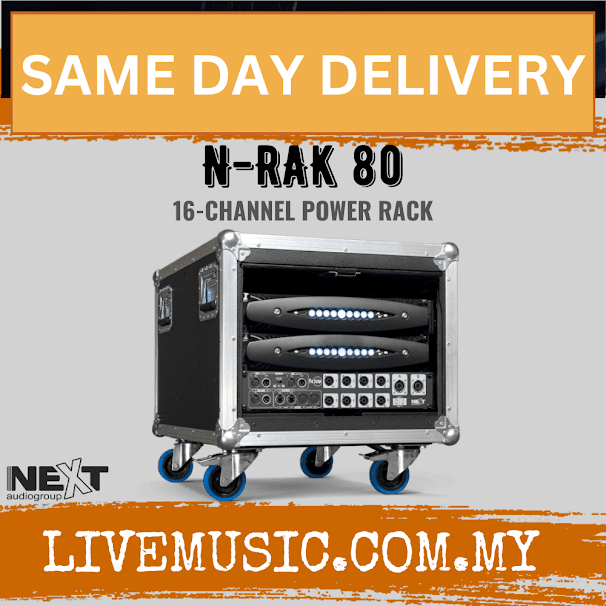

NEXT Audio N-RAK 80 16-Channel Power Rack ( N RAK 80 / NRAK80 )

Description

N-RAK concept was created as a universal platform developed to facilitate cross-rental between NEXT-proaudio’s Users worldwide and to ensure compatibility with the cabling standard of the systems. The N-RAK 80 is equipped with 2 Powersoft X8 amplifiers, featuring Dante audio networking functionality (optionally).





The N-RAK 80 has Dante (optional), AES3 and analogue inputs for multiple connections. With the Powersoft amplifier already built in and no assembly required, it’s an easy-to-configure, all-in-one amplifier solution that eliminates the process of building amp racks.





The N-RAK 80 features Armonia software for convenient, simple and standard control. The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing non-Boolean routing and mixing, multi-stage equalisation with raised-cosine, IIR and FIR filters, delay up to 4s in input processing and 200ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters and Active DampingControl.





SPECIFICATIONS

Product Type

16-Channel Multi-Purpose Power Rack

Frequency Response (-6dB)

5Hz - 30kHz (-3dB) @ 1W, 8?

Number of Amplifier Channels

16

Amplifier Power - Stereo 8?

16 x 1600W

Amplifier Power - Stereo 4?

16 x 3000W

Amplifier Power - Stereo 2?

16 x 5200W

Amplifier Power - Bridge 8?

8 x 6000W

Amplifier Power - Bridge 4?

8 x 10400W

Damping Factor

> 5000 @ 8?, 20Hz - 500Hz

THD+N

< 0.5% (typically < 0.01%)

IMD

< 0.5% (typically < 0.01%)

Slew Rate

> 50V/µs

Crosstalk

-70dB @ 1kHz

Noise Floor

-70dBV (20Hz - 20kHz, A weighted)

Input Impedance

20k? balanced

DSP Technology

ARM Cortex A-8 processor and TI C6000 DSP platform

Delay Adjustment

up to 4s on input section; up to 200ms per output for time alignment

Operating Temperature Range

0º-45ºC - 32º-113ºF

Power Supply

Universal, Single Phase, Bi-Phase or Three Phase acceptance, switching mode with PFC

Power Input

85V - 440V

Mains Connector

3P+N+PE 32A CEE Male Plug

Power Consumption

12A rms per Phase @ 416Y | 24A rms per Phase @ 173Y (1/8 of Maximum Power)

Special Features

Filters: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass | Limiters: TruePower, RMS voltage, RMS current, Peak | Active Damping Control

Dimensions (WxHxD)

600mm x 624mm x 800mm

Net Weight

91kg

NEXT Audio N-RAK 80 16-Channel Power Rack ( N RAK 80 / NRAK80 )

Product form

RM257,790.00

Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: NRAK80

    Description

    N-RAK concept was created as a universal platform developed to facilitate cross-rental between NEXT-proaudio’s Users worldwide and to ensure compatibility with the cabling standard of the systems. The N-RAK 80 is equipped with 2 Powersoft X8 amplifiers, featuring Dante audio networking functionality (optionally).





    The N-RAK 80 has Dante (optional), AES3 and analogue inputs for multiple connections. With the Powersoft amplifier already built in and no assembly required, it’s an easy-to-configure, all-in-one amplifier solution that eliminates the process of building amp racks.





    The N-RAK 80 features Armonia software for convenient, simple and standard control. The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing non-Boolean routing and mixing, multi-stage equalisation with raised-cosine, IIR and FIR filters, delay up to 4s in input processing and 200ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters and Active DampingControl.





    SPECIFICATIONS

    Product Type

    16-Channel Multi-Purpose Power Rack

    Frequency Response (-6dB)

    5Hz - 30kHz (-3dB) @ 1W, 8?

    Number of Amplifier Channels

    16

    Amplifier Power - Stereo 8?

    16 x 1600W

    Amplifier Power - Stereo 4?

    16 x 3000W

    Amplifier Power - Stereo 2?

    16 x 5200W

    Amplifier Power - Bridge 8?

    8 x 6000W

    Amplifier Power - Bridge 4?

    8 x 10400W

    Damping Factor

    > 5000 @ 8?, 20Hz - 500Hz

    THD+N

    < 0.5% (typically < 0.01%)

    IMD

    < 0.5% (typically < 0.01%)

    Slew Rate

    > 50V/µs

    Crosstalk

    -70dB @ 1kHz

    Noise Floor

    -70dBV (20Hz - 20kHz, A weighted)

    Input Impedance

    20k? balanced

    DSP Technology

    ARM Cortex A-8 processor and TI C6000 DSP platform

    Delay Adjustment

    up to 4s on input section; up to 200ms per output for time alignment

    Operating Temperature Range

    0º-45ºC - 32º-113ºF

    Power Supply

    Universal, Single Phase, Bi-Phase or Three Phase acceptance, switching mode with PFC

    Power Input

    85V - 440V

    Mains Connector

    3P+N+PE 32A CEE Male Plug

    Power Consumption

    12A rms per Phase @ 416Y | 24A rms per Phase @ 173Y (1/8 of Maximum Power)

    Special Features

    Filters: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass | Limiters: TruePower, RMS voltage, RMS current, Peak | Active Damping Control

    Dimensions (WxHxD)

    600mm x 624mm x 800mm

    Net Weight

    91kg
