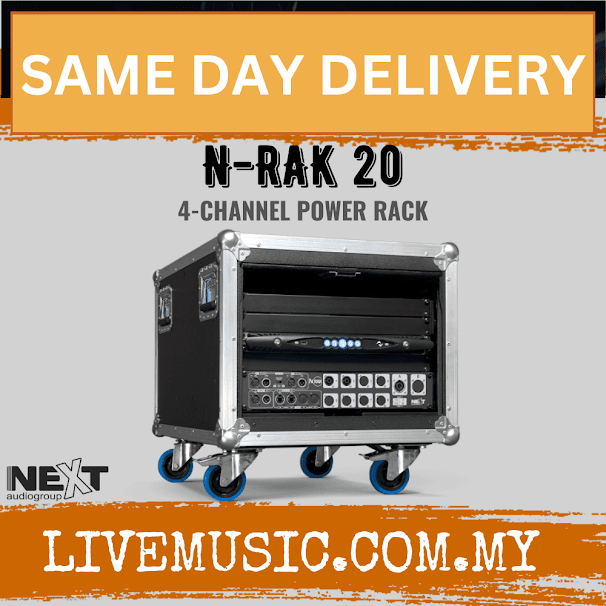

NEXT Audio N-RAK 20 4-Channel Power Rack ( N RAK 20 / NRAK20 )

Description

The N-RAK concept was developed as a universal platform to facilitate mutual rental between NEXT-proaudio users worldwide and to ensure compatibility with the systems' cabling standard. The N-RAK 20 is equipped with Powersoft X4 amplifiers with Dante audio network functionality (optional).





The N-RAK 20 features Armonia software for convenient, simple and standard control. The complete digital audio signal management system based on the ARM Cortex A-8 processor and the TI C6000 DSP platform ushers in a new and innovative level of signal processing, offering non-Boolean routing and mixing, multi-stage equalization with raised cosine, IIR - and FIR filters, delay up to 4 s for input processing and 200 ms for time adjustment, gain and polarity adjustment, crossover, peak limiter, TruePower limiter and Active DampingControl.

Technical data



Product Type: 4 Channel Multi-Purpose Power Rack
Frequency response (-6dB): 5Hz - 30kHz (-3dB) @ 1W, 8?
Number of amplifier channels: 4
Amplifier power - Stereo 8?: 4 x 1600 W
Amplifier power - Stereo 4?: 4 x 3000 W
Amplifier power - Stereo 2?: 4 x 5200 W
Amplifier power - bridge 8?: 2 x 10400 W
Damping factor: > 5000 @ 8 ?, 20 Hz - 500 Hz
THD+N: <0.5% (typically <0.01%)
IMD: <0.5% (typically <0.01%)
Rise rate: > 50V/µs
Noise Floor: -70 dBV (20 Hz - 20 kHz, A-weighted)
Input impedance: 20k? balanced
DSP technology: ARM Cortex A-8 processor and TI C6000 DSP platform
Delay setting: up to 4s in the input range; up to 200 ms per output for time synchronization
Operating temperature range: 0º-45ºC - 32º-113ºF
Power supply: Universal, single-phase, two-phase or three-phase consumption, switching mode with PFC
Power consumption: 85V - 440V
Power connection: 3P+N+PE 32A CEE plug
Energy consumption: 3 A RMS per phase at 416 Y | 6 A rms per phase at 173 Y (1/8 of maximum power)
Special Features: Filter: Raised Cosine, Custom FIR, Parametric IIR: Peaking, Hi/Lo Shelving, Allpass, Bandpass, Bandstop, Hi/Lo Pass | Limiter: TruePower, RMS voltage, RMS current, Peak | Active damping control
Dimensions (WxHxD): 600mm x 624mm x 800mm
Net weight: 57kg

NEXT Audio N-RAK 20 4-Channel Power Rack ( N RAK 20 / NRAK20 )

Product form

RM91,270.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: NRAK20

    Same Day Delivery via Lalamove

    Description

    The N-RAK concept was developed as a universal platform to facilitate mutual rental between NEXT-proaudio users worldwide and to ensure compatibility with the systems' cabling standard. The N-RAK 20 is equipped with Powersoft X4 amplifiers with Dante audio network functionality (optional).





    The N-RAK 20 features Armonia software for convenient, simple and standard control. The complete digital audio signal management system based on the ARM Cortex A-8 processor and the TI C6000 DSP platform ushers in a new and innovative level of signal processing, offering non-Boolean routing and mixing, multi-stage equalization with raised cosine, IIR - and FIR filters, delay up to 4 s for input processing and 200 ms for time adjustment, gain and polarity adjustment, crossover, peak limiter, TruePower limiter and Active DampingControl.

    Technical data



    Product Type: 4 Channel Multi-Purpose Power Rack
    Frequency response (-6dB): 5Hz - 30kHz (-3dB) @ 1W, 8?
    Number of amplifier channels: 4
    Amplifier power - Stereo 8?: 4 x 1600 W
    Amplifier power - Stereo 4?: 4 x 3000 W
    Amplifier power - Stereo 2?: 4 x 5200 W
    Amplifier power - bridge 8?: 2 x 10400 W
    Damping factor: > 5000 @ 8 ?, 20 Hz - 500 Hz
    THD+N: <0.5% (typically <0.01%)
    IMD: <0.5% (typically <0.01%)
    Rise rate: > 50V/µs
    Noise Floor: -70 dBV (20 Hz - 20 kHz, A-weighted)
    Input impedance: 20k? balanced
    DSP technology: ARM Cortex A-8 processor and TI C6000 DSP platform
    Delay setting: up to 4s in the input range; up to 200 ms per output for time synchronization
    Operating temperature range: 0º-45ºC - 32º-113ºF
    Power supply: Universal, single-phase, two-phase or three-phase consumption, switching mode with PFC
    Power consumption: 85V - 440V
    Power connection: 3P+N+PE 32A CEE plug
    Energy consumption: 3 A RMS per phase at 416 Y | 6 A rms per phase at 173 Y (1/8 of maximum power)
    Special Features: Filter: Raised Cosine, Custom FIR, Parametric IIR: Peaking, Hi/Lo Shelving, Allpass, Bandpass, Bandstop, Hi/Lo Pass | Limiter: TruePower, RMS voltage, RMS current, Peak | Active damping control
    Dimensions (WxHxD): 600mm x 624mm x 800mm
    Net weight: 57kg
