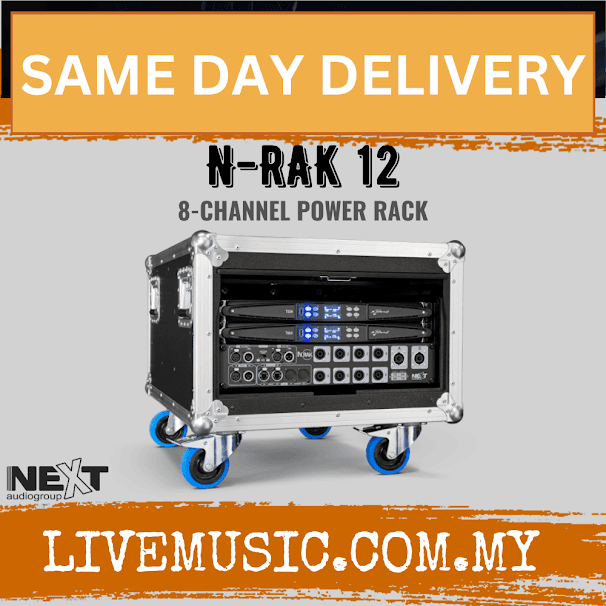

NEXT Audio N-RAK 12 8-Channel Power Rack ( N RAK 12 / NRAK12 )

Description

The N-RAK 12 is a unified rack solution that comes with Dante, AES3 and analog inputs to supposedly simplify the setup process. With the built-in Powersoft amplifier, the rack offers an easy-to-configure, all-in-one amplifier solution that eliminates the need to build amplifier racks. Together with its siblings, the N-RAK 12 offers a solution for all NEXT-proaudio systems, covering signal and power distribution in a plug-and-play touring package.

It includes a compact 4U custom rack with two Powersoft T604s, a 2U front audio distribution panel, a 2U rear power distribution panel, and Armonía software to simplify and standardize control. The digital audio signal management system is based on an ARM Cortex A-8 processor and a TI C6000 DSP platform to provide non-Boolean routing and mixing, multi-stage equalization with raised cosine, IIR and FIR filters and a delay of up to to provide 4 seconds of input processing and 200 ms for time adjustment, gain and polarity adjustment, crossover, peak limiter, TruePower limiter and Active DampingControl.

Technical data

Product Type: 8 Channel Multi-Purpose Power Rack
Frequency response (-6dB): 20 Hz - 20 kHz (±0.5 dB) at 1 W, 8 ?
Number of amplifier channels: 8
Amplifier power - Stereo 8?: 8 x 1500 W
Amplifier power - Stereo 4?: 8 x 1500 W
Amplifier power - Stereo 2?: 8 x 1250 W
Amplifier power - bridge 8?: 4 x 3000 W
Damping factor: >5000 @ 8?, 20Hz - 500Hz
THD+N: <0.1% (typically <0.5%)
IMD: <0.1% (typically <0.5%)
SNR (Signal-to-Noise Ratio): >110dB (20Hz - 20kHz, A-weighted)
Crosstalk: -70dB at 1kHz
Input impedance: 20k? balanced
Delay setting: up to 2s in the input range; up to 100 ms per output for time synchronization
Power supply: Universal, regulated switching mode
Power consumption: 90V - 264V
Mains connection: Neutrik Powercon 32A (built-in socket)
Energy consumption: 10.4 A effective at 230 V | 19 A effective at 120 V (1/8 of maximum power)
Special Features: Filters: Raised Cosine, Custom FIR, Parametric IIR: Peaking, Hi/Lo Shelving, Allpass, Bandpass, Bandstop, Hi/Lo Pass
Limiter: TruePower, RMS voltage, RMS current, peak
Dimensions (WxHxD): 600mm x 530mm x 800mm
Net weight: 58kg

NEXT Audio N-RAK 12 8-Channel Power Rack ( N RAK 12 / NRAK12 )

Product form

RM84,540.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: NRAK12

    Same Day Delivery via Lalamove

    Description

    The N-RAK 12 is a unified rack solution that comes with Dante, AES3 and analog inputs to supposedly simplify the setup process. With the built-in Powersoft amplifier, the rack offers an easy-to-configure, all-in-one amplifier solution that eliminates the need to build amplifier racks. Together with its siblings, the N-RAK 12 offers a solution for all NEXT-proaudio systems, covering signal and power distribution in a plug-and-play touring package.

    It includes a compact 4U custom rack with two Powersoft T604s, a 2U front audio distribution panel, a 2U rear power distribution panel, and Armonía software to simplify and standardize control. The digital audio signal management system is based on an ARM Cortex A-8 processor and a TI C6000 DSP platform to provide non-Boolean routing and mixing, multi-stage equalization with raised cosine, IIR and FIR filters and a delay of up to to provide 4 seconds of input processing and 200 ms for time adjustment, gain and polarity adjustment, crossover, peak limiter, TruePower limiter and Active DampingControl.

    Technical data

    Product Type: 8 Channel Multi-Purpose Power Rack
    Frequency response (-6dB): 20 Hz - 20 kHz (±0.5 dB) at 1 W, 8 ?
    Number of amplifier channels: 8
    Amplifier power - Stereo 8?: 8 x 1500 W
    Amplifier power - Stereo 4?: 8 x 1500 W
    Amplifier power - Stereo 2?: 8 x 1250 W
    Amplifier power - bridge 8?: 4 x 3000 W
    Damping factor: >5000 @ 8?, 20Hz - 500Hz
    THD+N: <0.1% (typically <0.5%)
    IMD: <0.1% (typically <0.5%)
    SNR (Signal-to-Noise Ratio): >110dB (20Hz - 20kHz, A-weighted)
    Crosstalk: -70dB at 1kHz
    Input impedance: 20k? balanced
    Delay setting: up to 2s in the input range; up to 100 ms per output for time synchronization
    Power supply: Universal, regulated switching mode
    Power consumption: 90V - 264V
    Mains connection: Neutrik Powercon 32A (built-in socket)
    Energy consumption: 10.4 A effective at 230 V | 19 A effective at 120 V (1/8 of maximum power)
    Special Features: Filters: Raised Cosine, Custom FIR, Parametric IIR: Peaking, Hi/Lo Shelving, Allpass, Bandpass, Bandstop, Hi/Lo Pass
    Limiter: TruePower, RMS voltage, RMS current, peak
    Dimensions (WxHxD): 600mm x 530mm x 800mm
    Net weight: 58kg
