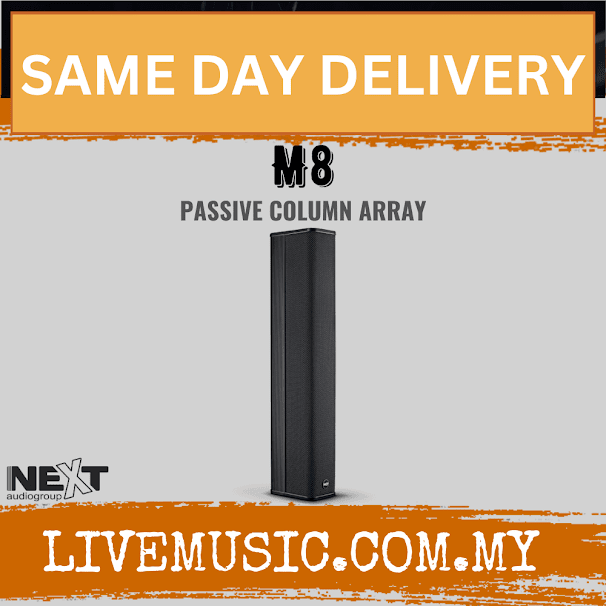

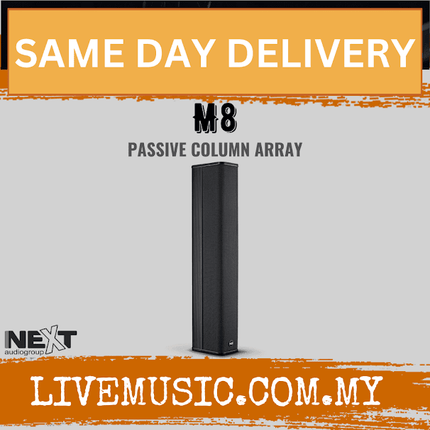

Next Audio M8 Passive Column Array Speaker ( M-8 / M 8 )

Description

FEATURES

  • Variable Beam Shaping
  • Tuned Dipolar Technology
  • High intelligibility at high SPL
  • Vocal and Music Selector
  • 100V – 80W Transformer (optional)



MAIN   CHARACTERISTICS

  • Type: Tuned Dipolar, Variable Beam Straight Line Array
  • Frequency Response (-10dB): 135Hz – 20kHz
  • Eq. Optimization Mode: Vocal or Music (User Selectable)
  • Horizontal Coverage: 90º (+/-20º 1.5-5kHz)
  • Vertical Coverage: 25º(+/-10º 1.2-16kHz) / (+10º/-5º 1.5-16kHz)





Frequency Response (-10dB)

135Hz – 20kHz

Equalizer Optimization Mode

Vocal or Music (User Selectable)

Horizontal Coverage

90º (+/-20º 1.5-5kHz)

Vertical Coverage

25º(+/-10º 1.2-16kHz) / (+10º/-5º 1.5-16kHz)

Sensitivity (1W@1m)

100dB/97dB

Calculated Max. SPL Vocal (Cont/Peak)

126.1dB/129.1dB

Calculated Max. SPL Music (Cont/Peak)

123.1dB/126.1dB

Drivers

Full Range

8 x 3? (70mm)/0.75? (20mm) VC, custom neodymium speaker

Electrical Data

Program/Peak Power

480W

Nominal Impedance

8?

Recommended Amplifier

MA1700

Recommended Subwoofer

HFA115s, HFA115sHP, HFA118sHP

Connectors

4 Pins Screw Connector (IN/OUT)

Enclosure

Construction

Aluminium / Wood / Steel / 3D Fabric

Dimensions (WxHxD)

108 x 685 x 153mm (4.25 x 26.97 x 6.02in)

Net Weight

6.2kg (13.7lb)
