Description

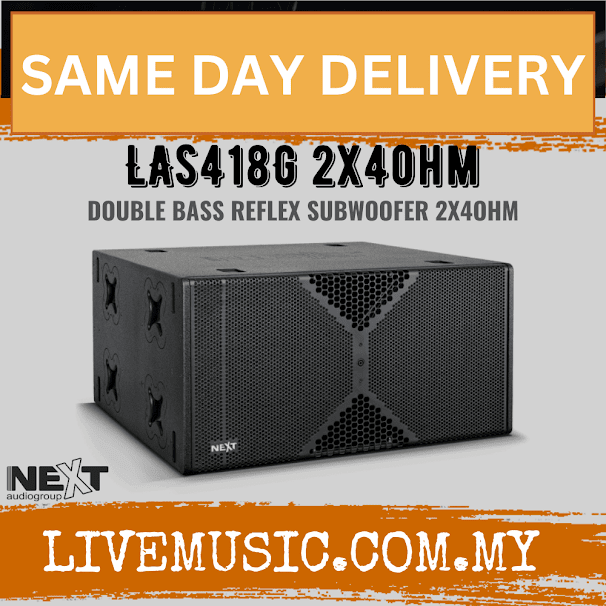

Housing two long excursion and very high power 18" drivers, this Subwoofer has been designed to offer ultra-low frequencies at a very high SPL delivering magnificent precision and punch at incredible pressure levels.
The cabinet volume with optimized port tuning - featuring extremely high peak-to peak excursion capability - is capable of delivering true sub performance down to 24Hz at -10dB. Providing low frequency resolution and a maximum SPL of 143.8dB in a 90kg, front loaded, bass reflex enclosure and measuring 516mm x 920mm x 1030mm (HxDxW), the subwoofer incorporates eight handles.
Housed within a multi-laminate birch plywood enclosure and finished in textured black semi-matte coating, the LAs418G can be deployed in either standard or cardioid configuration using the parallel wired Neutrik NL4 conector on the front of the Subwoofer.
SPECIFICATIONS
Product Type
Passive Very High Power Reflex Subwoofer
Frequency Response (-6dB)
28Hz - 250Hz
Low Frequency Extension (-10dB)
24Hz
Program Power
6000W
Peak Power
12000W (10ms)
Nominal Impedance
2 x 4?
Frequency / Type of X-Over
60Hz to 180Hz | 24dB/oct Linkwitz-Riley (recommended)
Recommended High-Pass Filter
28Hz, 18dB/oct Butterworth
Sensitivity (1W, 1m)
109dB (Half-Space)
Maximum SPL (calculated)
143.8dB / 149.8dB (Half-Space)
Subwoofer Driver
2 x 18" (460mm) / 4.5" (116mm) VC, very high excursion, B&C custom speaker
Input Connectors
1 x Neutrik NL4 on back | 1 Neutrik NL4 on front, parallel wired
Recommended Amplifier
N-RAK
Fittings
16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet
Handles
4 on each side
Grille
Black Perforated Steel
Construction
Heavily braced, 18mm multi-laminate birch ply
Finish
Semi-Matte Black Textured Coating
Dimensions (WxHxD)
1030 x 516 x 920 mm
Net Weight
90kg
Shipping Weight
96.8kg
