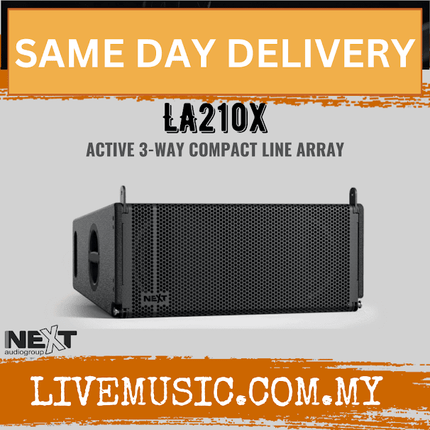

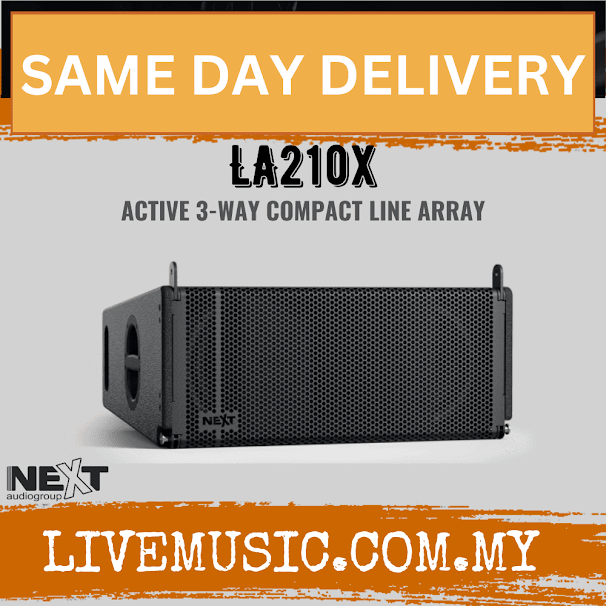

Next Audio LA210X Active 3-way Compact Line Array ( LA 210X / LA-210X )

Description

The LA210x is a medium format three-way, coaxial, active line array element designed to support a wide range of mid to large-sized touring applications and installations where easy to use, from transportation to installation and rigging, are critical. Built-in powerful DSP and amplification eliminates amplifier racks, long loudspeaker cables, and basic system calibration.





Custom made European transducers and a maximally optimized acoustic design provide excellent sound fidelity at very high SPL levels. The LA210x features dual 10-inch (3-inch voice coil) neodymium woofers and a groundbreaking coaxial ring radiator loaded by an exclusively developed OSWG waveguide. This acoustic design delivers exceptional phase coherence and consistent coverage down to 300Hz and the most accurate transient reproduction.





SPECIFICATIONS
Product Type
3-Way Active Line Array Element
Frequency Response (-6dB)
58Hz - 19.000Hz
Low Frequency Extension (-10dB)
54Hz
Nominal Coverage (-6dB)
100º (300Hz - 16kHz) x 10º
RMS Power
2000W (LF:1320W | MF:420W | HF:260W)
Amplifier Technology
3-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
DSP Technology
96kHz / 40 bit SHARC DSP
Latency
1.5ms
DSP Adjustable Parameters
Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
DSP Presets
24
Delay Adjustment
500ms (172m) on Input + 400ms (138m) on Groups
Control Type
Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m
Maximum SPL (calculated)
RMS: 136dB | Peak: 142dB (Full-Space)
Low Frequency Driver
2 x 10" / 3" VC, Neodymium, B&C Custom Speaker
High Frequency Driver
1 x 1.4" Neodymium Coaxial Ring Radiator Driver (MF: 3" VC | HF: 2" VC)
Audio Signal Inputs
Analog | AES (AESOP)
Input Connectors
1 x XLR | 1 x Neutrik EtherCON®
Audio Signal Outputs
Analog | AES (AESOP)
Output Connectors
1 x XLR | 1 x Neutrik EtherCON®
Protections
Clip Limiter | Temperature | Over Current | DC Protection | HF Protection
Operating Temperature Range
0ºC - 40ºC
Cooling Type
External Aluminum Heat Sink with Internal Speed Controlled Fan
Power Supply
UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power Input
AC 100V - 240V 50Hz/60Hz
Mains Connector
Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Power Consumption
275W
Recommended Subwoofer
LAs518A
Special Features
Speaker Cabinet Auto-Identification via Software
Fittings
3-Point Adjustable Rigging System (0º to 10º with 1º Step)
Handles
1 on Each Side, 2 on the Back
Grille
Black Perforated Steel
Construction
15mm Multi-Laminate Birch Plywood
Finish
Semi-Matte Black Textured Coating
Dimensions (WxHxD)
720 x 350 x 550 mm (28.3 x 13.8 x 21.7 in)
Net Weight
37kg (81.6lb)
Shipping Weight
40kg (88.2lb)
Accessories
Transportation Dolly, Ground Stack Accessory, Flying Frame, Pull-Back Accessory

Next Audio LA210X Active 3-way Compact Line Array ( LA 210X / LA-210X )

Product form

RM31,260.00

Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: LA210X

    Description

    The LA210x is a medium format three-way, coaxial, active line array element designed to support a wide range of mid to large-sized touring applications and installations where easy to use, from transportation to installation and rigging, are critical. Built-in powerful DSP and amplification eliminates amplifier racks, long loudspeaker cables, and basic system calibration.





    Custom made European transducers and a maximally optimized acoustic design provide excellent sound fidelity at very high SPL levels. The LA210x features dual 10-inch (3-inch voice coil) neodymium woofers and a groundbreaking coaxial ring radiator loaded by an exclusively developed OSWG waveguide. This acoustic design delivers exceptional phase coherence and consistent coverage down to 300Hz and the most accurate transient reproduction.





    SPECIFICATIONS
    Product Type
    3-Way Active Line Array Element
    Frequency Response (-6dB)
    58Hz - 19.000Hz
    Low Frequency Extension (-10dB)
    54Hz
    Nominal Coverage (-6dB)
    100º (300Hz - 16kHz) x 10º
    RMS Power
    2000W (LF:1320W | MF:420W | HF:260W)
    Amplifier Technology
    3-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
    DSP Technology
    96kHz / 40 bit SHARC DSP
    Latency
    1.5ms
    DSP Adjustable Parameters
    Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
    DSP Presets
    24
    Delay Adjustment
    500ms (172m) on Input + 400ms (138m) on Groups
    Control Type
    Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m
    Maximum SPL (calculated)
    RMS: 136dB | Peak: 142dB (Full-Space)
    Low Frequency Driver
    2 x 10" / 3" VC, Neodymium, B&C Custom Speaker
    High Frequency Driver
    1 x 1.4" Neodymium Coaxial Ring Radiator Driver (MF: 3" VC | HF: 2" VC)
    Audio Signal Inputs
    Analog | AES (AESOP)
    Input Connectors
    1 x XLR | 1 x Neutrik EtherCON®
    Audio Signal Outputs
    Analog | AES (AESOP)
    Output Connectors
    1 x XLR | 1 x Neutrik EtherCON®
    Protections
    Clip Limiter | Temperature | Over Current | DC Protection | HF Protection
    Operating Temperature Range
    0ºC - 40ºC
    Cooling Type
    External Aluminum Heat Sink with Internal Speed Controlled Fan
    Power Supply
    UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
    Power Input
    AC 100V - 240V 50Hz/60Hz
    Mains Connector
    Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
    Power Consumption
    275W
    Recommended Subwoofer
    LAs518A
    Special Features
    Speaker Cabinet Auto-Identification via Software
    Fittings
    3-Point Adjustable Rigging System (0º to 10º with 1º Step)
    Handles
    1 on Each Side, 2 on the Back
    Grille
    Black Perforated Steel
    Construction
    15mm Multi-Laminate Birch Plywood
    Finish
    Semi-Matte Black Textured Coating
    Dimensions (WxHxD)
    720 x 350 x 550 mm (28.3 x 13.8 x 21.7 in)
    Net Weight
    37kg (81.6lb)
    Shipping Weight
    40kg (88.2lb)
    Accessories
    Transportation Dolly, Ground Stack Accessory, Flying Frame, Pull-Back Accessory
