RM17,080.00
SPECIFICATIONS Product Type: Passive 2-Way Line Array Element Frequency Response (-6dB): 58Hz - 19.000Hz Low Frequency Extension (-10dB): 48Hz Nominal... Read more
SKU: LA122v2
SPECIFICATIONS

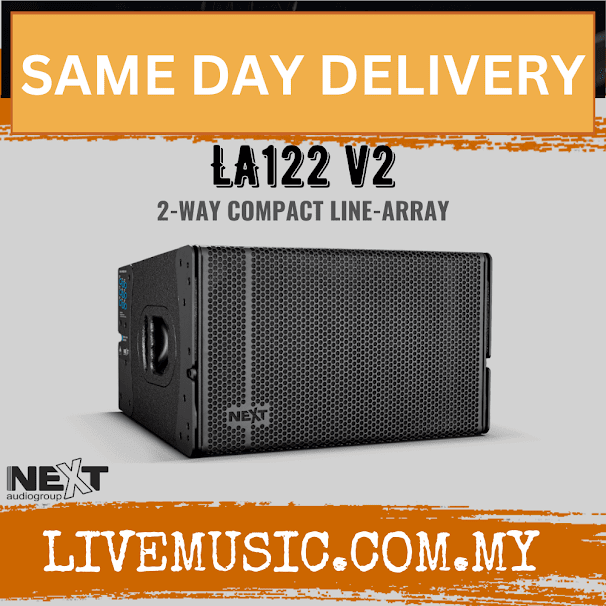

Product Type: Passive 2-Way Line Array Element
Frequency Response (-6dB): 58Hz - 19.000Hz
Low Frequency Extension (-10dB): 48Hz
Nominal Coverage (-6dB): 90º x 8º
LF Nominal Impedance: 8?
HF Nominal Impedance: 16?
Frequency / Type of X-Over: 1150Hz Linkwitz-Riley 48dB/oct
Recommended High-Pass Filter: 45Hz, 18dB/oct Butterworth
LF Sensitivity (1W, 1m): 100dB (Full-Space)
HF Sensitivity (1W, 1m): 108dB (Full-Space)
Maximum SPL (calculated): 129dB / 135dB (Full-Space)
LF Maximum SPL (calculated): 129dB / 135dB (Full-Space)
HF Maximum SPL (calculated): 133dB / 139dB (Full-Space)
Low Frequency Driver: 1 x 12" (300mm)/3" (76mm) VC, Neodymium, B&C custom speaker
High Frequency Driver: 2 x 1.4" (36mm) exit/2.5" (65mm) VC, B&C custom compression driver
Low Frequency Driver Power: Program: 800W / Peak: 1600W (10ms)
High Frequency Driver Power: Program: 320W / Peak: 640W (10ms)
Input Connectors: 2 x Neutrik NL4
Recommended Amplifier: N-RAK
Fittings: Adjustable (0º to 8º) rigging system
Handles: 1 on each side
Grille: Black Perforated Steel
Construction: 15mm Multi-Laminate Birch Plywood
Finish: Semi-Matte Black Textured Coating
Dimensions (WxHxD): 602 x 350 x 465mm
Net Weight: 33kg
Shipping Weight: 35.3kg
