Description

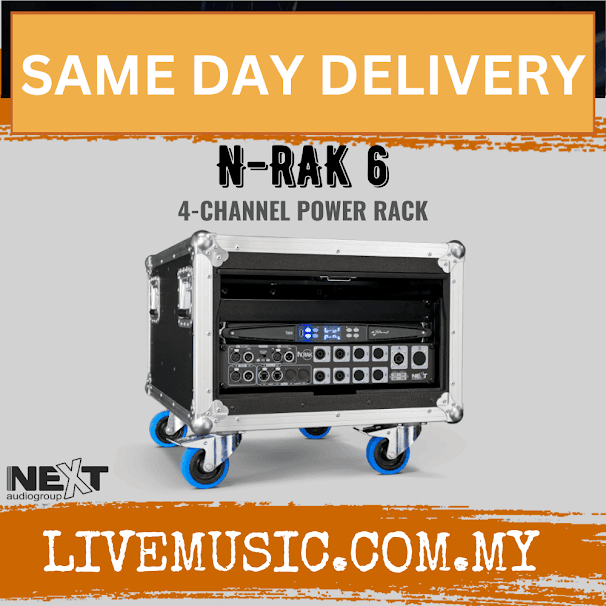

The N-RAK 6 is a compact 4U customised rack with one Powersoft T604.
The N-RAK 6 is a unified rack solution that comes with Dante, AES3 and analogue inputs to reportedly simplify the setup process. With Powersoft amplifier built in, the rack provides an easy-to-configure, all-in-one amplifier solution that eliminates the process of building amp racks. Along with its siblings, the N-RAK 6 offers a solution for all of NEXT-proaudio’s systems covering signal and power distribution in a plug-and-play touring package.
It comprises a compact 4U customized rack with one Powersoft T604, a 2U audio distribution panel on the front, a 2U power distribution panel on the back and Armonía software to simplify and standardize control. The digital audio signal management system is based on an ARM Cortex A-8 processor and TI C6000 DSP platform to provide non-boolean routing and mixing, multi-stage equalisation with raised-cosine, IIR and FIR filters, a delay up to 4s in input processing and 200ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower limiters and Active DampingControl.
SPECIFICATIONS
Product Type 4-Channel Multi-Purpose Power Rack
Frequency Response (-6dB) 20Hz – 20kHz (±0.5dB) @ 1W, 8?
Number of Amplifier Channels 4
Amplifier Power – Stereo 8? 4 x 1500W
Amplifier Power – Stereo 4? 4 x 1500W
Amplifier Power – Stereo 2? 4 x 1250W
Amplifier Power – Bridge 8? 2 x 3000W
Amplifier Power – Bridge 4? 2 x 3000W
Damping Factor >5000 @ 8?, 20Hz – 500Hz
THD+N <0.1% (typical < 0.5%)
IMD <0.1% (typical < 0.5%)
SNR (Signal to Noise Ratio) >110dB (20Hz – 20kHz, A weighted)
Crosstalk -70dB @ 1kHz
Input Impedance 20k? balanced
Delay Adjustment up to 2s on input section; up to 100ms per output for time alignment
Power Supply Universal, regulated switch mode
Power Input 90V – 264V
Mains Connector Neutrik Powercon 32A (Female Panel Socket)
Power Consumption 5.2A rms @ 230V | 9.5A rms @ 120V (1/8 of Maximum Power)
Special Features Filters: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Limiters: TruePower, RMS voltage, RMS current, Peak
Dimensions (WxHxD) 600mm x 530mm x 800mm
Net Weight 49kg
