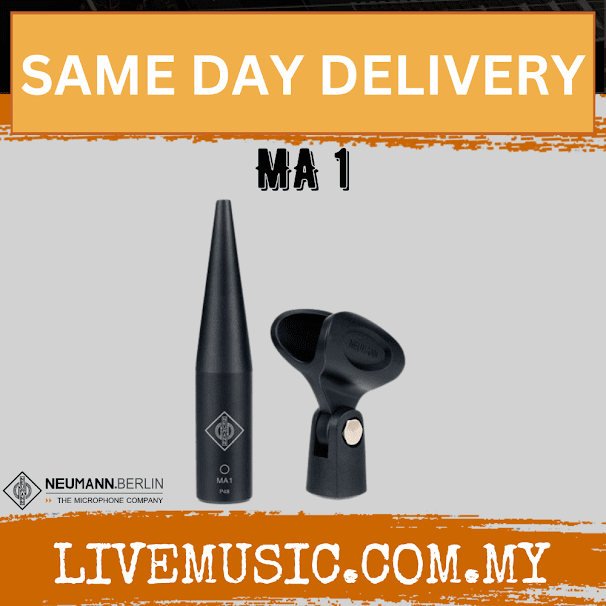

If you can’t hear it, you can’t mix it. We say that a lot here at Music Bliss. We repeat it like a mantra. That’s why Neumann KH-series loudspeaker owners owe it to themselves to add the Neumann MA 1 to their monitoring chain. This cutting-edge automatic monitor alignment system employs advanced speaker calibration algorithms developed in cooperation with Fraunhofer IIS, along with an individually calibrated measurement microphone, to optimize the frequency curve, amplitude, and phase of your monitors. This streamlined speaker optimization system stores its calibration data directly in your DSP-powered KH-series studio monitors, so you won’t need to futz around with a clunky plug-in to make it work. If you demand optimal sound quality in every mixing environment, the Neumann MA 1 automatic monitor alignment system delivers, with convenient, set-it-and-forget-it simplicity.

FEATURES

• Provides automatic monitor alignment for KH 80 DSP loudspeakers or non-DSP KH monitors via a KH 750 DSP subwoofer
• Employs calibration algorithms developed in cooperation with Fraunhofer IIS
• Comes with an individually calibrated measurement microphone
• Adjusts the frequency curve of your DSP-powered monitors
• Optimizes the amplitude response and phase of all the speakers in your setup
• Calibration settings stored directly inside of your DSP-powered monitors — no plug-in required
• Ethernet connections may be disconnected after optimization has been completed

SPECIFICATIONS

• Microphone Type: Pressure Transducer
• Polar Pattern: Omnidirectional
• Frequency Response: 20Hz-20kHz
• Max SPL: 132dB
• Output Impedance: 50 ohms
• Signal to Noise Ratio: 67dB (A weighted)
• Self Noise: 27dB (A weighted)
• Sensitivity: 30mV/Pa (-30 dB)
• Connector: XLR
• Dimensions: 4.60" x 0.90"
• Weight: 0.08 lbs.
