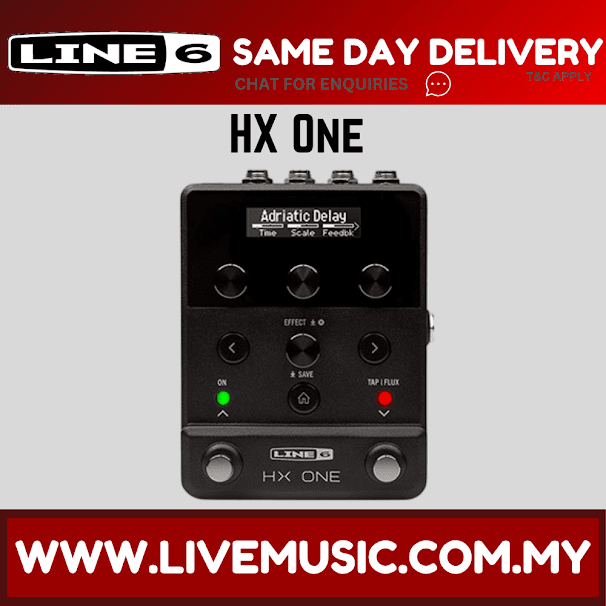

Boasting 250+ stunning effects emulations, the HX One merges Line 6’s world-renowned HX technology with the workflow and form factor of a traditional stompbox. This stereo multi-effects floor processor offers a superbly straightforward approach similar to a standard guitar pedal, with one effect available at a time to keep things simple and efficient onstage and in the studio. A high-visibility OLED screen and tactile controls deliver an inviting and easy-to-navigate feel, from dialing one of your 128 onboard presets to adjusting the HX One’s adjustable impedance and buffer settings. You also get an extensive I/O section and versatile control options, including two 8-pin MIDI In/Out-Thru ports, USB-C for the HX One Librarian app, footswitch/expression jack capabilities, and a Flux/Tap switch to access tap tempo and automatic parameter shifts. No matter what type of rig you’re running, the Line 6 HX One’s vast effects library and easy operation unlock a whole new realm of sonic possibilities.

• Pedal Type:Multi-FX
• Analog/Digital:Digital
• Presets:128 User
• Number of Effects:268 models
• Effects Types:59 x Dist, 26 x Dynamic/EQ, 56 x Mod, 45 x Delay, 29 x Pitch/Synth, 25 x Wah/Filter
• Looper:Up to 120 seconds (1/2 speed), Up to 60 seconds (full speed)
• Inputs:2 x 1/4" TS (L/Mono, R)
• Outputs:2 x 1/4" TS (L/Mono, R)
• MIDI I/O:2 x 5-pin DIN (In, Out/Thru), USB
• USB:1 x Type C (Updates, Midi)
• Other I/O:1 x 1/4" TRS (Expression, Footswitch)
• Expression Control:Yes
• True Bypass:Yes, Switchable
• Bypass Switching:True Bypass, Buffered DSP Bypass
• Features:Adjustable Input Impedance
• Software:Line 6 HX One Librarian, Line 6 Central
• Power Source:9V DC (500mA) power supply (included)
• Height:2.4"
• Width:3.8"
• Depth:4.9"
• Weight:0.99 lbs.
• Manufacturer Part Number:99-040-0705
