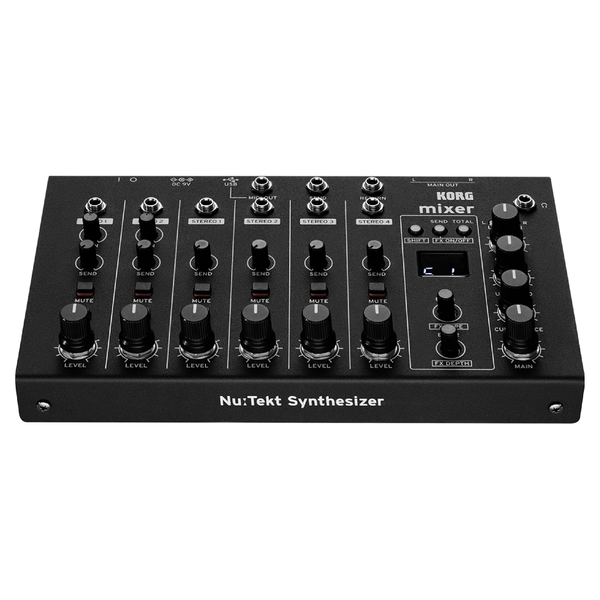

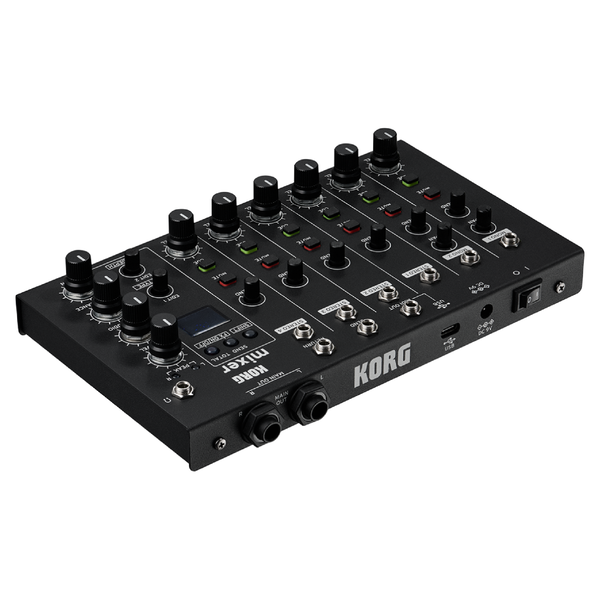

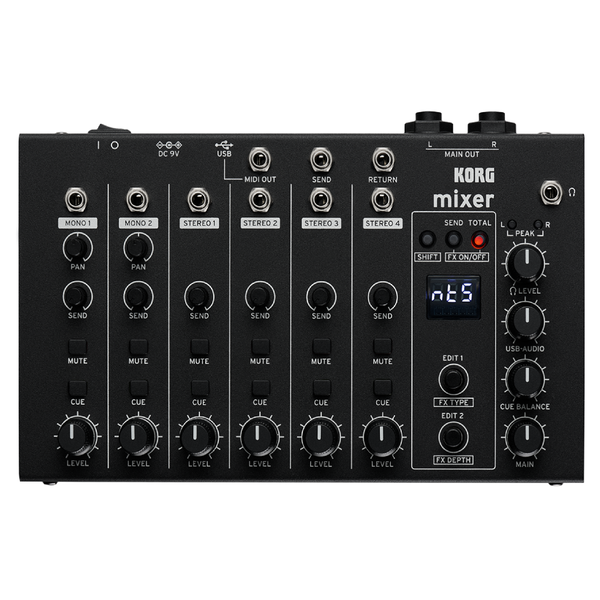

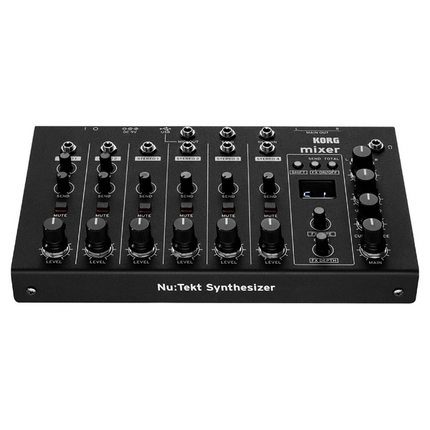

Korg Nu:Tekt NTS-4 Performance Mixer Kit Ultimate 10-Signal Desktop Hub ( NTS4 NTS 4 )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE SELF PICKUP WITHIN KLANG VALLEY / KL AREA
- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option 'Standard Delivery' and all orders will be shipped out on timely manner.

*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



Features:
• 6-channel mixer matrix with 4 stereo inputs and 2 mono inputs for up to 10 audio signals simultaneously
• 100% solderless DIY kit assembly using prefabricated PCBs and mechanical components
• Dual independent stereo effects engines with 7 per-channel Send FX options and 10 master Total FX processing suites
• Internal hardware attenuator jumper pins for switching between line level and Eurorack modular level
• Dedicated CUE and MUTE buttons on every channel for instant sound isolation and performance control
• USB Type-C interface with 48 kHz / 24-bit digital audio interface and MIDI bridge functionality
• Heavy-duty steel chassis for stable desktop operation
• Professional 1/4-inch main outputs for reliable connection to PA systems and monitors

Specifications:
• Product Type: Compact DIY user-assembled performance desktop mixer kit
• Assembly: Self-assembly using included plates and boards, with no soldering or specialized tools required
• Signal Input Capacity: Up to 10 audio signals simultaneously
• Input Channels: 6 channels total, including 4 × 1/8-inch stereo minijacks and 2 × 1/8-inch mono minijacks
• Input Level: Switchable between standard line level and Eurorack modular level via internal jumper

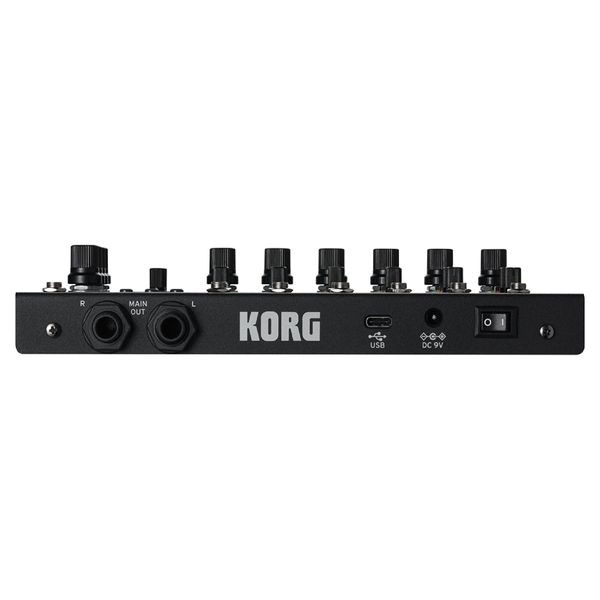

• Main Outputs: 2 × 1/4-inch unbalanced phone jacks (L/Mono, R)
• FX Loop: 1 × 1/8-inch stereo Send, 1 × 1/8-inch stereo Return
• Headphone Output: 1 × 1/8-inch TRS stereo output
• Digital Audio: 24-bit / 48 kHz
• USB: 1 × USB Type-C for audio interface, USB-MIDI data, and power
• MIDI: 1 × 3.5mm TRS MIDI Out
• Controls: 10 × rotary pots for Level, Send, Pan, and Master settings
• Channel Controls: Dedicated CUE and MUTE buttons per channel
• Power: DC 5V / 500 mA via USB-C or 9V AC adapter, sold separately
• Construction: Solder-free structural steel chassis with included component boards
