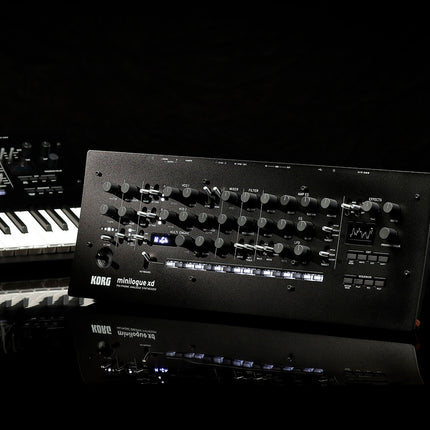

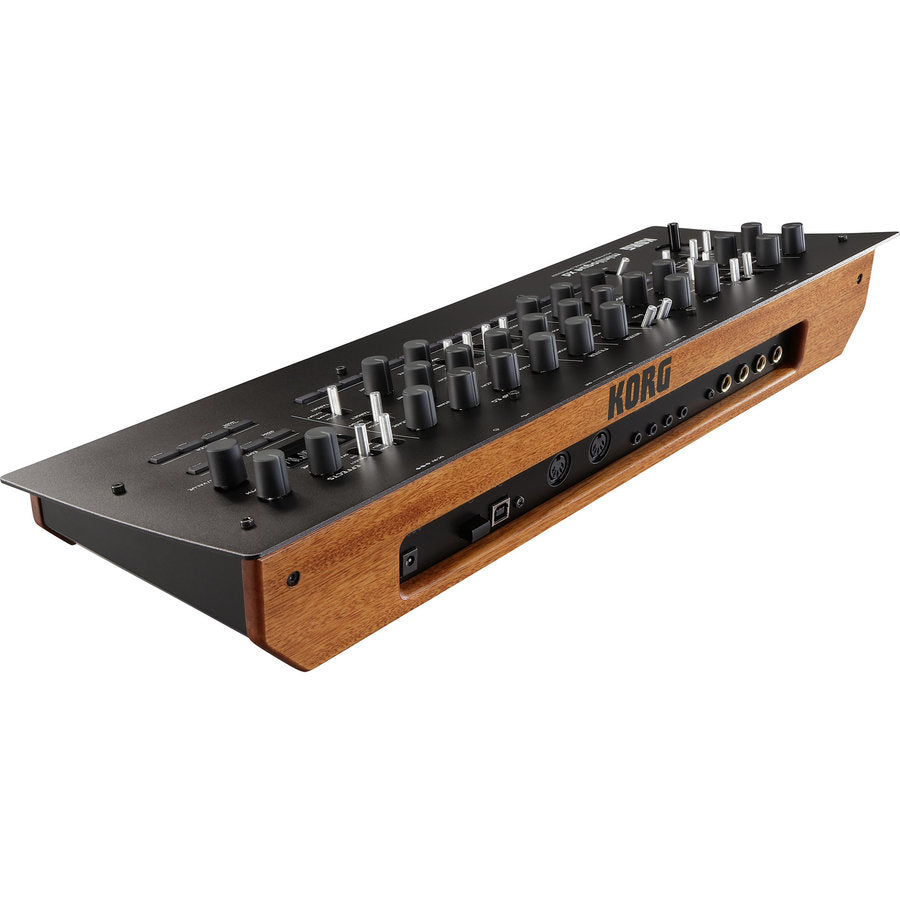

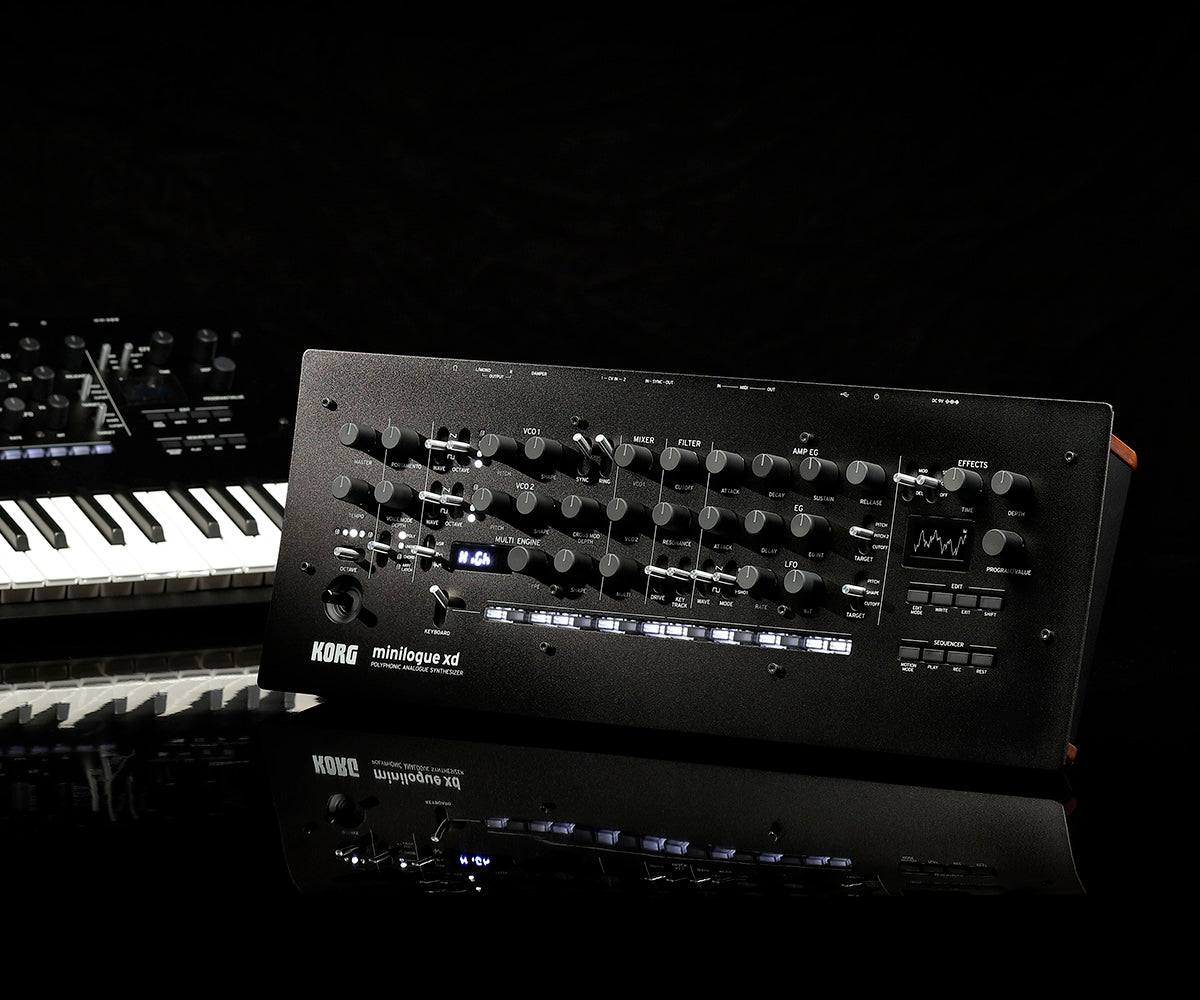

Korg Minilogue XD 4-voice Analog Synthesizer Module (Minilogue-XD-Module/MinilogueXD)

Description





The Korg minilogue XD module is the desktop module version of the company's acclaimed minilogue XD keyboard synth. A 4-voice synth with two analog VCOs plus a customizable digital Multi Engine and built-in stereo digital effects, the minilogue XD module is equipped with the exact same control set as the keyboard-equipped version.

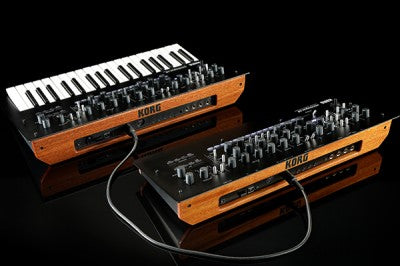

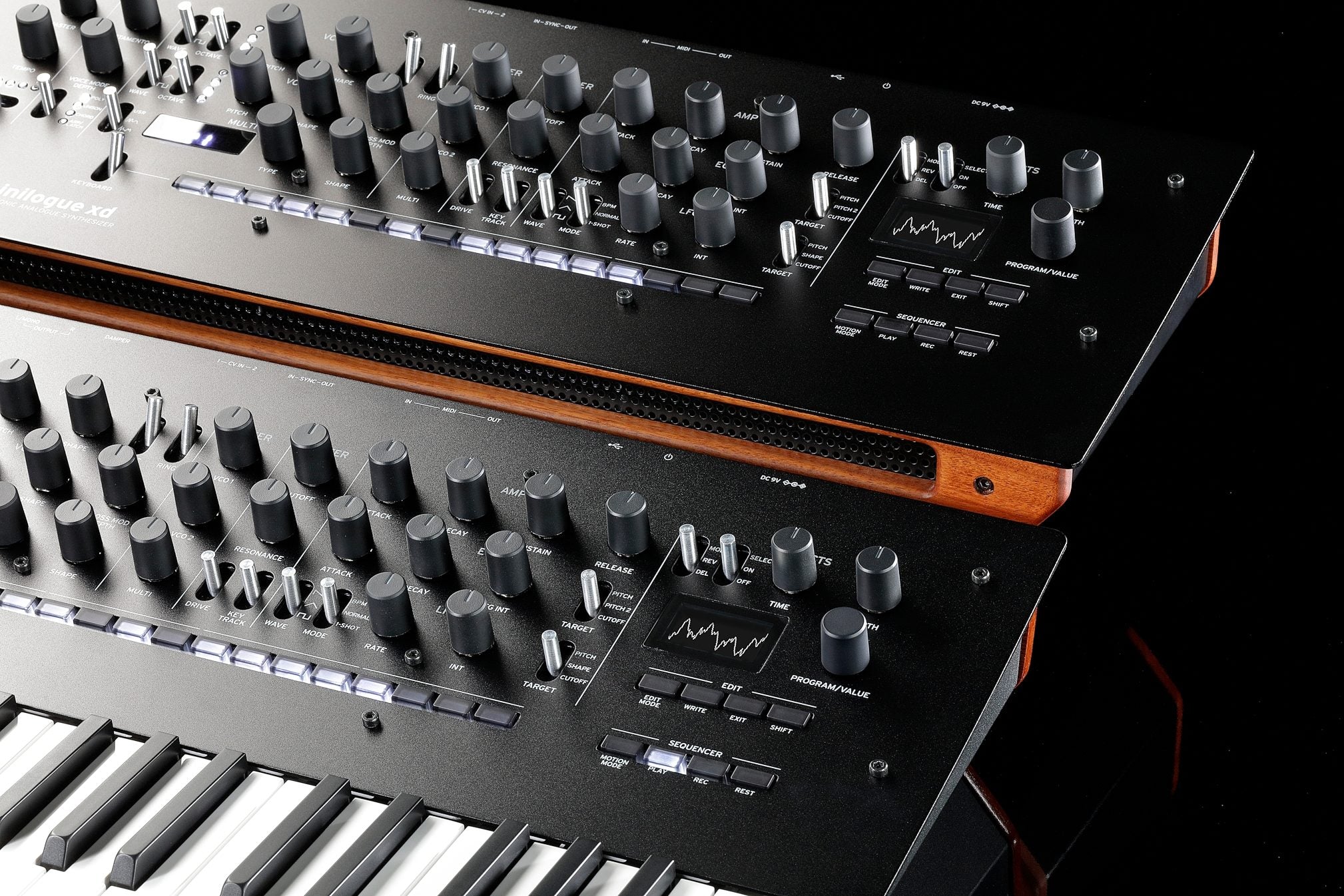

The minilogue XD module features a Poly Chain function that lets you connect it with another minilogue XD keyboard or XD module so that the two units can operate as a polysynth with a total of up to eight voices. To synthesists at Music Bliss, Korg's building-block approach makes a lot of sense: it's not only a simple way to add a sound module to your studio DAW setup, but it also makes it easy to include a polyphonic analog synth in your onstage rig.





FEATURES





  • 4-voice hybrid analog/digital synthesizer module
  • 2 VCOs plus digital Multi Engine
  • Studio-grade digital effects: modulation effects, reverb, and delay
  • 16-step motion sequencer with Keyboard mode
  • Micro tuning; Portamento knob
  • Voice Mode Depth, Tempo knobs
  • Joystick modifies different parameters for each program
  • Poly Chain function lets 2 minilogue XD units play as an 8-voice polyphonic synth
  • CV/Gate, Damper pedal inputs
  • 1/4" stereo out, headphone jacks
  • USB-to-host





SPECIFICATIONS





  • Type:Desktop Synthesizer
  • Analog/Digital:Hybrid
  • Pads:16 x Step Buttons, Keyboard Mode
  • Other Controllers:Joystick
  • Polyphony:4 Notes
  • Presets:500 Voices (200 factory, 300 user)
  • Oscillators:2 x Analog VCO (sawtooth, triangle, square), 1 x Digital (noise, vpm, user)
  • Envelope Generator:1 x AMP EG (ADSR), 1 x EG (attack, decay, EG int, target)
  • LFO:1 x LFO (sawtooth, triangle, square), BPM, Normal, 1-shot
  • Filter:Sharp Two-pole
  • Effects Types:Chorus, Phaser, Flanger, Delay, Reverb, Ensemble
  • Arpeggiator:4-voice with Latch mode
  • Sequencer:16-step Polyphonic Sequencer, Motion Sequence, Realtime Recording
  • MIDI I/O:In/Out
  • Other I/O:2 x CV in, Sync in, Sync out
  • Pedal Inputs:1 x 1/4" (damper)
  • USB:1 x Type B
  • Software:Minilogue Librarian Software
  • Power Supply:9V DC power supply (included)
  • Height:3.35"
  • Width:19.69"
  • Depth:7.05
  • Weight:5.73 lbs.
