Description

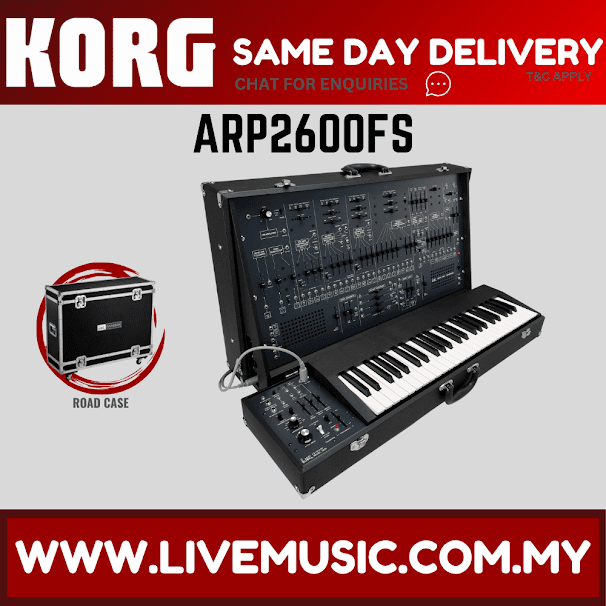

The ARP 2600 is brought back to life in a single, one-time-only production run. Now is your opportunity to own one of the most sought after and coveted instruments from the vintage synthesizer era. This limited-edition release is a loving reproduction of the 2600, handcrafted in Japan and includes USB and DIN-style MIDI connections, XLR audio outputs, plus the improved ARP 3620 Duophonic Keyboard with an added arpeggiator / sequencer. Your new ARP 2600 will arrive in a custom-branded hard shell case, complete with casters.
Specs:
- Operating temperature range: 0 – +40 °C (non condensing)
- Maximum Polyphony: 2 voices for duo phonic; normally monophonic
VCO-1 (Voltage Controlled Oscilator 1)
- Waveforms: Sawtooth, square
- Frequency range:
- Approx. 0.03 Hz – 30 Hz (low freq. mode)
- Approx. 10 Hz - 10 kHz (audio mode)
- Voltage controlled response: 1 V/oct.
VCO-2 (Voltage Controlled Oscilator 2)
- Waveforms: Sawtooth, pulse (dynamic pulse), triangle, sine
- Frequency range:
- Approx. 0.03 Hz – 30 Hz (low freq. mode)
- Approx. 10 Hz – 10 kHz (audio mode)
- Pulse width: 10% – 90%
- Voltage controlled response: 1 V/oct.
VCO-3 (Voltage Controlled Oscilator 3)
- Waveforms: Sawtooth, pulse (dynamic pulse)
- Frequency range:
- Approx. 0.03 Hz - 30 Hz (low freq. mode)
- Approx. 10 Hz - 10 kHz (audio mode)
- Pulse width: 10% – 90%
- Voltage controlled response: 1 V/oct.
VCF (Voltage Controlled Filter)
- Type: Low-pass (TYPE I : early 24 dB/oct.,
- TYPE II: late 24 dB/oct.)
- Frequency range: Approx. 10 Hz – 10 kHz
- Resonance: 1/2 - self oscillate
VCA (Voltage Controlled Amplifier)
- Control voltage:
- AR type (internally connected)
- ADSR type (internally connected)
- Noise generator: Noise spectrum types (white and pink)
RING MODULATOR
- Type: Analog multiplier
- Input signal (Internally connected): VCO-1 sawtooth wave, VCO-2 sine wave
SAMPLE & HOLD
- Sampled signal: Noise (internally connected)
- Troubleshooting
AUDIO OUTPUT JACKS
- Front Panel (LEFT, RIGHT OUTPUT jacks)
- Connector: 3.5 mm monaural phone jack
- Maximum output level: +9 dBu @ 10 kOhms load
- Output impedance: 1.2 kOhms
Side Panel R
- Connector: XLR connector
- Maximum output level: +4 dBu @ 600Ohms load
- Output impedance: 1.2 kOhms
HEADPHONES JACK
- Connector: 6.3 mm stereo phone jack
- Maximum output level: 50 mW + 50 mW @ 33Ohms load
- Output impedance: 20Ohms
EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
- Connector: 3.5 mm monaural phone jack
- Maximum input level: 10 dBu
- Input impedance: 100 kOhms
- MIDI connector: IN, OUT, THRU
- USB port: Type B
ARP 3620 (keyboard unit)
- Keyboard: 49-note (with aftertouch, no velocity sensitivity)
CV output voltage:
- UPPER VOICE 3 V – +10 V, 1 V/oct.
- LOWER VOICE 3 V – +7 V, 1 V/oct.
LFO output voltage:
- TRIANGLE ±5 V, 10 Vp-p
- SQUARE WAVE +10 V, 10 Vp-p
- DELAYED SINE WAVE ±3 V, 6 Vp-p
- EXTERNAL VIBRATO input voltage: Max. ±10 V
- VIBRATO DEPTH slider: Max. 1 octave
- VIBRATO DELAY slider: 0 – 2.5 sec
- LFO SPEED slider: Approx. 0.25 – 25 Hz
- PITCH BEND control: ±1 octave
- TRANSPOSE switch: ±2 octave
- PORTAMENTO SPEED slider: Maximum speed: about 0.25 msec/oct
- Minimum speed: about 0.5 sec/oct
- PORTAMENTO foot switch: KORG PS-1/PS-3 pedal switch
- INTERVAL foot switch: KORG PS-1/PS-3 pedal switch
- GATE output voltage
- (on ARP 2600 FS panel): 0 V at all keys up, +10 V at key on
TRIGGER output voltage
- (on ARP 2600 FS panel): +10 V, 0.5 ms pulse wave at key on
- Arpeggiator: OFF, AUTO, UP, DOWN, UP&DOWN, RANDOM, SEQ PLAY
General
- Power supply: AC power supply terminal
- Power consumption: 30 W
Dimensions (W x D x H), Weight:
- ARP 2600 FS: 836 x 232 x 509 mm / 32.9 x 9.13 x 20.0 inches, 19.3 kg / 42.55 lbs.
- ARP 3620: 914 x 274 x 158 mm / 36.0 x 10.8 x 6.2 inches,11.3 kg / 24.91 lbs.
- Included items: Road case, casters (4), AC power cord, 8-pin DIN cable, Mini-phone cable, Owner’s manual, Original English manual (replica)
- Accessories (Sold separately): KORG PS-1/PS-3 pedal switch
