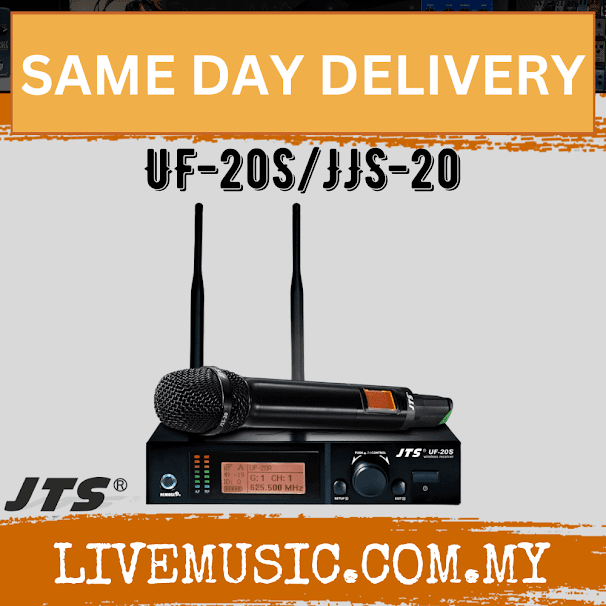

JTS UF-20S/JJS-20 Single channel wideband true diversity wireless system ( Handheld transmitter with cardiod capsule )

Description

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:
* The is now not only sends the
frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer



Frequency Preparation

 PLL Synthesized Control
Frequency Setting  JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 470~960 MHz
Channel Single
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1U/2U standard metal chassis
Preset Channels / Group

* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dB?V, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600?
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 212mm(W)x44Mmm(H)x213.9mm(D)
Notes

Actual product specifications may vary depending on model and region.





JTS UF-20S/JJS-20 Single channel wideband true diversity wireless system ( Handheld transmitter with cardiod capsule )

Product form

RM3,550.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: UF-20S/JJS-20

    Same Day Delivery via Lalamove

    Description

    * UHF True diversity technology renders 200-480 meters of operation distance
    * Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
    * Preset 15 groups each of up to 63 compatible channels
    * User programmable 6 groups each of 64 channels
    * Free space scan function
    * JTS Patented obstacle-free RF
    function synchronizes a transmitter by pushing a button
    * JTS LCX circuit design technology minimizes companding noise

    NEWEST FEATURE:
    * The is now not only sends the
    frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
    * RF “NO SIGNAL” alert function.
    * AF “MUTE” alert function.
    * Transmitter “LOW BATTERY” alert function.
    * Built in equalizer



    Frequency Preparation

    		 PLL Synthesized Control
    Frequency Setting  JTS patented obstacles-free RF REMOSET
    Carrier Frequency Range UHF 470~960 MHz
    Channel Single
    Bandwidth 60~75MHz Wideband
    S / N Ratio > 108dB (A)
    T.H.D <0.5% @ 1KHz
    Chassis 1U/2U standard metal chassis
    Preset Channels / Group

    * From group 1 ~ 15 up to 63 interference-free compatible channels.
    * 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
    * User programmable from U1 ~ U6 each of 64 channels reserved.
    Display LCD
    Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
    Sensitivity 6dB?V, at S / N> 80dB
    Receiving Mode True diversity
    Audio Output Level Maximum 6dBu
    Receiving Mode True diversity
    Audio Output Level Maximum 6dBu
    AF Output Impedance 600?
    Frequency Response 50Hz ~ 18kHz, with high-pass filter
    Squelch Pilot Tone & Noise Mute
    Power Supply 100 ~ 240V or 12V DC
    Output Connector 1 XLR Balanced Socket
    1 Ø6.3mm Unbalanced phone jack
    Dimension (m / m) 212mm(W)x44Mmm(H)x213.9mm(D)
    Notes

    Actual product specifications may vary depending on model and region.
