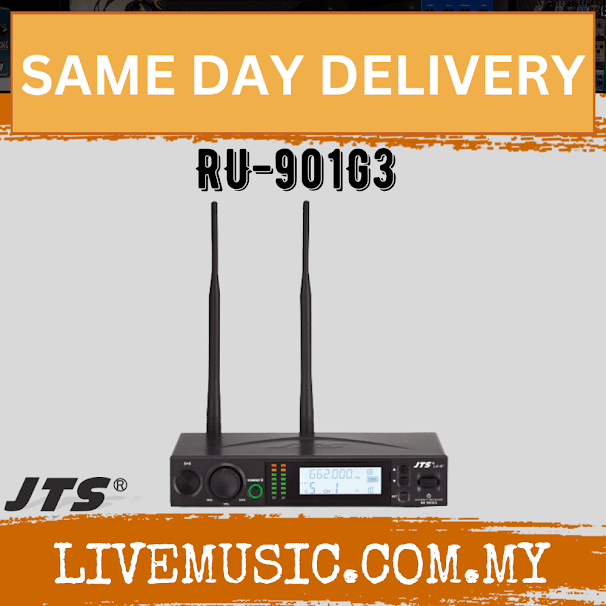

JTS RU-901G3 UHF PLL single channel true diversity receiver ( RU901G3 / RU 901G3 )

Description

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.



* RU-901G3 is for medium and large venue



Frequency Preparation

PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Frequency Setting Remoset U Ultrasonic
Receiving Mode True Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6% @ 1KHz
Sensitivity -95dBm, S/N>80dB
CMRR >80 dB
Audio Frequency Response 50Hz~18KHz±2dB
Antenna BNC (F)
Antenna Bosster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
Controls  Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
Audio Output Level Ref:±22.5KHz Dev@1KHz Tone?6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)?-24dBV(MIC)
AF Output Impedance 600?
Squelch Pilot Tone & Noise Mute
Output Connector Balanced XLR Socket x1 / Unbalanced ?6.3mm PHONE JACK x1
Power Supply DC12~15V/500mA
Dimension (m / m) 212.3mm(W)*38.3mm(H)* 144mm(D)
Notes Actual product specifications may vary depending on region.

JTS RU-901G3 UHF PLL single channel true diversity receiver ( RU901G3 / RU 901G3 )

Product form

RM1,140.00

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of... Read more

SKU: RU-901G3

    Description

    RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.



    * RU-901G3 is for medium and large venue



    Frequency Preparation

    PLL Synthesized Control
    Carrier Frequency Range UHF 470~960 MHz
    Frequency Setting Remoset U Ultrasonic
    Receiving Mode True Diversity
    Bandwidth 36MHz
    S/N Ratio > 105dB
    T.H.D <0.6% @ 1KHz
    Sensitivity -95dBm, S/N>80dB
    CMRR >80 dB
    Audio Frequency Response 50Hz~18KHz±2dB
    Antenna BNC (F)
    Antenna Bosster Power DC12~15V/100mA
    Display LCD
    Display Contents Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
    Controls  Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
    Audio Output Level Ref:±22.5KHz Dev@1KHz Tone?6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)?-24dBV(MIC)
    AF Output Impedance 600?
    Squelch Pilot Tone & Noise Mute
    Output Connector Balanced XLR Socket x1 / Unbalanced ?6.3mm PHONE JACK x1
    Power Supply DC12~15V/500mA
    Dimension (m / m) 212.3mm(W)*38.3mm(H)* 144mm(D)
    Notes Actual product specifications may vary depending on region.
