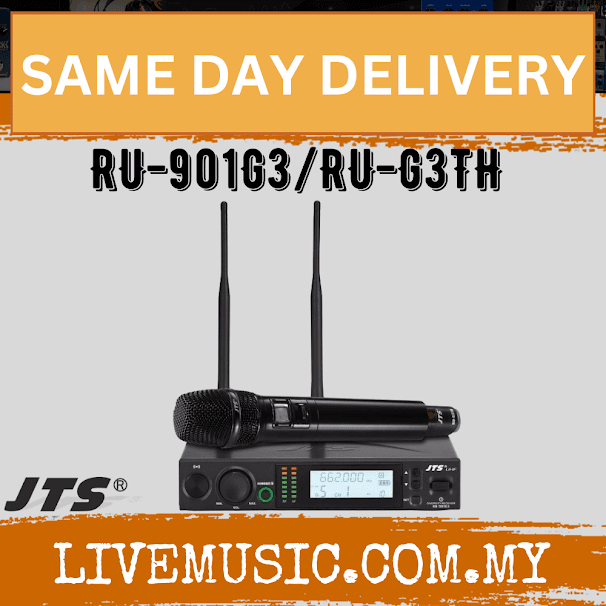

JTS RU-901G3/RU-G3TH UHF PLL single channel true diversity receiver with handheld transmitter

Description

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. Scan function is also provided.

* RU-901G3 is for medium and large venue

RU-901G3

Frequency Preparation

 PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Frequency Setting Remoset U Ultrasonic
Receiving Mode True Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6% @ 1KHz
Sensitivity -95dBm, S/N>80dB
CMRR >80 dB
Audio Frequency Response 50Hz~18KHz±2dB
Antenna BNC (F)
Antenna Bosster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
Controls  Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
Audio Output Level Ref:±22.5KHz Dev@1KHz Tone?6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)?-24dBV(MIC)
AF Output Impedance 600?
Squelch Pilot Tone & Noise Mute
Output Connector Balanced XLR Socket x1 / Unbalanced ?6.3mm PHONE JACK x1
Power Supply DC12~15V/500mA
Dimension (m / m) 212.3mm(W)*38.3mm(H)* 144mm(D)
Notes

Actual product specifications may vary depending on region.



* 1441 Selectable channels.
* Phase-locked Loop (PLL) synthesized tuner.
* Advanced circuitry ensures stable signal transmission.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Internal antenna design.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Frequency Setting Remoset U Ultrasonic
RF Outputs Low/High
Stability <±10KHz@ Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Display LCD+LED
Controls Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
Battery UM3, AA x2
Slot-in Charging Yes
Dimensions 50(W) x 253(H) x 35.5(D)
Notes Actual product specifications may vary depending on model and region.
