RM2,210.00
Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio... Read more

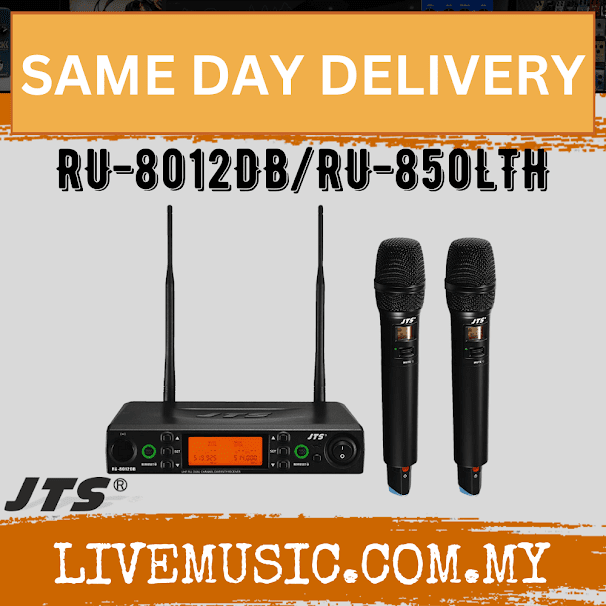

SKU: RU-8012DB/RU-850LTH
Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| Frequency Setting | Ultrasonic / REMOSET (Transmit) |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | > 105dB |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 50Hz~16KHz±2dB |
| Antenna Type | BNC Socket |
| Antenna Booster Power | DC12~15V/100mA |
| Display Contents | Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status |
| Display | LCD |
| Controls | Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone ?6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) . -24dBV(MIC) |
| AF Output Impedance | 600? |
| Squelch | Pilot Tone, Noise and Mute |
| Output Connector | 2 independent balanced XLR and 2 Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/500mA |
| Dimension(m/m) |
212.3mm(W)* 38.3mm(H)* 144mm(D) |
This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.
A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960MHz |
| Frequency Setting | REMOSET U(Receive) |
| RF Outpus | Low / High |
| Stability | <±10KHz@Fc |
| Frequency Deviation | ±48KHz |
| Spurious Emissions | <-50dBc |
| Function | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD+LED |
| Controls | Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |
