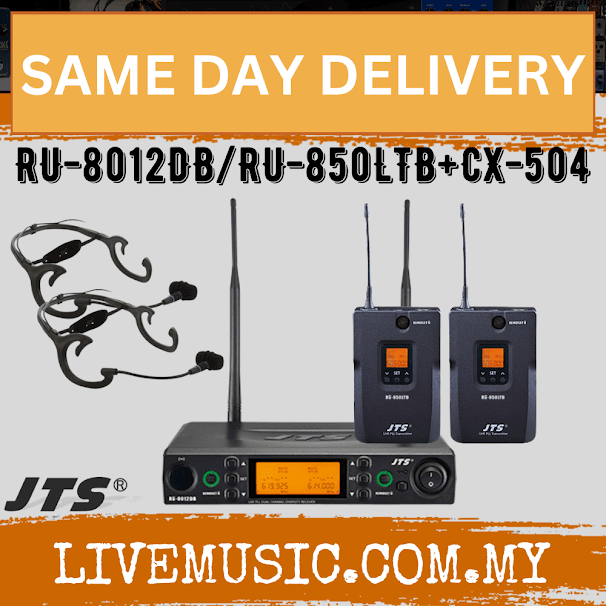

JTS RU-8012DB/RU-850LTB+CX-504 Dual channel PLL diversity detachable antenna receiver with 2x Plastic Bodypack transmitter + headworn microphone

Description

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand




general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display,
AF Meter, RF Meter, Battery Status
Display LCD
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on, Output Pad
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
?6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) . -24dBV(MIC)
AF Output Impedance 600?
Squelch Pilot Tone, Noise and Mute
Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension(m/m) 212.3mm(W)* 38.3mm(H)* 144mm(D)



RU-850LTB

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LCD + LED
Input Connector 4P Mini XR
Controls Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery UM3, AA x2



 CX-504

* Uni-direction for high-quality voice pick-up.
* Excellent gain-before-feedback and noise isolation.
* Lightweight benefits great freedom and mobility.
* Ergonomic design ensures comfortable wearing.



Connector 4P Mini XLR
Frequency Response 30~18,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -68±3 dB* (0.4mV)*0dB=1V/?bar
Impedance 680?
Max. SPL for 1% THD 130dB
Dimension(mm) 285mm(W)* 55mm(H)* 111.3mm(D)
Net Weight 56.3 grams
