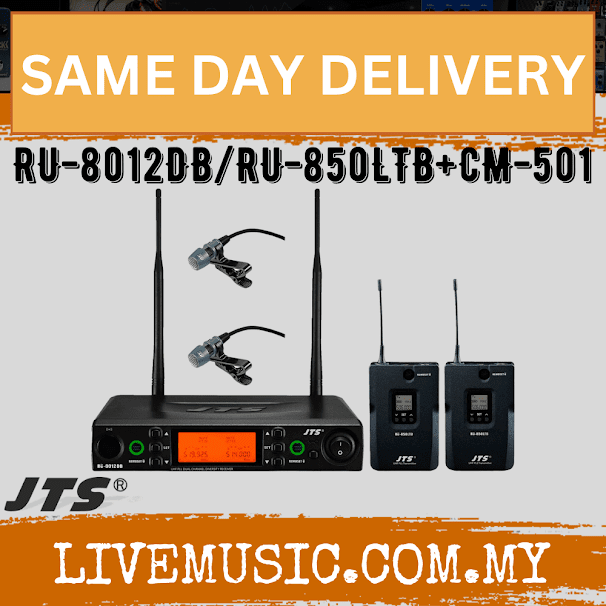

JTS RU-8012DB/RU-850LTB+CM-501 Dual channel PLL diversity detachable antenna receiver with 2x Plastic Bodypack transmitter + lavaliere microphone

Description

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display,
AF Meter, RF Meter, Battery Status
Display LCD
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on, Output Pad
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
?6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) . -24dBV(MIC)
AF Output Impedance 600?
Squelch Pilot Tone, Noise and Mute
Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension(m/m)

212.3mm(W)* 38.3mm(H)* 144mm(D)



 RU-850LTB



This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LCD + LED
Input Connector 4P Mini XR
Controls Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery

UM3, AA x2



 CM-501



* Uni-direction for high-quality voice pick-up.
* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.



Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
Impedance 2.2k?
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g

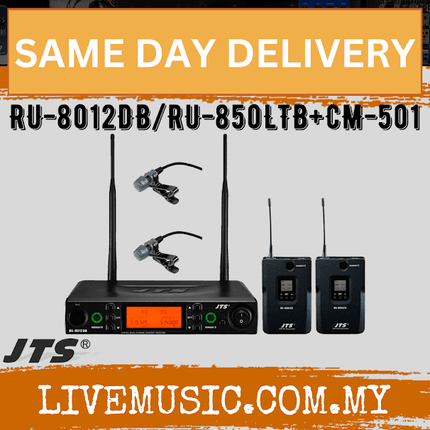

JTS RU-8012DB/RU-850LTB+CM-501 Dual channel PLL diversity detachable antenna receiver with 2x Plastic Bodypack transmitter + lavaliere microphone

Product form

RM2,210.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: RU-8012DB/RU-850LTB+CM-501

    Same Day Delivery via Lalamove

    Description

    Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
    general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.



    Frequency Preparation PLL Synthesized Control
    Carrier Frequency Range 470~960 MHz
    Frequency Setting Ultrasonic / REMOSET (Transmit)
    Receiving Mode Antenna Diversity
    Bandwidth 36MHz
    S/N Ratio > 105dB
    T.H.D <0.6%@1KHz
    Sensitivity -95dBm,S/N>80dB
    Rejection Ratio >80 dB
    Frequency Response 50Hz~16KHz±2dB
    Antenna Type BNC Socket
    Antenna Booster Power DC12~15V/100mA
    Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display,
    AF Meter, RF Meter, Battery Status
    Display LCD
    Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency
    Scan, Audio Level, Lock-on, Output Pad
    Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
    ?6.3 Phone Jack/ -10dBV
    XLR Jack/ -4dBV(Line) . -24dBV(MIC)
    AF Output Impedance 600?
    Squelch Pilot Tone, Noise and Mute
    Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
    Power Supply DC12~15V/500mA
    Dimension(m/m)

    212.3mm(W)* 38.3mm(H)* 144mm(D)



     RU-850LTB



    This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

    To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.



    Frequency Preparation PLL Synthesized Control
    Carrier Frequency Range 470~960MHz
    Frequency Setting REMOSET U(Receive)
    RF Outpus Low / High
    Stability <±10KHz@Fc
    Frequency Deviation ±48KHz
    Spurious Emissions <-50dBc
    Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
    Display LCD + LED
    Input Connector 4P Mini XR
    Controls Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
    Battery

    UM3, AA x2



     CM-501



    * Uni-direction for high-quality voice pick-up.
    * Wide dynamic range and frequency response for excellent sound reinforcement.
    * Small size for minimum visibility.
    * Together with clip for easy attaching to a tie, lapel, dress etc.



    Connector 4P Mini XLR
    Frequency Response 100~15,000 Hz
    Polar Pattern Cardioid
    Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
    Impedance 2.2k?
    Max. SPL for 1% THD 130dB
    Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
    Net Weight 21.5g
