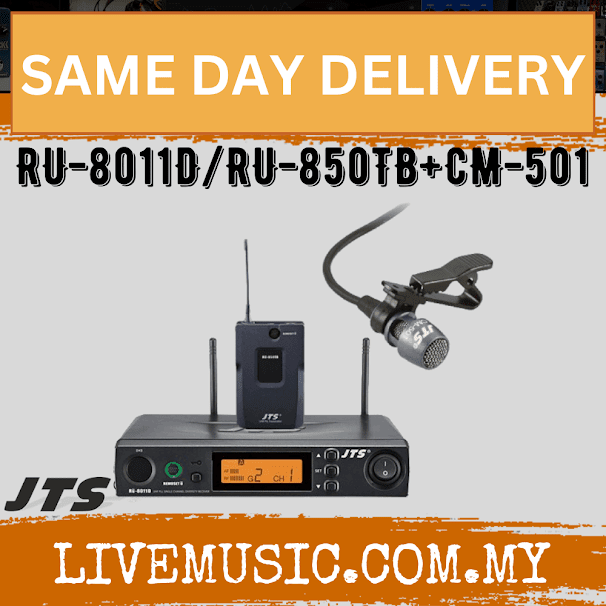

JTS RU-8011D/RU-850TB+CM-501 UHF single channel PLL diversity receiver with Plastic Body-pack transmitter + lavaliere microphone

Description

Based on US-8001 successful experience, RU-8011 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting REMOSET U
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 60Hz~15KHz±2dB
Antenna Type Fixed Antenna
Antenna Booster Power None
Display LCD
Display Contents Group, Channel, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan,
Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Mute Display, Frequency Scan (ON/OFF), Key Lock,
Volume, Output Attenuation (XLR)
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
?6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ? -24dBV(MIC)
Audio Output Impedance 600?
Squelch Pilot Tone & Noise Mute
Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
Power Supply DC12~15V/300mA
Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)
Notes

Acutal product specifications may vary depending on region



 This innovative bodypack transmitter is designed with Power/Mute button only. All adjustments and settings are carried out at receiver side and the transmitter will be set by patent pending REMOSET U. The settings include Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel.

Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This
will save battery life and avoid over discharge. To cope with music instruments a pad of -20 dB
is designed in this bodypack transmitter.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LED
Input Connector 4P Mini XR
Controls Power, Mute
Battery

UM3, AA x2



 * Uni-direction for high-quality voice pick-up.
* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.



Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
Impedance 2.2k?
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g

JTS RU-8011D/RU-850TB+CM-501 UHF single channel PLL diversity receiver with Plastic Body-pack transmitter + lavaliere microphone

Product form

RM1,190.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: RU-8011D/RU-850TB+CM-501

    Same Day Delivery via Lalamove
