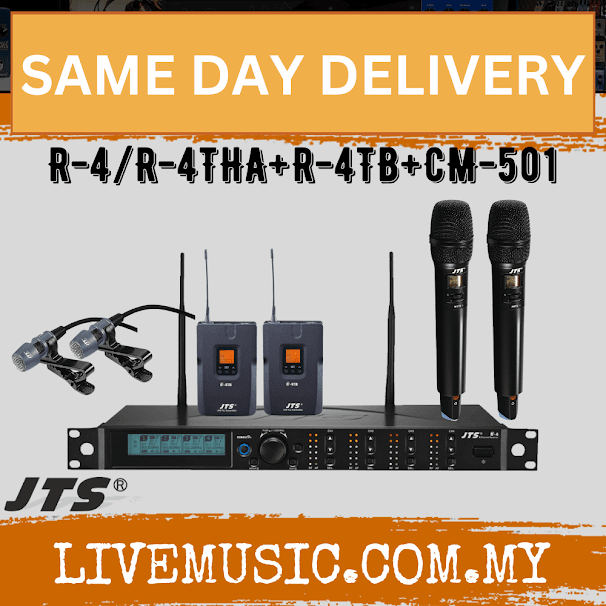

JTS R-4/R-4THA*2/R-4TB+CM-501 UHF 4 channel diversity system (2x Aluminium Handheld transmitter ; 2x Plastic Body-pack transmitter + lavalier microphone)

Description

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Adjustable transmission power between Low and High
NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18kHz
Battery UM3, AA x2
Capsules Module  Interchangeable
Dimensions 50(W) x 253(H) x 35.5(D)
Weight 350g
Notes

Actual product specifications may vary depending on model and region



R-4TB

* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between
Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Plastic
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 62.3mm (W) x97.5mm (H) x20mm (D)
Weight 75g
Notes Actual product specifications may vary depending on model and region.

 CM-501

* Uni-direction for high-quality voice pick-up.
* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.



Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
Impedance 2.2k?
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g

JTS R-4/R-4THA*2/R-4TB+CM-501 UHF 4 channel diversity system (2x Aluminium Handheld transmitter ; 2x Plastic Body-pack transmitter + lavalier microphone)

Product form

RM6,980.00
