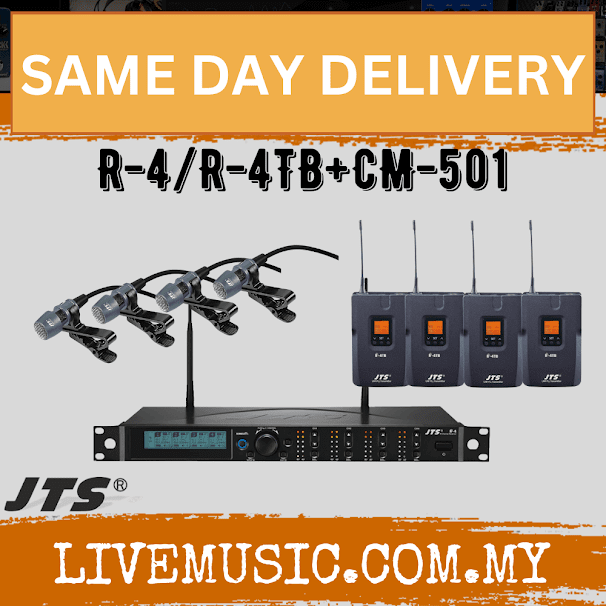

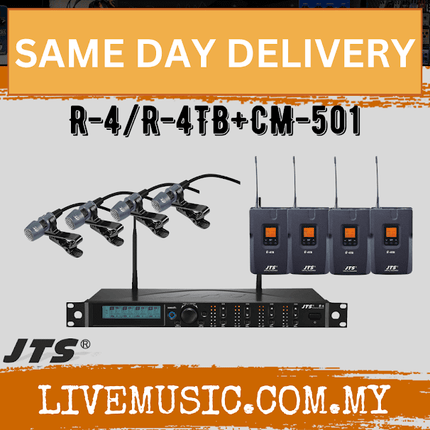

The JTS R-4-RACK-4TB is a 19” rack/flight case featuring an R-4 UHF PLL Quad channel diversity wireless receiver, four R-4TBM bodypack transmitters and a 2U rack draw. The receiver features REMOSET which enables the transmitters and receiver to wirelessly sync frequencies in under a second with the push of a button. The antenna outputs and AC can be cascaded to enable multiple receivers to be connected together.

This system also features four JTS R-4TBM bodypack transmitters featuring adjustable RF output, aluminium alloy chassis and a large LCD display screen showing low battery and user name. REMOSET ID Pairing is also built into this device for easy pairing with the R-4 receiver.

The heavy-duty rack provides protection of the complete system during transit.

Please Note. This system is available in two frequency bands: 606.5-638MHz includes Channel 38 and is the most reliable solution for portable wireless microphone systems in the UK and requires a licence (www.ofcom.org.uk). 823-865MHz includes Channel 70 (863-865MHz) which can be operated licence-free in the UK and Europe.

Features

19” flight case to store and protect system
Integrated storage drawer
Suitable as a portable system
REMOSET synchronisation
Pilot tone and noise mute
Integrated antenna distribution
4 Independent XLR outputs and 1 XLR for mixed output

Delivery Includes

1 R-4 diversity receiver
4 R-4TBM bodypack transmitters
1 flight case

Technical Data

R-4 diversity receiver
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 823-865MHz (CH70 863-865MHz licence free)/ 606.5-642 MHz (CH38 606-614 MHz licence required)
S / N Ratio: > 105dB
T.H.D:    <0.6% @ 1KHz
Display Contents: Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR), Battery Status
Controls: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Level: -12dB
AF Output Impedance: 600?
Squelch: Pilot Tone & Noise Mute
Operation Voltage: 100 ~ 240V
Output Connector: 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
Dimension (WxHxD): 212.3 x 38.3 x 144mm
R-4TBM bodypack transmitter
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 823-865MHz (CH70 863-865MHz licence free)/ 606.5-642 MHz (CH38 606-614 MHz licence required)
RF Outputs: Low / High
Stability: < ±10KHz
Frequency Deviation: ± 48KHz (Peak)
Chassis: Aluminium alloy
LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls: Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Input Connector: 4P Mini XLR
Spurious Emissions: <-50 dBC
Audio Frequency Response: 50Hz ~ 18k Hz
Battery: UM3, AA x2
Dimensions (WxHxD): 62 x 80.3 x 22.6mm
Weight: 93g
