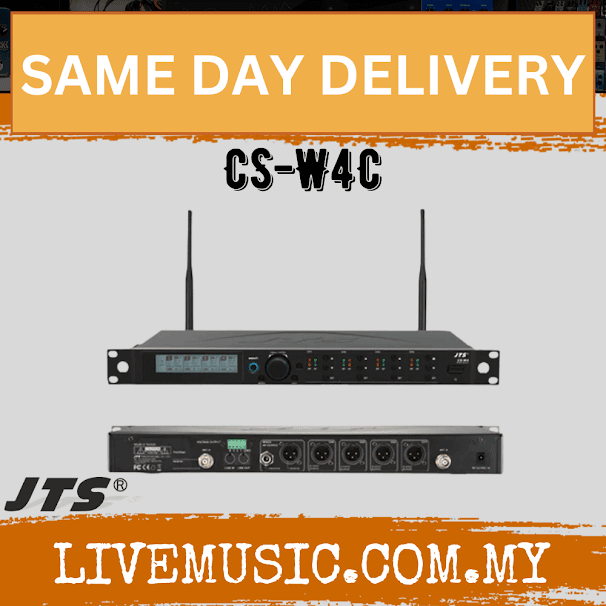

JTS CS-W4C Conference Wireless Gooseneck Microphone System - Receiver Only ( CSW4C / CS W4C )

Description

CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. Logic setting of one CS-W4C receivers can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones is of 108 MHz bandwidth. This feature allows more attendants to join the conference.
SPECIFICATIONS
  • Frequency Preparation : PLL Synthesized Control
  • Carrier Frequency Range : 470~960 MHz / 502.000 - 694.000 MHz (T band)
  • Frequency Setting : 2.4G RF REMOSET
  • Channel : 4
  • Bandwidth : 36MHz
  • S/N Ratio : >105dB(A)
  • T.H.D : <0.6%@1KHz
  • Sensitivity : -95dBm, S/N>80dB
  • CMRR : >80 dB
  • Audio Frequency Response : 80Hz~16KHz±2dB
  • Antenna Connector : BNC (Female)
  • Antenna Booster Power : DC12V/100mA
  • Display : LCD+LED
  • Controls : Power ON/OFF, Group, Channel, Frequency, Sensitivity, Key Lock, Volume, Output
  • Attenuation(XLR), Frequency Scan(ON/OFF), Antenna Power, Display Setting, Language,
  • Remoset ID Number, Reoset Setting, Priority Setting
  • Audio Output Level : Ref: ±22.5KHz Dev@1KHz Tone | ?6.3 Phone Jack: -10dBV | XLR Jack: -4dBV(Line), -24dBV(MIC)
  • Audio Output Level : 600?
  • Squelch : Pilot Tone & Noise Mute
  • Output Socket : XLR Balanced Socket x5, ?6.3mm Unbalanced x1
  • Automixer Control : 8PIN MINI DIN Input, 8 PIN MINI DIN Output
  • Power Supply : DC12~15V/1A
  • Dimension(mm) : 485(W) x 45(H) x 260(D)
  • Note : Actual Product specifications may vary depending on model and region

Dimension Packaging Weight : 1.2 kg
