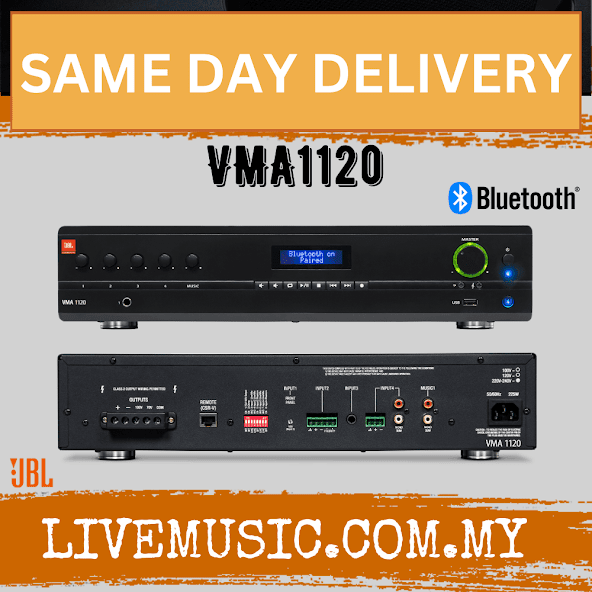

FEATURES
• Independent bass and treble controls for each output channel
• 100V and 70V output, or 4?/8?
• Paging Chime, and Priority muting
• Works with JBL CSR-V wall controllers
• Balanced mic/line inputs; RCA (.775V) inputs
• Rack mounting hardware included
SPEICFICATIONS
Max Output Power per Channel |
into 4 ? or 8 ?; 1kHz, ? 0.5% THD - VMA160: 60W VMA1120: 120W VMA1240: 240W |
Insertion Loss |
(70V & 100V outputs) 1dB maximum |
Number of Inputs |
5 |
Number of Outputs |
1 |
Tone Controls |
(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz |
Input Sensitivity |
(to obtain full rated power into 8 ? load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS |
Frequency Response |
(measured at 2.83VRMS into rated load impedance at any output) 4/8 ? Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB |
Total Harmonic Distortion (THD) |
(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz |
Signal to Noise Ratio |
(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB |
Input Impedance |
(nominal) Mic: 400 ? Line: 20 k? (balanced) RCA: 50 k? |
Phantom Power |
27VDC |
Crosstalk |
(reference rated power, volume at mid position, 1kHz) -70 dB |
Nominal AC Line Voltages |
100V, 120V, 220V, 220-240V, 50/60 Hz |
Minimum Load Impedance |
(Low Impedance Output, 70V Output, 100V Output) VMA160: 4 ?, 80 ?,160 ? VMA1120: 4 ?, 40 ?, 80 ? VMA1240: 4 ?, 20 ?, 40 ? |
Operating Temperature/Humidity |
0°C to 35°C @ 95% R.H. (non-condensing) |
Storage Temperature |
-20°C to 85°C |
Net Weight |
VMA160: 19.4 lb (8.8 kg) VMA1120: 20.2 lb (9.2 kg) VMA1240: 25.5 lb (11.6 kg) |
Dimensions |
Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm) |
Shipping Weight |
VMA160: 24.6 lb (11.2 kg) VMA1120: 25.5 lb (11.6 kg) VMA1240: 30.8 lb (14 kg) |
