UNO Synth is the ultimate portable, monophonic, true analogue synthesizer and IK Multimedia’s entry in the hardware synthesizer world. IK Multimedia combined their two decades of experience in software and hardware development with the expertise of Italian boutique synth-maker Sound machines and IK’s synth guru, Erik Norlander (one of the brains behind acclaimed synths like the Alesis Andromeda). The result is a no-compromise instrument with a massive analogue sound that’s also easy to use with hands-on programmability and advanced features at an unbeatable price.

Seasoned synth professionals and beginners alike will love UNO Synth’s high-quality, pure analogue audio path and its ultra-compact form factor. With both classic and modern synth sounds instantly at hand, UNO will put a smile on the face of synth fans of every musical genre.

FEATURES

• Portable monophonic analog synthesizer
• All-analog signal path with self-tuning oscillators
• 2 independent analog oscillators with saw, triangle, and pulse waves
• Oscillator waveforms are continuously variable
• Osc section also includes pulse-width modulation and white noise generation
• 2-pole multimode resonant filter offers LPF, HPF, and BPF modes
• AD envelope for filter, AR envelope for amplitude, and full ADSR control via MIDI CC or software editor
• LFO with saw, square, triangle, sine, random, and sample-and-hold waveforms for modulating pitch, filter, or amp
• 40 controls at your fingertips, with 4 encoders combined with function buttons
• Multi-touch 27-note chromatic keyboard with 13 selectable scale modes
• Built-in delay effect plus 5 performance effects
• 10-mode, 4-octave arpeggiator
• 16-step sequencer with real-time recording and step editing

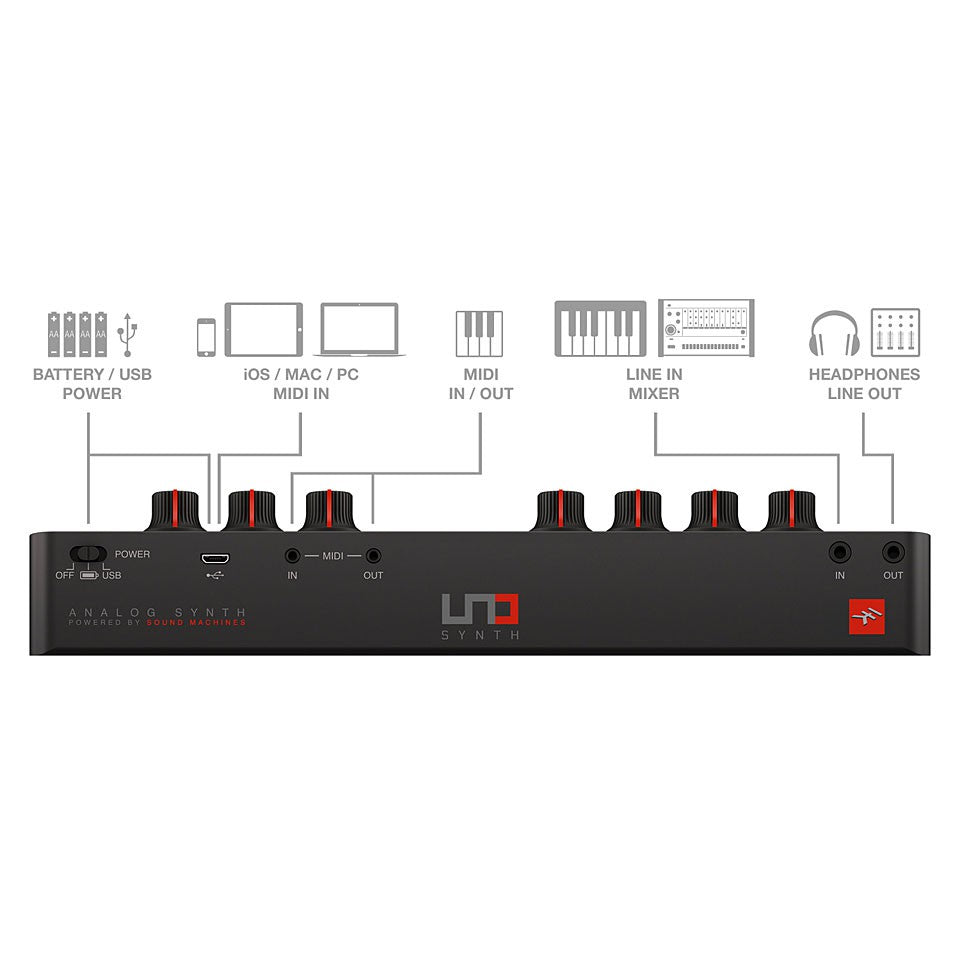

• Audio input for daisy-chaining other synths modules, drum machines, etc.
• Software editor/librarian for Mac/PC makes it easy to create and save custom sounds
• Complete MIDI implementation — all parameters and clock can be controlled via external MIDI CC
• Powered via USB or 4 x AA batteries

SPECIFICATIONS

• Type:Synthesizer
• Analog/Digital:Analog
• Type of Keys:27 x Keypads
• Polyphony:Monophonic
• Presets:100 Presets (20 factory non-writable, 80 user)
• Oscillators:2 x Analog VCO
• Waveforms:Saw, Triangle, Pulse with Variable Pulse Width
• Noise Generator:Yes
• Envelope Generator:2 x EG (filter, amplitude)
• LFO:Saw, Square, Triangle, Sine, Random, Sample & Hold
• Filter:2-pole Resonant Multimode Filter
• Effects Types:Sync Delay, Dive, Scoop, Vibrato, Wah, Tremolo
• Arpeggiator:10 Mode, 4-octave
• Sequencer:16-step Sequencer, Real-time step recording with parameter recording
• Analog Inputs:1 x 1/8" (audio in)
• Analog Outputs:1 x 1/8" (audio out)
• MIDI I/O:2 x 1/8" (In, Out)
• USB:1 x Type Micro-B
• Software:Editor/Librarian (Mac/PC)
• Power Supply:USB bus powered / 4 x AA batteries
• Height:1.93"
• Width:10.1"
• Depth:8.9"
• Weight:0.88 lbs.
