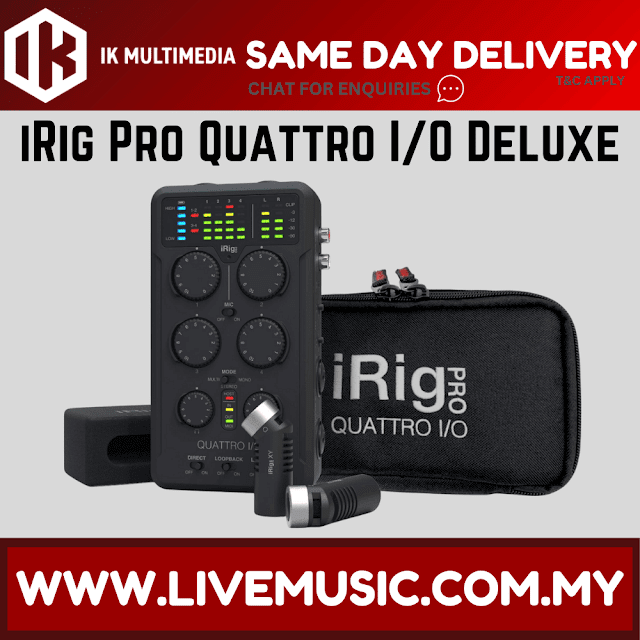

Audio Quality Without Compromise, Wherever You Go

• Up to 24-bit / 96 kHz digital audio
• 4 ultralow-noise mic preamps with full +48v phantom power
• Asynchronous USB for ultralow conversion jitter
• Built-in limiter on input 1 and 2
• Multitrack, stereo, or mono internal mixdown to fit any field situation

Comprehensive Input and Output Options

• Two balanced combo mic preamps / unbalanced Hi-Z instrument inputs (with 48V phantom power)
• Two balanced combo mic preamps / balanced line-level inputs (with 48V phantom power)
• Stereo RCA and stereo 3.5mm line inputs
• Two balanced XLR line outputs
• 3.5mm stereo line output
• 3.5mm headphone jack
• Built-in omnidirectional microphone
• Two 2.5mm MIDI input and output

Streaming/Podcast Interface with Loopback Mode

• Enable The Stereo mode and iRig Pro Quattro I/O mixes all sources down to stereo for streaming or recording to an iOS/Andoid mobile device or Mac/Windows computer. Monitoring is easy thanks to a dedicated headphone output with independent volume control and direct monitoring. Or, use Mono mode for streaming to social media.
• The Loopback function lets you send the signal playing on your device back into the recording or streaming app being used. This allows you to send your video playback, mouse clicks, web browser output, etc., straight into your live stream, podcast, or video recording.

Audio Interface for Field Recording with Your Mobile Device

• With an onboard omnidirectional microphone and included X-Y stereo, unidirectional mic capsules, iRig Pro Quattro I/O turns your mobile device into a full-featured, professional field recorder.

Standalone Mixer with DSLR/Mirrorless Cameras

• The iRig Pro Quattro I/O can be used as a standalone preamp and mixer: just power it via USB, batteries, or the included PSU adapter, and use the full set of inputs/outputs to capture professional audio on your DSLR camera.

Clean Audio with Safety Backup Channels

• When the unit is set to Stereo or Mono mode, channels 3 and 4 are used as safety channels: this means that it is possible to send the same signal present on channels 1 and 2 to channel 3 and 4, but reduced by 12 dB as a distortion-free backup in case the sound source gets loud unexpectedly.

Other Features

• Compatible with iOS / Android mobile devices, macOS / Windows computers, DSLR/mirrorless cameras
• Runs off USB power, 4 AA batteries, or included PSU adapter (also charges your iOS device)
• Battery life: 1.5 hours of recording (3 hours with NiMH rechargeable batteries), 2.5 hours of playback (4 hours with NiMH rechargeable batteries)
• Built-in shoemount adapter for mounting on a camera
• 1/4"-20 bottom thread for mounting on a camera tripod
