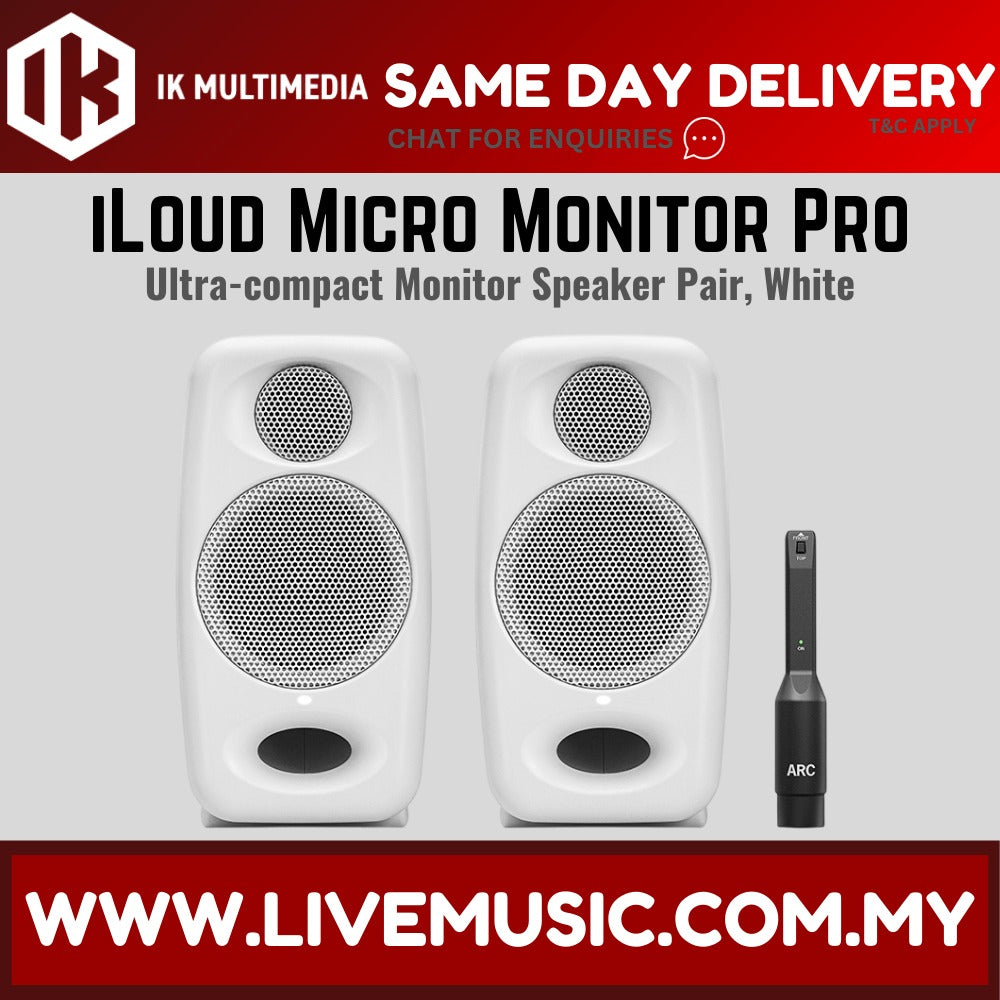

Type 2-way bi-amped, digitally controlled compact studio monitor
LF Driver 3? composite cellulose fibre, custom-made mid-woofer
HF Driver 1? low-distortion silk-dome tweeter
Acoustic Design DSP-tuned bass reflex
Amplifier type High-efficiency Class-D
Total Power 50 W RMS
LF Power 30 W RMS
HF Power 20 W RMS
Crossover Type Digital, Linear Phase
Crossover Frequency 2.5 kHz
Frequency Response 50 Hz to 20 kHz ± 2dB, 42 Hz to 22 kHz @ -10dB
Phase Response System remains coherent within +/- 30° from 500 Hz to 20 kHz
Sensitivity (XLR) -10 dBu signal generates 90 dB SPL @ 1 m
Sensitivity (RCA) -22 dBu signal generates 90 dB SPL @ 1m
Continuous Max. SPL 94 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
Peak SPL 107.3 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
Peak SPL 109.3 dB (half space, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
Placement setup Manual switches for LF Extension, LF trim, HF trim, Desk position
LF Extension Switch Sets -3 dB point of the frequency response at 50 or 80 Hz (LFE)
LF Switch Low shelf, +2 dB or -3 dB from 100 Hz down
HF Switch High shelf, +2 dB or -2 dB from 8 kHz up
Desk Switch -3 dB at 250 Hz and +4 dB at 1.2 kHz
Calibration Fully automatic and built-in digital calibration
Total Latency (TOF) 3.00 ms
Connectors 1 x XLR balanced input, 1 x RCA unbalanced input, 1 x USB type-C, C8 power socket
Power requirement 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 1 A max
System Requirements macOS® 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors), Intel® Core i5 Processor or equivalent/newer
Includes One pair - iLoud Micro Monitor Pro speaker, Power cord, USB-A to USB-C cable, 1.5 m (4.92 ft), One - ARC Microphone, One - ARC Microphone clamp
Dimensions 106 mm (4.17?) x 206 mm (8.11?) x 158 mm (6.22?)
Weight 1.37 kg (3.02 lb.)
