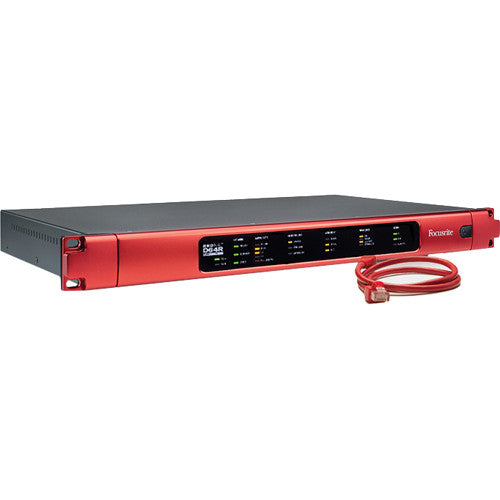

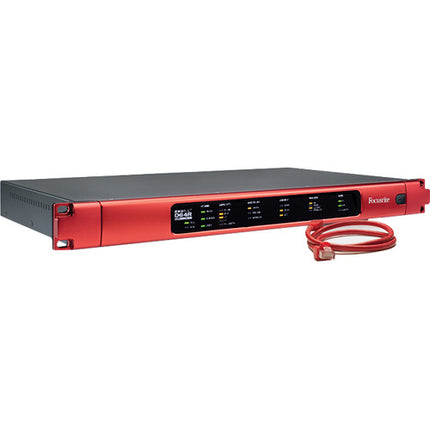

The RedNet D64R 64-Channel MADI-Dante Bridge from Focusrite allows large-scale digital systems, such as audio consoles and conversion systems, to send multiple channels of audio over a single interface. RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet's high-quality interface products with a MADI system, or MADI components with a Dante system.

D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. A Dante network can be connected to MADI-based digital consoles, computer cards, converters, and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.

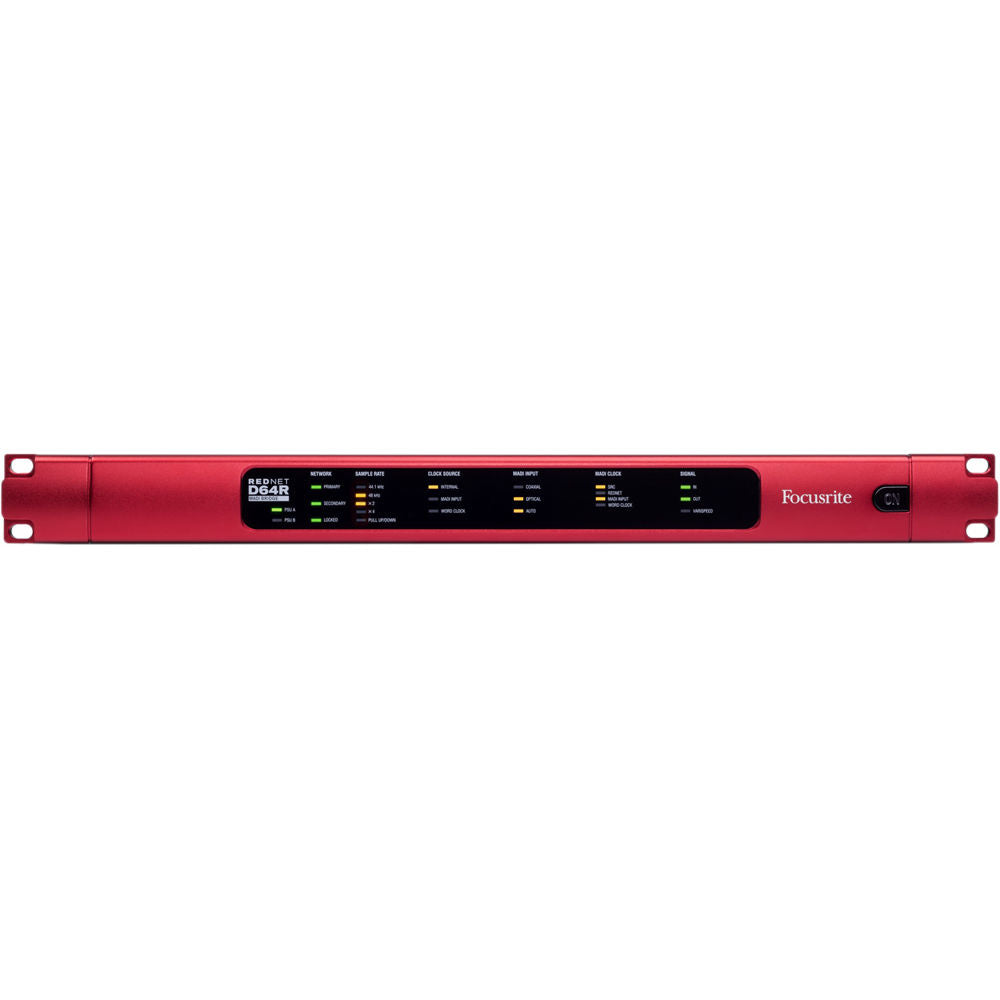

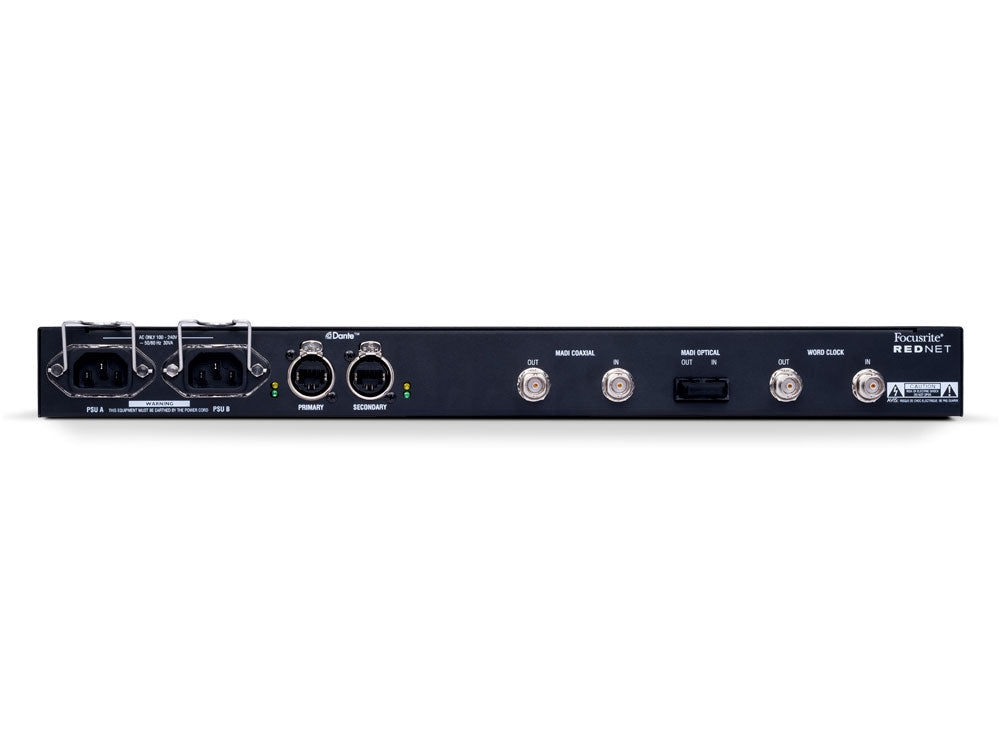

Dual Ethernet ports are provided, with locking etherCON connectors and several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (including retaining clips) on the rear of the unit. Power status is indicated both remotely and on the front panel.

FEATURES

• Connects a MADI system and a Dante network seamlessly together. Connect Dante to digital mixing consoles, interfaces, and cards that use MADI; or extend a MADI system with RedNet's versatile, high-quality audio interfaces and connectivity – or any other Dante compatible devices.
• Built-in redundancy with dual locking power and etherCON network connectors
• Supports both coax and optical interfaces – connect simply to any MADI equipment
• Slave either the Dante system or MADI streams to an external clock
• Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48 kHz) from a MADI system, 32 channels at 96 kHz, and 16 channels at 192 kHz.
• Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.
• Operates at standard sample rates between 44.1 kHz and 192 kHz
• D64R fully supports the MADI varispeed (56-channel) mode
• Compact 1U form factor rack-mount module with the classic red aluminum faceplate
• RedNet Control and Dante software allows remote routing and control from the audio computer system via a software control panel – no hardware patching required.
