Description

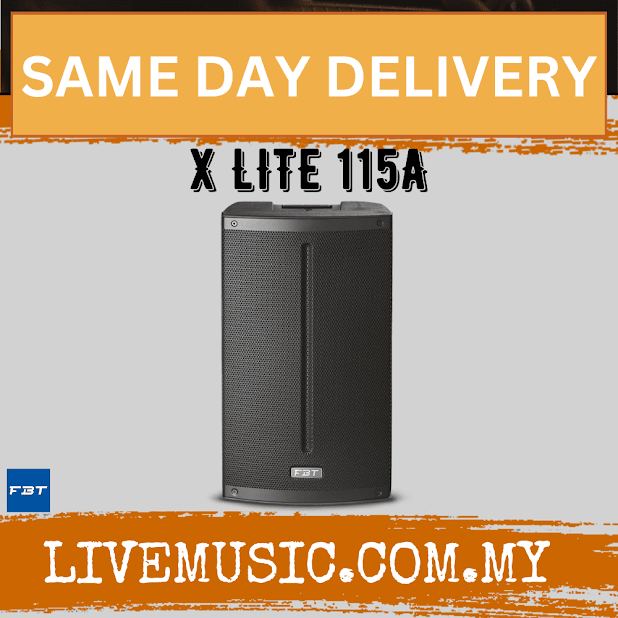

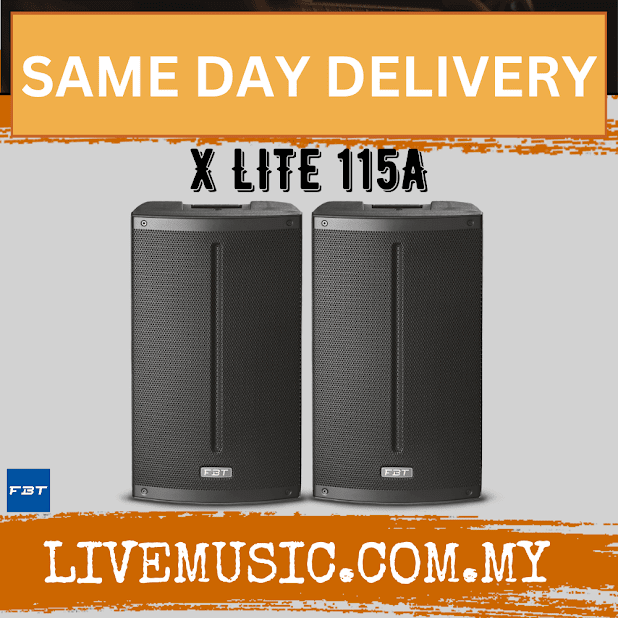

The FBT X-LITE 115A is a two-way design incorporating a 15” low-frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 42Hz - 20kHz the FBT X-LITE 115A speaker provides high-fidelity sound for both speech and music applications with a maximum SPL of 130dB. The bi-amplified FBT X-LITE 115A active speaker features a 1200W low-frequency and 300W high-frequency amp. The control panel features a three-channel mixer with two micro-line inputs, stereo input and a dedicated channel for Bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, hp filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT X-LITE 115A speaker to be surface mounted on walls or ceilings.
The asymmetrical shape of the FBT XLITE 115A cabinet also allows for use as a powered floor stage monitor.
A standard 1.38” speaker stand socket allows the FBT X-LITE 115A to be mounted on the speaker stand.
KEY FEATURES
2-way bi-amplified system in a bass reflex
Polypropylene moulded enclosure
Woofer custom 15” (LF) / 2.5” voice coil
1” throat / 1,4” voice coil HF compression driver
1200/300W built-in amplifier (LF/HF)
Bluetooth 5.0
3-channels mixer
4 DSP presets
30° or 45° monitor taper
Universal switching mode power supply 100-240Vac
M10 rigging points
TECHNICAL SPECIFICATIONS
CONFIGURATION:2 way
BUILT-IN AMPLIFIER LF/HF:1200/300 W
FREQUENCY RESPONSE:42Hz - 20KHz
LOW FREQUENCY WOOFER:15- 2.5 coil
HIGH FREQUENCY DRIVER:1 - 1.4 coil
MAXIMUM SPL CONT/PEAK:125/130 dB
DISPERSION:90°x60°
INPUT IMPEDANCE:22 kOhm
INPUT CONNECTOR:XLR IN/OUT, JACK ST
POWER CORD: 3 m
NET DIMENSION (WXHXD):17,04 x 27,81 x 15,74 / 433 x 706,5 x 400
Weight: 19.3 Kg
