Description

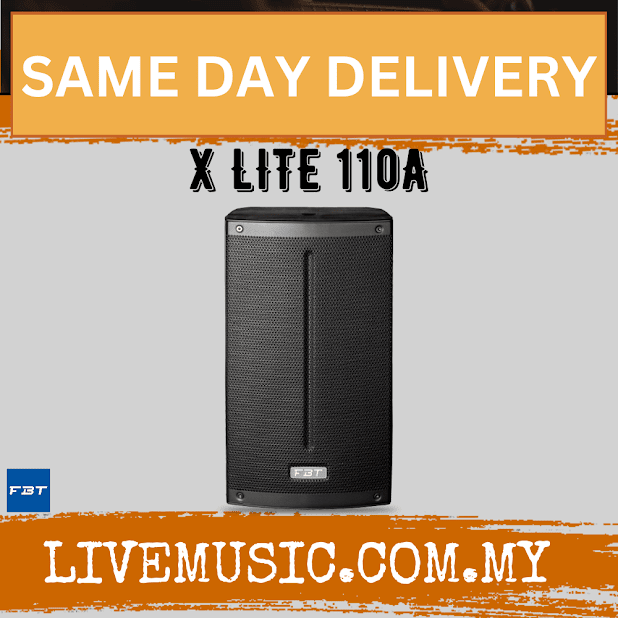

The FBT XLITE 110A series speakers with integrated 3-channel mixer feature lightweight, yet rugged gas-injected moulded polypropylene cabinet construction. Available in a black finish, the FBT XLITE 110A series speakers provide fixed installations with an elegant design that blends into any decor.
The asymmetrical shape of the FBT XLITE 110A cabinet also allows for use as a powered floor stage monitor.
The FBT XLITE 110A is a two-way design incorporating a 10” low-frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 58Hz - 20kHz the FBT XLITE 110A speaker provides high-fidelity sound for speech and music applications with a maximum SPL of 127dB.
The bi-amplified FBT XLITE 110A active speaker features a 1200W low-frequency and 300W high-frequency amp. The control panel features a three-channel mixer with two micro-line inputs, stereo input and a dedicated channel for Bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 110A speaker to be surface mounted on walls or ceilings.
A standard 35mm speaker stand socket allows the FBT XLITE 110A to be mounted on a speaker stand
KEY FEATURES
2-way bi-amplified bass reflex system
Polypropylene moulded enclosure
Custom 10" woofer (LF) / 2.5" voice coil
1" throat / 1.4" voice coil HF compression driver
1200w / 300w Built-In amplifier (LF / HF)
Bluetooth 5.0
3-Channel mixer
4 DSP Presets
30 degrees & 45 degrees monitor tapers
Universal switch mode power supply 100-240 VAC
M10 rigging points
SPECIFICATIONS
Configuration: - 2 Way
Frequency response: - 58Hz - 20KHz
Low-frequency woofer: - 10" - 2.5" VC
High-frequency driver: - 1" - 1.4" VC
Maximum SPL cont/peak: - 123/127 dB
Dispersion: - 90 x 60
Input impedance: - 22
Input connector: - XLR IN/OUT
Net Dimension (WxHxD): - 300 x 536 x 301.5
Net Weight: - 13 KG
Transport Dimension (WxHxD): - 370 x 615 x 380
Transport Weight: - 14.8 KG
Built-in amplifier peak: - LF 1200w HF 300w
