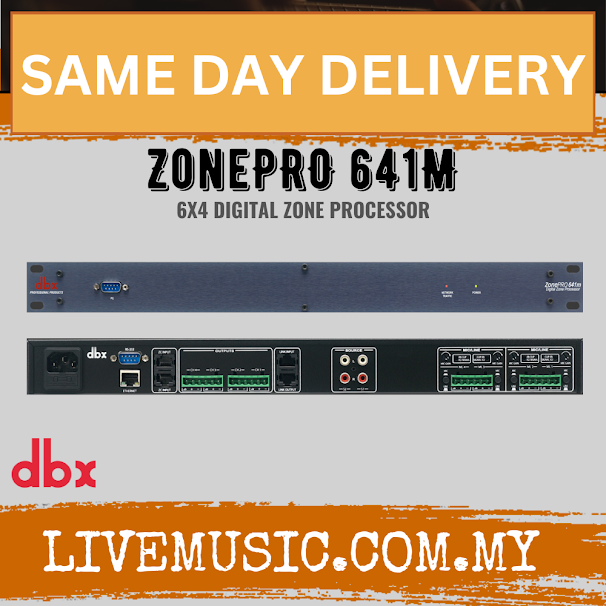

The ZonePRO 641m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

The 641m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information). ZonePRO Designer—the configuration, control and monitoring software for the ZonePRO family of devices—offers control of the ZonePRO 641m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-by-step configuration process of the 641m.

Features
6 Inputs / 4 Outputs
4 Balanced Mic/Line Inputs
2 Unbalanced, Mono-Summed RCA Input Pairs
Microphone Gain per Channel
Pre-Configured Architecture
Two Configurable Input Insert Positions
One Configurable Output Insert Position
AutoWarmth® per Output Zone
Link Bus
Optional ZC Controllers
Ethernet Control
Serial Control
Third Party Control
Wizard-Driven Configuration
