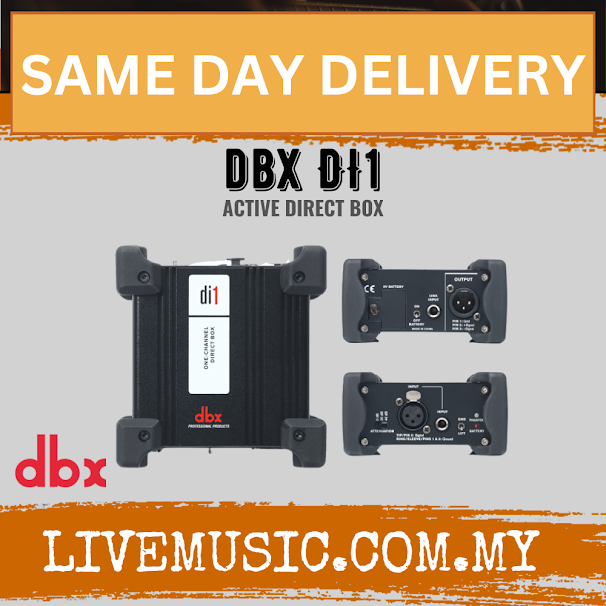

Dbx By Harman Di1 Active Direct Box ( DbxDi1 / Dbx Di1 )

Description

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.





Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.





Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.





Features

  • Level and impedance matching function
  • Output impedance: > 600 Ohms
  • Signal pass through connector
  • Output connector: XLR balanced
  • Battery LED indicator
  • Distortion: (THD) < 0.005% at 1kHz, 0dBu
  • Phantom power LED indicator
  • Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Output Noise: <-100dB unweighted
  • TS and XLR inputs and outputs
  • Frequency response: 10Hz to 70kHz, +0dB/-3dB
  • Attenuation control
  • Phantom Power: +18 volts DC to +48 volts DC
  • Ground lift switch
  • Main/Standby: 9V battery
  • Input Impedance: >250k Ohm
  • Metal Chassis

Dbx By Harman Di1 Active Direct Box ( DbxDi1 / Dbx Di1 )

Product form

RM378.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: Di1

    Same Day Delivery via Lalamove

    Description

    The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.





    Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.





    Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.





    Features

    • Level and impedance matching function
    • Output impedance: > 600 Ohms
    • Signal pass through connector
    • Output connector: XLR balanced
    • Battery LED indicator
    • Distortion: (THD) < 0.005% at 1kHz, 0dBu
    • Phantom power LED indicator
    • Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
    • Output Noise: <-100dB unweighted
    • TS and XLR inputs and outputs
    • Frequency response: 10Hz to 70kHz, +0dB/-3dB
    • Attenuation control
    • Phantom Power: +18 volts DC to +48 volts DC
    • Ground lift switch
    • Main/Standby: 9V battery
    • Input Impedance: >250k Ohm
    • Metal Chassis
